Quick Details
-
Filling of Capacitor:
-
Castor Oil
-
Lead Out:
-
Wires or Tabs for Capacitor
-
Can:
-
Aluminum Case, Metal case
-
Application:
-
Air conditioner, refrigerators, compressor, Single Phase AC motor
-
Package / Case:
-
Cartons/Pallets
-
Reference standards:
-
GB/T3667
-
Capacitance:
-
1uF - 100uF, 1~100UF
-
Tolerance:
-
+/-5%
-
Rated Voltage:
-
450VAC
-
Operating Temperature:
-
40/85/21
-
Description:
-
capacitor
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Zhongrong
-
Model Number:
-
CBB65 Capacitor
-
Filling of Capacitor:
-
Castor Oil
-
Lead Out:
-
Wires or Tabs for Capacitor
-
Can:
-
Aluminum Case, Metal case
-
Application:
-
Air conditioner, refrigerators, compressor, Single Phase AC motor
-
Package / Case:
-
Cartons/Pallets
-
Reference standards:
-
GB/T3667
-
Capacitance:
-
1uF - 100uF, 1~100UF
-
Tolerance:
-
+/-5%
-
Rated Voltage:
-
450VAC
-
Operating Temperature:
-
40/85/21
-
Description:
-
capacitor
CBB65 capacitor for motor en60252
CBB65 Single Phase Capacitor details:
1. CBB65 Capacitor is widely applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency power.
2. This capacitor is used for air conditioner, refrigerators, compressor,etc.
3. It is a explosion-proof capacitor, so the capacitor is more safer.
4. This capacitor has self-healing property, high stability and reliability.
Technical Data for CBB65 Single Phase Capacitor:
|
Product type |
Polypropylene Film Capacitor |
|
Climatic category |
40/70/21, 40/85/21 |
|
Class of operation |
Class B(10,000H), Class C(3000H),ClassA(30,000H) |
|
Class of safety protection |
P2/P1 |
|
Voltage range |
100-660VAC |
|
Capacitance range |
2-120μF |
|
Capacitance tolerance |
±5% or according to customers' requests |
|
Rated frequency |
50Hz/60Hz |
|
Dissipation factor |
20X10-4(100Hz,20℃ ) |
|
Test voltage between terminal |
2Un for 2seconds |
|
Test voltage terminal to case |
(2Un +1000)VAC or 2000VAC - 50Hz for 60seconds |
|
Insulation Resistance |
≥ 3000MΩ.μF (100Hz, 20℃, 60seconds ) |
CBB65 Capacitor Outline Drawing
The size information of CBB65 AC Motors Capacitor
|
Numbers |
Air Conditioner Capacitor Specifications |
Air Conditioner Capacitor |
|
1 |
Capacitor CBB65 450VAC 1-9uF |
Φ40*60 |
|
2 |
Capacitor CBB65 450VAC 10uF |
Φ40*70 |
|
3 |
Capacitor CBB65 450VAC 15uF |
Φ45*70 |
|
4 |
Capacitor CBB65 450VAC 20uF |
Φ45*75 |
|
5 |
Capacitor CBB65 450VAC 25uF |
Φ50*85 |
|
6 |
Capacitor CBB65 450VAC 30uF |
Φ50*100 |
|
7 |
Capacitor CBB65 450VAC 35uF |
Φ50*100 |
|
8 |
Capacitor CBB65 450VAC 40uF |
Φ50*100 |
|
9 |
Capacitor CBB65 450VAC 45uF |
Φ50*100 |
|
10 |
Capacitor CBB65 450VAC 50uF |
Φ50*125 |
|
11 |
Capacitor CBB65 450VAC 55uF |
Φ50*125 |
|
12 |
Capacitor CBB65 450VAC 60uF |
Φ50*125 |
|
13 |
Capacitor CBB65 450VAC 65uF |
Φ55*125 |
|
14 |
Capacitor CBB65 450VAC 70uF |
Φ55*125 |
|
15 |
Capacitor CBB65 450VAC 80uF |
Φ60*125 |
|
16 |
Capacitor CBB65 450VAC 90uF |
Φ60*125 |
|
17 |
Capacitor CBB65 450VAC 100uF |
Φ63.5*125 |
Note: Other specifications, size and terminal outside table are negotiable.

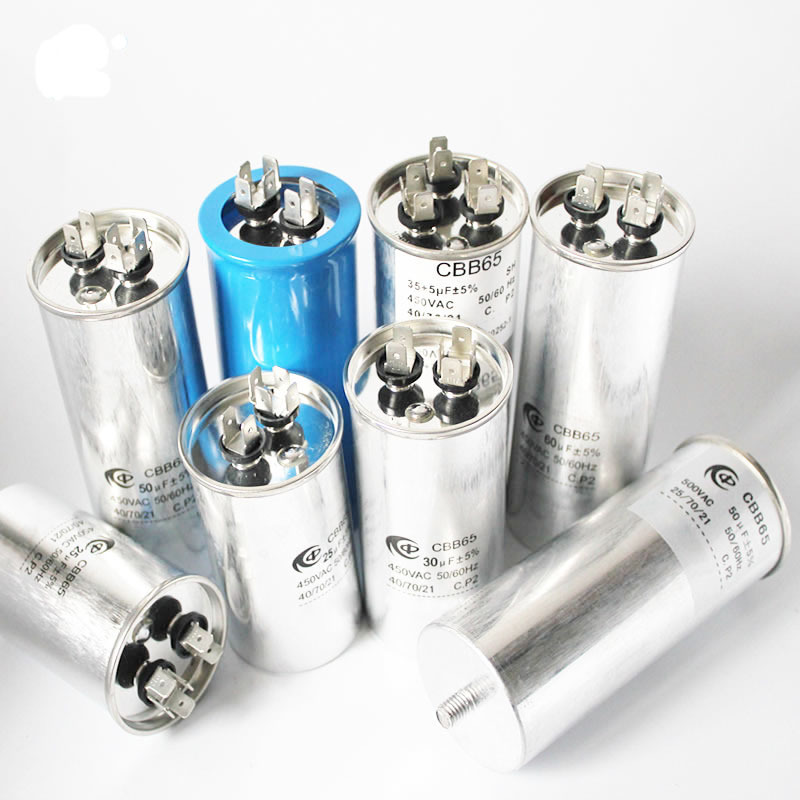

Different kinds of CBB65 Air conditioner capacitors:
CBB65 Capacitor Factory:
If any questions, please contact us with no hesitates!
Welcome to visit our website: http:// www.anhuizr.com
