- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380v or as clients request
-
Power:
-
160kw
-
Dimension(L*W*H):
-
8500*2200*2200MM
-
Weight (KG):
-
15000
-
Name:
-
Wood Crusher Machine
-
Keywords:
-
Wood pallet crusher, wood shredder machine
-
Raw material:
-
Wasted wood pallet,tree bark,slabs,off cuts,branches,straw etc
-
Application:
-
Making wood chips and generate electricity
-
Processing Wood Diameter:
-
200mm-500mm
-
Feeding Inlet:
-
1600mm*600mm
-
Production capacity:
-
10-30 Tons/Hour
-
Blade Roll Speed:
-
850RPM
-
Quantity of blade:
-
2 groups/4pcs
-
Power Type:
-
Electric or diesel engine
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Sawmill-world
-
Core Components:
-
machine
-
Voltage:
-
380v or as clients request
-
Power:
-
160kw
-
Dimension(L*W*H):
-
8500*2200*2200MM
-
Weight (KG):
-
15000
-
Name:
-
Wood Crusher Machine
-
Keywords:
-
Wood pallet crusher, wood shredder machine
-
Raw material:
-
Wasted wood pallet,tree bark,slabs,off cuts,branches,straw etc
-
Application:
-
Making wood chips and generate electricity
-
Processing Wood Diameter:
-
200mm-500mm
-
Feeding Inlet:
-
1600mm*600mm
-
Production capacity:
-
10-30 Tons/Hour
-
Blade Roll Speed:
-
850RPM
-
Quantity of blade:
-
2 groups/4pcs
-
Power Type:
-
Electric or diesel engine
Product Description

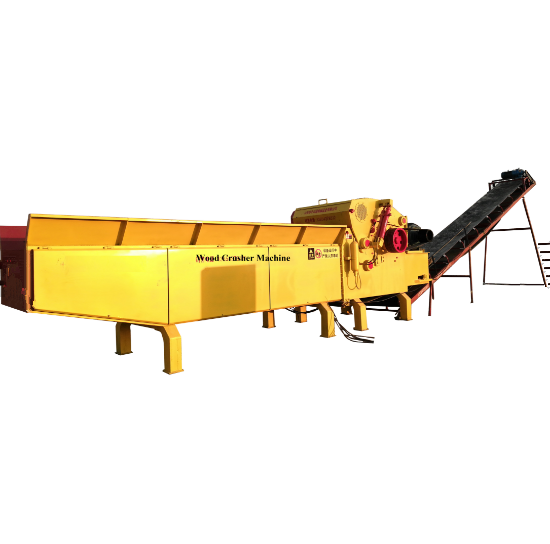

Wood Crusher Machine
--Wood composite crusher is mainly used for building template,wasted wood pallet,Tree bark,Slabs,off cuts,branches,straw and so on.
--Including Host,chain plate,feeding and outlet system,intelligent electrical control.
--Chain Plate Feeding conveyor feeding more freely, no need change the belt all the time.
--Reasonable structure,simple operation,high automatic level,high safety coefficient and production capacity,less manpower,easy maintenance.
--It is the ideal equipment for biomass power generation enterprises.
|
Wood Crusher/Wood Chipper/Waste Pallet Crusher
|
|
|
|
|
||||
|
Model
|
SH800-500
|
SH1300-600
|
SH1400-600
|
SH1600-600
|
||||
|
Feeding Inlet
|
800*500MM
|
1250*600MM
|
1400*600MM
|
1600*600MM
|
||||
|
Blade Roller Diameter
|
850MM
|
850MM
|
850MM
|
850MM
|
||||
|
Blade Roller Speed
|
850RPM
|
850RPM
|
850RPM
|
850RPM
|
||||
|
Production Capacity
|
8-10Tons/Hour
|
12-15Tons/Hour
|
18-20Tons/Hour
|
25-30Tons/Hour
|
||||
|
YG8 Hammer Blade Quantity
|
16
|
20
|
24
|
28
|
||||
|
Knife Blade Quantity
|
2Group/4Pcs
|
2Group/4Pcs
|
2Group/4Pcs
|
2Group/4Pcs
|
||||
|
Max.Processing Diameter
|
300MM
|
450MM
|
450MM
|
450MM
|
||||
|
Motor Power
|
110KW
|
160KW/400HP
|
200KW/400HP
|
250KW
|
||||
|
Wood Chipper Size
|
20-40CM
|
20-40CM
|
20-40CM
|
20-40MM
|
||||
|
Working Life of the Hammer Blades
|
4000T-5000T
|
4000T-6000T
|
4000T-6000T
|
4000T-6000T
|
||||
Diesel Wood Crusher With Mobile Tires
Tree Stump Crusher
|
Model
|
SH3600-1600
|
|
Feeding Inlet Diameter
|
3600MM
|
|
Rotor Shaft Size
|
1600mm*850MM
|
|
Rotor Diameter
|
850MM
|
|
Blade Quantity
|
4
|
|
Production Capacity
|
25-30 TONS/Hour
|
|
Motor Power
|
185KW
|
|
Outlet Conveyor
|
12 Meters
|
Drum Wood Chipper
|
Model
|
SH216
|
SH218
|
|
Blade Roll Diameter
|
650mm
|
800mm
|
|
Blade Quantity
|
2/3PCS
|
2/3PCS
|
|
Feeding Inlet
|
240*540mm
|
310*680mm
|
|
Blade Roll Speed
|
650R/Min
|
650R/Min
|
|
Feeding Speed
|
33M/Min
|
35M/Min
|
|
Max Processing Wood Diameter
|
240mm
|
330mm
|
|
Wood Chip Length
|
20-30mm
|
20-30mm
|
|
Production Capacity
|
5-7 Ton/Hour
|
7-10 Ton/Hour
|
|
Main Motor Power
|
55kw
|
110kw
|
|
Feeding Roll Motor
|
3KW*1 , 4KW*1
|
5.5KW*2
|
|
Weight
|
4.5 Ton
|
7 Ton
|
|
Overall Dimension
|
2600*2100*1430mm
|
2670*2150*1500mm
|
|
Feeding Motor Power
|
2.2KW
|
3KW
|
|
Oil Pump Motor Power
|
1.5KW
|
1.5KW
|
|
Feeding Conveyor Length
|
6 Meters
|
6 Meters
|
Detailed Images
Slot chain plate feeding conveyor
Outlet conveyor belt
Cutting Blade
Hammer Blade Roller
Cutting Blade
Hammer Blade
Screen
High Intensity Magnetic Roller
