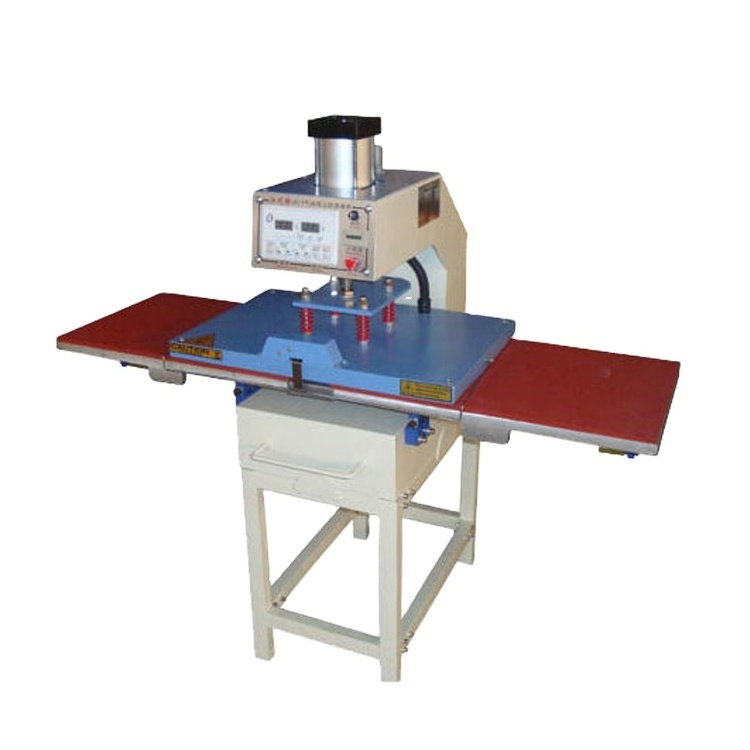

Automatic hydraulic heat transfer machine for skateboard

A heat press is the machine that presses a transfer onto an imprintable substrate. Using high temperatures and pressures for a certain amount of time, the transfer is permanently embedded into the product.

Heat presses are recommended for professional and satisfying results simply because standard laminating devices and home hand irons can not get even near the temperatures required for a reliable transfer.

*Real-time display of temperature condition: automatic alarm

*Specification: digital control panel, best pressure handle

*Suitable for bigger size printing

The machine can transfer the print of colorful patterns and characters which are of sublimation or solvent ink to the products made of cotton, hemp, fiber material. it is very suitable for the sublimation transfer printing on the T-shirts, mouse pads, pillows, metal photos, tiles and so on. It is very economical and practical, has a very high work efficiency! It will be your best choice!

Automatic hydraulic heat transfer machine for skateboard

Automatic hydraulic heat transfer machine for skateboard

Automatic hydraulic heat transfer machine for skateboard
Operation Procedures:

Taking the white cotton cloth as an example
A. Mirror print your picture on light sublimation paper with normal ink
B. Hold up the press handle, open the heat board
C. Instruction light will be on
D. Switch power on
E. Adjust the temperature controller on the left side.(The three buttons indicate ones place, tens place, hundreds place from left to right side),press + or – to adjust appropriate heating temperature-180°C, time needed approx. 10 minutes to reach 180°C;(Heating temperatures depends on materials, please request for the standard temperature information)
F. Adjust time controller on the right to the appropriate heating time 30 seconds(The heating time depends on the materials)
G. The machine will keep the constant temperature status when reaching the setting temperature
H. Put the cloth on the silica gel board holder, put the picture facing the cloth for heat transferring,press down the heat board and the timer counts automatically. Note:Too heavy pressure may cause the handle transformed. Must adjust the pressure ahead of operation.
I. While time up,the buzzer warns automatically. Swift the power off, hold up the press handle,take out the cloth and tear out the picture paper right away

Taking the black cotton cloth as an example:
A. Print your picture on dark sublimation printing paper with normal ink
B. Hold up the press handle, open the heat board
C. Instruction light will be on
D. Switch power on
E. Adjust the temperature controller on the left side to adjust appropriate heating temperature-180°C, time needed approx. 8 minutes to reach 180°C
F. Adjust time controller on the right to the appropriate heating time 30 seconds
G. The machine will keep the constant temperature status when reaching the setting temperature
H. Put the cloth on the silica gel board holder, put the picture facing the cloth for heat transferring, then put the adiabatic paper / cloth onto the picture, press down the heat board and the timer counts automatically
I. While time up,the buzzer warns automatically. Swift the power off, hold up the press handle,take out the cloth and take away the adiabatic paper 30 seconds later ( for adiabatic cloth, can take away immediately and no need to wait ) Make sure to take the material out from the machine once finish working.

For metal material board, the heating temperature should be approx. 170-200°C,the heating time around 60 seconds;For ceramic board, the heating temperature should be approx. 200-220°C,the heating time around 60 seconds; For the fabric, the heating temperature should be approx. 120-140°C,the heating time around 5-10 seconds. Please take the below information for example:

Accessories

(1)The Printer. Choose any normal Ink Jet photo printer and Epson series printer is recommended.
(2)To achieve the best quality of the photo printing, the following printer setting for your reference:
a.Choose the “Best Photo” and the “Photo Quality Ink Jet Paper” under “Main” as shown in figure 1.
b.Click “Advanced” under “Main” to achieve more setting as shown in figure 2.
c.Choose “Mirror Image” under “ Page Layout” as shown in figure 3 while printing photo for ceramic board and metal board, shell board and imitative ceramic necklace etc.

(3)The sublimation ink. Make sure to pull out the color soft plug on the top of the ink cartridges before putting them into the printer. The sublimation ink is easy to dry and better to furnish with one printer until the ink use up.
(4)Ink and printer maintenance.
a.Choose “ Maintenance” under the “Property” of the printer to make maintenance for the printer as shown in figure 4.

b.Use the three buttons on the printer. Ink empty hint. The power light and the ink button are on. (if the ink button keep on flashing, the ink is going to be used up but not yet empty. Replace the empty ink cartridge. Press the ink button. The print head moves to the ink cartridge check position and the power light begins to flash. The ink cartridge indicated by the mark is either empty or low. If more than one ink cartridge is empty or low, the print head moves to the mark. This occurs each time the ink button is pressed until all empty or low ink cartridges have been indicated. Once all of the empty or low ink cartridges have been indicated, the print head moves to the ink cartridge replacement position when the ink button is pressed. Cleaning the print head. Press the ink button for more than three seconds and the printer starts cleaning the print head.

(5)Photo printing. Select the image you need in the computer to print out. Make sure the pixel of the photo is more than 200 to achieve the better heat transferring effect. Please do not touch the printing side of the sublimation paper after printing within 1 minute.

heat press transfer machine
(6)Ink leak. Take tissue to absorb the ink or need to get maintenance from Epson shops.
(7)The printed color is not matched with the original color of the photo. Clean the print head or change a new ink cartridge.
(8)One printer can fill with sublimation ink and normal photo printing ink. But the better way is only fill with one kind of ink in one printer.

Warranty and Maintenance:

1,One-year guarantee.
2,Pressure: Adjust pressure screw clockwise to increase the pressure, counter clockwise to decrease the pressure
3,Time: Check and adjust the position of the jiggle switch in the rear machine case if the buzzer not warn or keep warning when time is out.
4,If press the pressure handle,the handle would be spring back automatically, please adjust the adjusting screw downward. After finished the printing, the handle may be too heavy to hold up, please adjust the adjusting screw upward.
5,Please check the circuit while the heat board is not available after the machine was on several minutes.
6,The natural life of the Silica Gel Board is 10000 times working.
7,The natural life of the Heat Board is 10000 times working.
8,Please feel free to contact us without any delay if there is any problem in the quality.

Notice:
1. The machine must be connected with the ground wire!
2. Do not touch the heat board while heating!
3. Do not touch the heat board once finish working as time is needed to cool down.
4. Please keep children away from the machine!
5. Please use the heat insulation glove to pick the finished goods!
