Quick Details
-
Dimension(L*W*H):
-
3.5cbm
-
Weight (T):
-
0.38
-
Warranty:
-
1 YEAR
-
CNC or Not:
-
Normal, Normal
-
Power Supply:
-
220V/50HZ
-
Atitude:
-
<=1200mm
-
Connection:
-
oild and firm
-
Onnection points:
-
round and rectangular
-
Press unit:
-
handheld or mounted
-
Brand:
-
EMM
-
Keyword:
-
riveting machine
-
Power:
-
50W
-
Certification:
-
ISO9001
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
EMM
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
3.5cbm
-
Weight (T):
-
0.38
-
Warranty:
-
1 YEAR
-
CNC or Not:
-
Normal, Normal
-
Power Supply:
-
220V/50HZ
-
Atitude:
-
<=1200mm
-
Connection:
-
oild and firm
-
Onnection points:
-
round and rectangular
-
Press unit:
-
handheld or mounted
-
Brand:
-
EMM
-
Keyword:
-
riveting machine
-
Power:
-
50W
-
Certification:
-
ISO9001
|

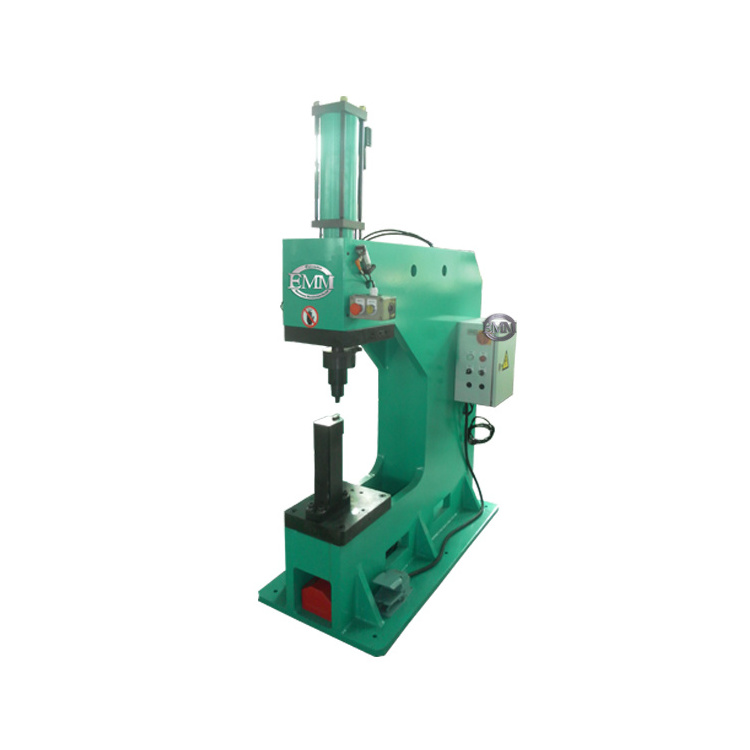

EEC04 RIVETING MACHINE
The riveting machine is used to process workpieces,free from clinch bolt connection and press fitting of bolts and nuts. It utilizes the punch and the dedicated connecting mold and imposes instantaneous highprocessing,during which the workpiece itself goes through cold extrusion deformation, and then an inlaid unstressed dot with certain tensile and shear strength is formed. Hence,two-layer workpieces of different materials and thicknesses are riveted together.
It is constructed by highstiffness and highstrength integrated superior cast materials and has reserved the die installation space.It works without vibration or impact, which helps to improve the production environment to some extent. Besides, this riveting machine is designed with soft in-position function to protect the die from impacts,extend the die life and to improve the product quality.
|
Name |
Air-hydraulic more force cylinder |
|
Model |
EEC08.04 |
|
Machine No. |
BS08-100-1 |
|
Air-hydraulic Intensifying Jar Type: |
BS08-100-10 |
|
Total travel |
100 mm |
|
Power travel |
10 mm |
|
Max. Pressure of air pressure: |
76KN (when under 6 bar air pressure) |
|
Max. force |
76 KN |
|
Air control connection |
G1/2 |
|
Control system |
STE-01-F-08 |
|
Max. Air pressure: |
6bar |
|
Min. air pressure: |
3bar |
|
Height above sea level: |
no more than 1200m |
|
Relative humidity: |
no more than 85% |
SAMPLES
Service during the Sale
1. We are manned with professional salesmen and technicians to provide the information, technical support and the optimal solutions with high cost performance.
2. Based on the specific requirements of customers and the lead time, we will formulate a rigorous operation process. Through the close cooperation of Commodity Department, Sales Department, Technical Department and the Ocean Shipping Department, we are devoted to timely supplying customers with superior machines.
3. Generally, certain quantity of quick-wear parts will be delivered with the goods. The delivery deadline depends on the specific order, which is usually within 1 to 3 months.
After-Sale Service
1. One year warranty is provided.
2. Customers can send photos or samples for our confirmation once the parts are damaged within the one year warranty. If the parts are not damaged by misoperation, we will reply to customers within 48 hours and provide free parts for replacement. Besides, for the parts out of commission and beyond the
warranty, we only charge for the basic costs of parts.
3. We regularly follow up the service condition of products, and timely analyze and copy with the feedbacks. As for the disputes, we will figure out effective actions to reach mutual satisfaction.
