Quick Details
-
Mounting Type:
-
Vertical installation
-
Description:
-
Reed Switch Proximity Sensor
-
Model Number:
-
P1-1A151
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CFKGCN
-
Theory:
-
Magnetic Reed Sensor, Current Sensor
-
Output:
-
Switching Output
-
Max. Current:
-
0.5A
-
Max. Voltage:
-
220V
-
size:
-
small size
-
package:
-
carton
-
application:
-
proximity sensor
-
company profile:
-
manufacturer
-
keywords:
-
reed sensor
-
installation:
-
easy
Quick Details
-
Usage:
-
Door Contact, Magnetic Sensor
-
Series:
-
Reed Switch Proximity Sensor
-
Features:
-
High sensitivity
-
Mounting Type:
-
Vertical installation
-
Description:
-
Reed Switch Proximity Sensor
-
Model Number:
-
P1-1A151
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CFKGCN
-
Theory:
-
Magnetic Reed Sensor, Current Sensor
-
Output:
-
Switching Output
-
Max. Current:
-
0.5A
-
Max. Voltage:
-
220V
-
size:
-
small size
-
package:
-
carton
-
application:
-
proximity sensor
-
company profile:
-
manufacturer
-
keywords:
-
reed sensor
-
installation:
-
easy

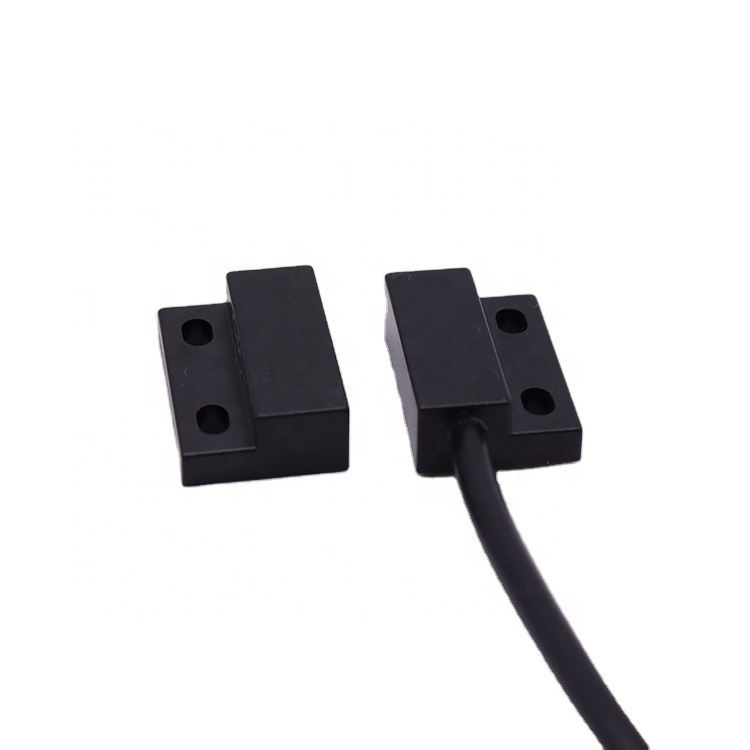

Magnetic Reed Switch Proximity Switch Sensor for Security and Safety Equipment
1.Special designed 2.Low cost 3.Simple installation 4.Wide application
Product
Introduction
flow sensor consists of magnetic core, rotating impeller, external casing and sensor.Flow through the sensor activates the magnetic core to trigger switch action, with signal output.
Features
imported components of the magnetic switch, sample working principles, and highly reliable, cheaper price.
Applications
Introduction: proximity sensors are constructed by shaping and sealing the magnetic spring tube connected with wires. Switching action will occur when a magnetic object is in the proximity; it is usually used as a position sensor.
|
item |
technical parameters |
|
|
Contact type |
Usual opened type, usual closed type ( optional ) |
|
|
Max contact power |
10W |
50W |
|
Max switch voltage |
100VDC/100VAC |
350VDC/300VAC |
|
Min break down voltage |
150VDC |
600VDC |
|
Max switch current |
DC0.5A |
DC0.7A/AC0.5A |
|
Max carry current |
1.0A |
2.5A |
|
Max contact resistance |
100mΩ |
100mΩ |
|
Min insulation resistance |
10 9 Ω |
10 10 Ω |
|
Contact life |
10 7 times |
|
|
Temperature range |
-10 ~ +125 ℃ |
|
|
Max conduction distance |
18±2mm |
|
|
material |
ABS, SUS, c, copper, aluminum, zinc alloy(customization) |
|
|
lead |
customization |
|
