Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DAYANG
-
Model Number:
-
DY-T910
-
Warranty:
-
1 Years
-
product:
-
manual tire changer
-
Color:
-
blue or customized
-
inside claming:
-
12"-24"
-
outside clamping:
-
10"-22"
-
Max. tire diameter:
-
41"(1040mm)
-
Max. tire width:
-
14"(360mm)
-
working pressure:
-
8-10 bar
Quick Details
-
Motor Power:
-
0.75/1.1KW/0.55KW
-
Operating Pressure:
-
8-10bar
-
Power Supply:
-
110V-415V,50/60HZ
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DAYANG
-
Model Number:
-
DY-T910
-
Warranty:
-
1 Years
-
product:
-
manual tire changer
-
Color:
-
blue or customized
-
inside claming:
-
12"-24"
-
outside clamping:
-
10"-22"
-
Max. tire diameter:
-
41"(1040mm)
-
Max. tire width:
-
14"(360mm)
-
working pressure:
-
8-10 bar

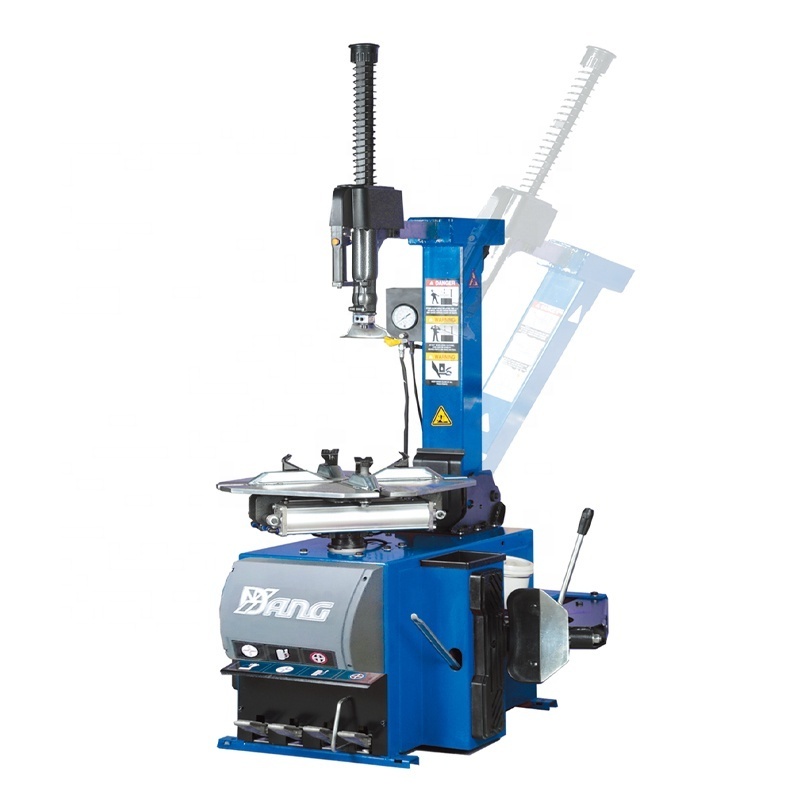

1. Pictures of tire changer
2. Main features of tire changer
1. Clamping jaw made by American 8640 alloy steel, anti-abrasion and anti-rusting.
2. Integrated demounting and mounting.
3. Top locking and swinging arm structure, S41 six-axle shaft.
4. With bigger strong bead breaker, can be used for wide flat tires.
5. Whole design and material is Italian style, strong and reliable.
6. Reserved a hole for auxiliary mechanical arm, be convenient to add it.
3. Specifications
Motor power--------------- 0.75/1.1KW/0.55KW
Rim Clamping outside-----------10"-22"
Rim Clamping inside-------------12"-24"
Max. tire diameter------------- 41”(1040mm )
Max. tire width----------------- 14”(360mm )
Rotating speed ---------------6r/min
Working pressure------------8-10bar
Bead breaker force----------2500kg
Power supply-----------------100V-415V,50/60HZ
N.W-----------------------------230kg
4. Factory
5. Our machines in worldwide
6. Delivery
Warranty will continue to be valid for a period of 12 months provided the following warranty conditions are observed.
Warranty Conditions:
1. This warranty is valid from the date of receiving equipments.
2. This warranty is given for the benefit of the first owner only and claims by parties other than the original purchaser will not be recognized, as the warranty is not transferable.
3. This warranty is only valid when the product has been used in accordance with the Installation, Operation, Maintenance and Instruction Manual and by a competent person trained in its use.
4. This warranty does not apply to damage or deterioration, which is caused by human.
5. During warranty period, shipping cost of replacement products or parts are our responsibility.
6. Beyond the warranty period, we provide spare parts to customers at factory cost.
