Quick Details
-
Brand Name:
-
JG
-
Fork Length:
-
1150mm
-
Fork Width:
-
535/225MM
-
Overall Dimensions:
-
1600*790*1600mm
-
Weight (KG):
-
219 kg
-
Product Name:
-
electric stacker
-
Rated load:
-
Rated loadkg
-
Lifting method:
-
Lifting method
-
Operation mode:
-
Operation mode
-
Material Science:
-
Nylon/PU
-
Working length of fork:
-
1150mm
-
Maximum height of fork after lifting:
-
1300h3(mm)
-
Battery capacity:
-
12/33V/Ah
-
Battery weight:
-
10kg
-
dead weight:
-
219kg
Quick Details
-
Min. Lifting Height:
-
90
-
Warranty:
-
1 Year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JG
-
Fork Length:
-
1150mm
-
Fork Width:
-
535/225MM
-
Overall Dimensions:
-
1600*790*1600mm
-
Weight (KG):
-
219 kg
-
Product Name:
-
electric stacker
-
Rated load:
-
Rated loadkg
-
Lifting method:
-
Lifting method
-
Operation mode:
-
Operation mode
-
Material Science:
-
Nylon/PU
-
Working length of fork:
-
1150mm
-
Maximum height of fork after lifting:
-
1300h3(mm)
-
Battery capacity:
-
12/33V/Ah
-
Battery weight:
-
10kg
-
dead weight:
-
219kg
Product Description
Product Parameters
|
model
|
|
SDYG-Z 0509
|
SDYG-Z 0510
|
SDYG-Z 0511
|
SDYG-Z 0513
|
SDYG-Z 1013
|
|
Rated load
|
Q(Kg)
|
500
|
500
|
500
|
500
|
1000
|
|
Load center distance
|
C(mm)
|
400
|
400
|
400
|
400
|
400
|
|
Lifting method
|
|
Electric
|
Electric
|
Electric
|
Electric
|
Electric
|
|
Operation mode
|
|
walk
|
walk
|
walk
|
walk
|
walk
|
|
Material Science
|
|
Nylon/PU
|
Nylon/PU
|
Nylon/PU
|
Nylon/PU
|
Nylon/PU
|
|
wheelbase
|
y(mm)
|
860
|
860
|
860
|
860
|
860
|
|
Front track width
|
b11(mm)
|
380
|
380
|
380
|
380
|
380
|
|
Rear track width
|
b10(mm)
|
670
|
670
|
670
|
670
|
675
|
|
Number of steering wheels/bearing wheels/balancing wheels
|
|
2/2/6
|
2/2/6
|
2/2/6
|
2/2/6
|
2/2/6
|
|
Bearing wheel size
|
mm
|
Φ70×60
|
Φ70×60
|
Φ70×60
|
Φ70×60
|
Φ70×60
|
|
Steering wheel size
|
mm
|
Φ100×50
|
Φ100×50
|
Φ100×50
|
Φ100×50
|
Φ100×50
|
|
Balancing wheel size
|
mm
|
Φ40×26
|
Φ40×26
|
Φ40×26
|
Φ40×26
|
Φ40×26
|
|
Auxiliary balancing wheel size
|
mm
|
Φ30×26
|
Φ30×26
|
Φ30×26
|
Φ30×26
|
Φ30×26
|
|
Minimum height of cargo fork from the ground
|
mm
|
90
|
90
|
90
|
90
|
90
|
|
Maximum height of fork after lifting
|
h3(mm)
|
900
|
1000
|
1100
|
1300
|
1300
|
|
Fork outer width
|
mm
|
535
|
535
|
535
|
535
|
535
|
|
Inside width of fork
|
mm
|
225
|
225
|
225
|
225
|
225
|
|
Working length of fork
|
l(mm)
|
1150
|
1150
|
1150
|
1150
|
1200
|
|
Single side fork size
|
e/s(mm)
|
155/60
|
155/60
|
155/60
|
155/60
|
155/60
|
|
Vehicle length
|
L1(mm)
|
1600
|
1600
|
1600
|
1600
|
1615
|
|
Vehicle width
|
b1(mm)
|
790
|
790
|
790
|
790
|
790
|
|
Vehicle height (when fork is lowered)
|
h1(mm)
|
1200
|
1300
|
1400
|
1600
|
1300
|
|
Height of the whole vehicle after lifting the gantry
|
h4(mm)
|
2100
|
2300
|
2500
|
2900
|
2900
|
|
Length to the vertical surface of the fork
|
l2(mm)
|
1150
|
1150
|
1150
|
1150
|
1150
|
|
Minimum turning radius
|
Wa(mm)
|
1120
|
1120
|
1120
|
1120
|
1120
|
|
Maximum lifting speed (full load/no load)
|
mm/s
|
80/110
|
80/110
|
80/110
|
80/110
|
85/85
|
|
Maximum lowering speed (full load/no load)
|
mm/s
|
80/80
|
80/80
|
80/80
|
80/80
|
85/85
|
|
Lifting motor
|
V/Kw
|
12/0.8
|
12/0.8
|
12/0.8
|
12/0.8
|
12/0.8
|
|
Battery capacity
|
V/Ah
|
12/33
|
12/33
|
12/33
|
12/33
|
12/40
|
|
Battery weight
|
Kg
|
10
|
10
|
10
|
10
|
10
|
|
dead weight
|
Kg
|
175
|
186
|
197
|
219
|
265
|
Factory Display
Product Details

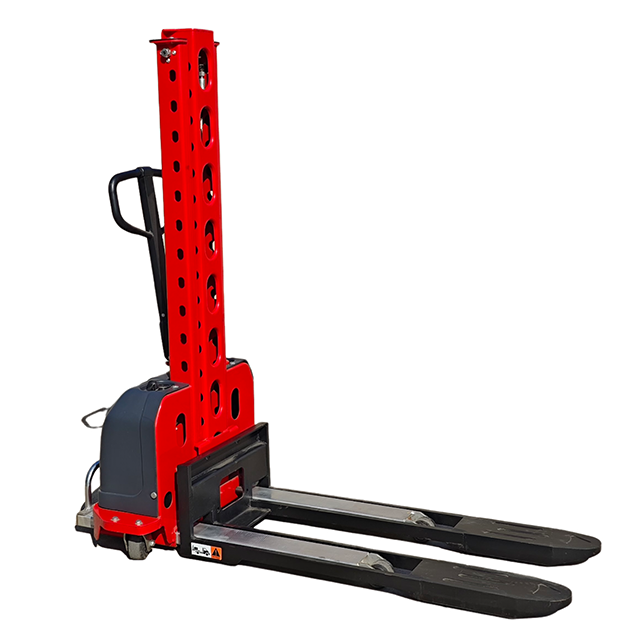

description of products
Electric stacker is an efficient, energy-saving and environmentally friendly storage equipment, which is widely used in factories, warehouses, logistics centers and other places, mainly for stacking, handling and loading and unloading of goods. The following is a product description of the electric stacker:
Strong power: The use of high-performance motor, strong power, smooth operation, can easily cope with various conditions.
Energy saving and environmental protection: The use of electric energy as a power source, no exhaust emissions, low noise operation, in line with environmental requirements.
Easy to operate: Using advanced control system and humanized design, easy to operate and easy to use.
High safety: with multiple safety protection measures, such as overload protection, slope control, etc., to ensure the safety of operation.
Reliable and durable: The use of high-quality materials and advanced technology manufacturing, with good wear resistance and corrosion resistance.
Multi-functional design: Various auxiliary functions can be customized according to user needs, such as weighing, automatic lifting of cargo fork, etc.
