Quick Details
-
Color Rendering Index(Ra):
-
80
-
Color Temperature(CCT):
-
2000-6500K available
-
Input Voltage(V):
-
36V / 72V
-
Luminous Intensity:
-
.
-
Luminous Flux(lm):
-
6550-18000 lumen
-
Optical Attenuation(%):
-
0.1
-
Power Dissipation:
-
137000
-
Viewing Angle(°):
-
120
-
Color Temperature:
-
2700K, 3000K, 3500k, 4000K, 5000K, 6500K
-
Operating Temperature(℃):
-
-35 - 85
-
Storage Temperature(℃):
-
-40 - 85
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XLamp
-
Warranty:
-
3 Years
-
Lamp application:
-
Plant Growth Lamp
-
Lamp Luminous Efficiency(lm/w):
-
120
Quick Details
-
Warranty(Year):
-
3-Year
-
Support Dimmer:
-
NO
-
Luminous Efficacy(lm/w):
-
130
-
Color Rendering Index(Ra):
-
80
-
Color Temperature(CCT):
-
2000-6500K available
-
Input Voltage(V):
-
36V / 72V
-
Luminous Intensity:
-
.
-
Luminous Flux(lm):
-
6550-18000 lumen
-
Optical Attenuation(%):
-
0.1
-
Power Dissipation:
-
137000
-
Viewing Angle(°):
-
120
-
Color Temperature:
-
2700K, 3000K, 3500k, 4000K, 5000K, 6500K
-
Operating Temperature(℃):
-
-35 - 85
-
Storage Temperature(℃):
-
-40 - 85
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XLamp
-
Warranty:
-
3 Years
-
Lamp application:
-
Plant Growth Lamp
-
Lamp Luminous Efficiency(lm/w):
-
120

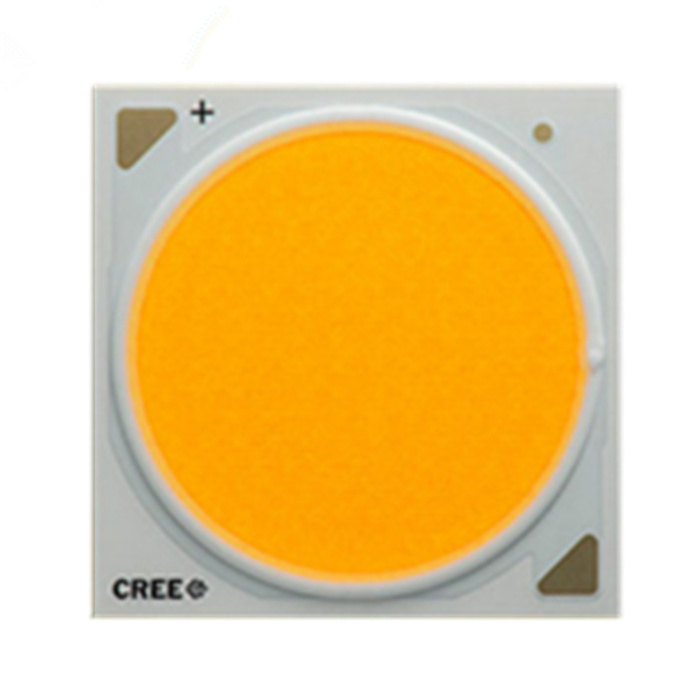

Horticultural Chip For Plant Growth Light 2700K 3000K 3500K 4000K 5000K 6500K Original Crees Xlamp CXB3590 COB LED
| Size | 34.85 x 34.85 mm |
| Product Options | 36 V 72 V High-CRI |
| Maximum Drive Current | 3.6 A (36 V) 1.8 A (72 V) |
| Maximum Power | 137 W |
| Light Output Range | 9000 - 15000 lm |
| Maximum Efficacy at Binning Conditions | 127 lm/W |
| Light Emitting Surface (LES) | 30 mm |
| Typical Forward Voltage | 36 V @ 2400 mA 72 V @ 1200 mA |
| Maximum Reverse Current | 0.1 mA |
| Viewing Angle | 115 ° |
| Binning | 85°C 3-Step EasyWhite® |
| Maximum ESD Withstand Voltage | 8000 V (HBM per Mil-Std-883D) |
| RoHS-Compliant | Yes |
| REACH-Compliant | Yes |
| UL-Recognized | Yes - Level 4 Enclosure Consideration |
Competitive Advantages of our LEDs:
1. Good quality guarantee, 50000 hours lifespan, 2-5 years warranty.
2. Professional engineers and experienced workers.
3. Short delivery time, normally 1-7 working days.
4. Customized specifications available in CCT, CRI, Lumen, VF, Color , etc.
5. Various module type, such as SMD LED, 1-2000W high power integrated / COB LED, Diode etc.
Contact Us:
Name: Bruce
Email: shiningopto (at) yahoo.com
Skype: live:infoleds
