Quick Details
-
Model Number:
-
AP-114
-
Valve type:
-
Presta Schrader
-
Product name:
-

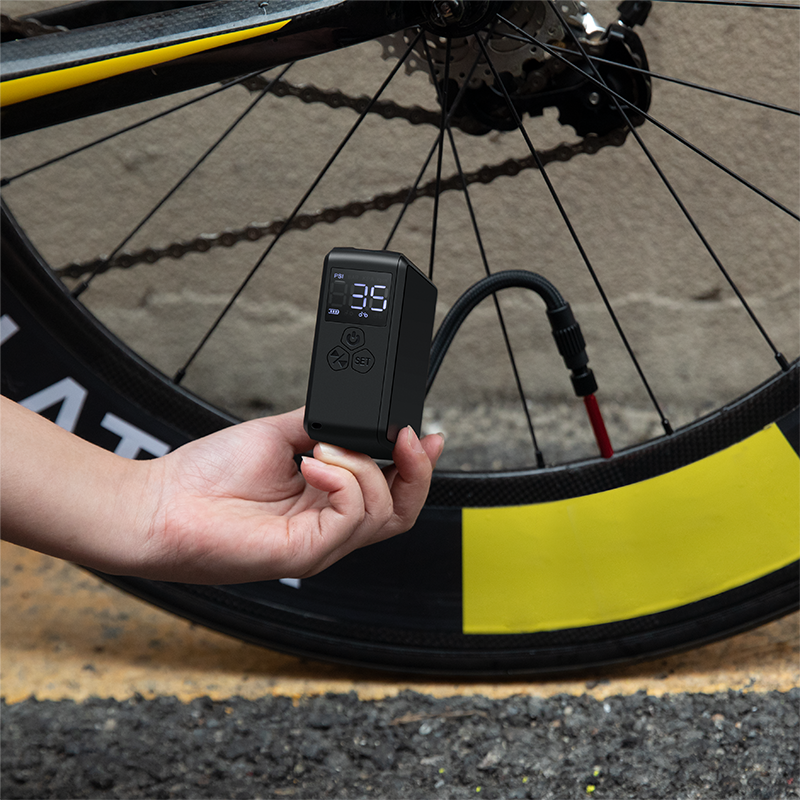

ultra small rechargeable smart bike pump electric mini bicycle pump
-
Function:
-
Automatically inflating, pressure detection
-
Feature:
-
Durable, portable, intelligent, rechargeable,large LCD screen display
-
Color:
-
Black
-
MOQ:
-
500PCS
-
Weight/Size:
-
290g/8*7.4*3.45CM
-
Application:
-
Road bike, mountain bike,motorbike, car, ball
-
Max flow:
-
18L/Min
-
Certification:
-
FCC,CE,RoHS,BSCI,PSE,Eur&Jap patent
Quick Details
-
Pressure:
-
130-160PSI
-
Material:
-
Plastic
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
AP-114
-
Valve type:
-
Presta Schrader
-
Product name:
-
ultra small rechargeable smart bike pump electric mini bicycle pump
-
Function:
-
Automatically inflating, pressure detection
-
Feature:
-
Durable, portable, intelligent, rechargeable,large LCD screen display
-
Color:
-
Black
-
MOQ:
-
500PCS
-
Weight/Size:
-
290g/8*7.4*3.45CM
-
Application:
-
Road bike, mountain bike,motorbike, car, ball
-
Max flow:
-
18L/Min
-
Certification:
-
FCC,CE,RoHS,BSCI,PSE,Eur&Jap patent
Product Description
|
Item
|
Specification parameters
|
|
Model No.
|
AP-114
|
|
Certifications
|
FCC, CE ,RoHS, BSCI, ISO, PSE, UL
|
|
Material
|
ABC
|
|
Product Size
|
8*7.8*3.5CM
|
|
Color
|
Black,
|
|
290Weight
|
290g
|
|
Charging
|
USB Charging
|
|
Voltage
|
11.1V
|
|
Max pressure
|
150PSI
|
|
Current
|
6A
|
|
Flow
|
15L/Min
|
|
Battery capacity
|
800mAh*3
|
|
Working Temperature
|
-20 ~60℃
|
|
Working Mode
|
Automatically operation
|
|
Product Function
|
Automatically inflating&Pressure detection
|
|
Features
|
LED display & Small & Large battery capacity & fast inflation & Easy operation
|
|
Charging Time
|
1.5H
|
|
Packaging
|
Color box, 32Sets/Cnt; Carton size 36.2*28.8*20cm; GW: 13.2Kg
|
We Are The Earliest Inventor Of Smart Electric Pump
1. High quality, we work with ALDI , COSTCO.
2. Smallest smart pump in the world, performance is better than normal pumps.
3. Fast inflation: 1 min for a road bike tire
4.High pressure: 150PSI
5. Inflation numbesr: Road bike tire* 8pcs ; MTB tire* 7pcs , Car tire* 1.5pcs
1. Inflation number and time
2. Small size:
8*7.8*3.5CM/290G, it can be fited in the cycling clothed pocket
3.
Excellent performance,
It is bettery than the normal pump in this field
4. Small and
Portable
5.
Two inflation ways:
pumping with Red Nozzle or Hose;
Both the hose and the red pumping nozzle can work for
Schrader& Presta valves.
6. Packing
Production processes
1. Material inspection-one by one
2. Gear assembly
3. Solder
4. Movement inspection
5. Screwing
.
6. Finished product assembly
7. Finished product inspection- one by one
.
8. Packing
9. Finished product warehouse
Customer reviews
Certificates
Exhibition
|
TROUBLESHOOTING
|
|
|
||
|
FAULT
|
REASONS
|
SOLUTIONS
|
||
|
Can’t start
|
(1) screen not be activated
(2) no power (3) Pump is broken |
(1) press the SET button to activate the screen
(2) charging with the USB cable or DC15 V cable (3)contact the customer service |
||
|
Fails to inflate or slow filling
|
(1) fitting/ gasket leak
(2) Piston ring valve wear (3) safety valve blow (4) the pipe is bent and blocked (5) the power is not enough (6) the tire pressure is above the preset value (7)Pump is broken |
(1) tighten again
(2) replace (3) replace (4) make the pipe straight (5) charging with the USB cable or DC15 V cable (6) reset the pressure value, make it higher then the tire pressure (7) contact the customer service |
||
|
Normal operation but the pressure is zero
|
(1) inflating the low pressure products , such as balls
(2) Pump is broken |
(1) Normal, the pump could not text the low pressure products
(2) contact the customer service |
||
