Quick Details
-
Place of Origin:
-
China(Mainland)
-
Brand Name:
-
No
-
Product name:
-
7 hp gasoline engine mini rock saw trencher
-
Power:
-
7hp Petrol Engine
-
Trench Width:
-
100mm
-
Max Trench Depth:
-
45cm
-
Blade Number:
-
21 pcs
-
Blade Material:
-
Carbide Alloy
-
Chain Length:
-
1600mm
-
Chain Speed:
-
550m/min
-
Starting Method:
-
Recoil
-
Operationg RPM:
-
3600rpm
Quick Details
-
Weight (KG):
-
160
-
Type:
-
Mini Trencher
-
Use:
-
Trenching
-
Place of Origin:
-
China(Mainland)
-
Brand Name:
-
No
-
Product name:
-
7 hp gasoline engine mini rock saw trencher
-
Power:
-
7hp Petrol Engine
-
Trench Width:
-
100mm
-
Max Trench Depth:
-
45cm
-
Blade Number:
-
21 pcs
-
Blade Material:
-
Carbide Alloy
-
Chain Length:
-
1600mm
-
Chain Speed:
-
550m/min
-
Starting Method:
-
Recoil
-
Operationg RPM:
-
3600rpm

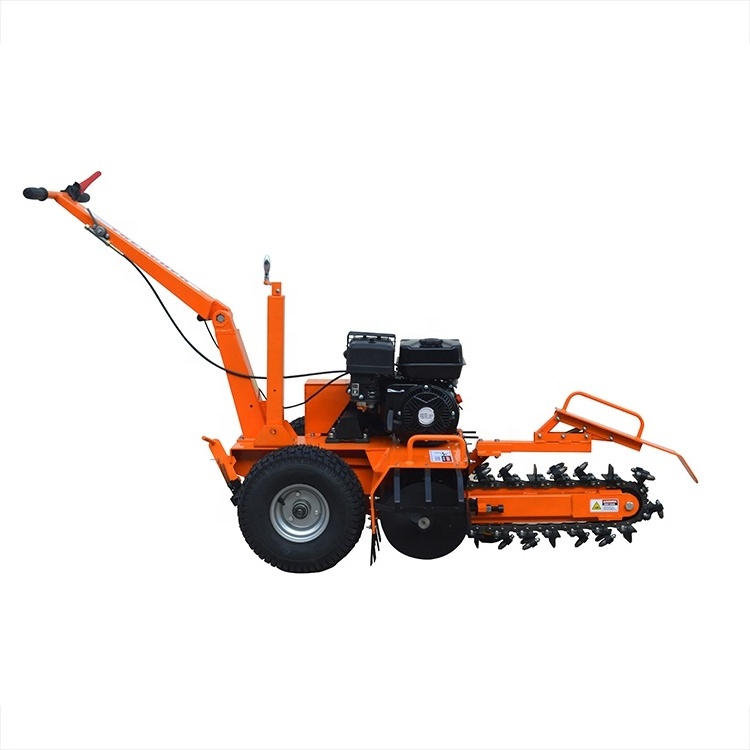

Loncin/Ducar/B&S/Honda 7 hp gasoline engine mini rock saw trencher for for laying fiber optic cables
|
Model |
Mini Trencher TCR700 |
Mini Trencher TCR1500 |
|
Power |
7hp Ducar Gasoline Engine |
15hp Ducar Gasoline Engine |
|
Optional Engines |
Loncin,B&S, Honda, Kohler |
Loncin,B&S, Honda, Kohler |
|
Trench Width |
4" (100mm) |
4" (100mm) |
|
Max Trench Depth |
18" (450mm) Adjustable |
24" (600mm) Adjustable |
|
Depth Adjustment |
Spiral Lever Stepless Adjustment |
Spiral Lever Stepless Adjustment |
|
Blade Number |
21 pcs |
27 pcs |
|
Blade Material |
Carbide Alloy |
Carbide Alloy |
|
Chain Length |
1600mm |
2000mm |
|
Chain Speed |
550m/min. |
550m/min. |
|
Dimension |
1760*700*900mm |
2100*720*1100mm |
|
Packing Method |
Plywood Case |
Plywood Case |
|
Packing Size |
1030*770*860mm |
1150*770*860mm |
|
Gross Weight |
136KG |
160KG |
|
20" Container |
30 Units |
30 Units |
|
40HQ Container |
99 Units |
90 Units |
Our machines passed TUV-CE,ISO, EPA, RoHs,PAHs,Noise.
Pre-Sales Service
* Product and operation training.
* Relevant user manual and label customizing.
* Relevant market analysis.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Worldwide distribution of vulnerable parts.
Warranty: 1 Year warranty.
OEM Service:
Color/User Manual/LOGO/Packing Case/SN Label/Warning Labels/Multi Languages/Machine Design Modification.
