Quick Details
-
Brand Name:
-
Gondor
-
Max Sewing Speed:
-
3500r/min
-
Max Sewing Thickness:
-
1200g/m2
-
Voltage:
-
220V, 380V
-
Power:
-
1.5Kw
-
Dimension(L*W*H):
-
2.8*2.8*1.2m, 3.0*3.2*1.2m,3.2*3.4*1.2m
-
Weight:
-
550
-
Machinery Function:
-
Quilt sewing
-
Core selling points:
-
Easy to operate ,accept customization
-
Language:
-
Chinese, English, Spanish, Russian
-
Thread trimming:
-
Automatic thread cutting
-
Capacity:
-
30-40pcs/h
-
Operating System:
-
Computer keyboard, half touch screen, full touch screen
-
Quilting size:
-
2.2*2.4m/2.4*2.6m/2.6*2.8m/2.8*3m/3*3.2m
-
Needle:
-
SINGER MR5 18~22#
-
Needle Stitch:
-
2-7mm
-
Stitches:
-
Single -line style, double-line style, big Rotary Shuttle
Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Warranty of core components:
-
1 years
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Gondor
-
Max Sewing Speed:
-
3500r/min
-
Max Sewing Thickness:
-
1200g/m2
-
Voltage:
-
220V, 380V
-
Power:
-
1.5Kw
-
Dimension(L*W*H):
-
2.8*2.8*1.2m, 3.0*3.2*1.2m,3.2*3.4*1.2m
-
Weight:
-
550
-
Machinery Function:
-
Quilt sewing
-
Core selling points:
-
Easy to operate ,accept customization
-
Language:
-
Chinese, English, Spanish, Russian
-
Thread trimming:
-
Automatic thread cutting
-
Capacity:
-
30-40pcs/h
-
Operating System:
-
Computer keyboard, half touch screen, full touch screen
-
Quilting size:
-
2.2*2.4m/2.4*2.6m/2.6*2.8m/2.8*3m/3*3.2m
-
Needle:
-
SINGER MR5 18~22#
-
Needle Stitch:
-
2-7mm
-
Stitches:
-
Single -line style, double-line style, big Rotary Shuttle
Introduction

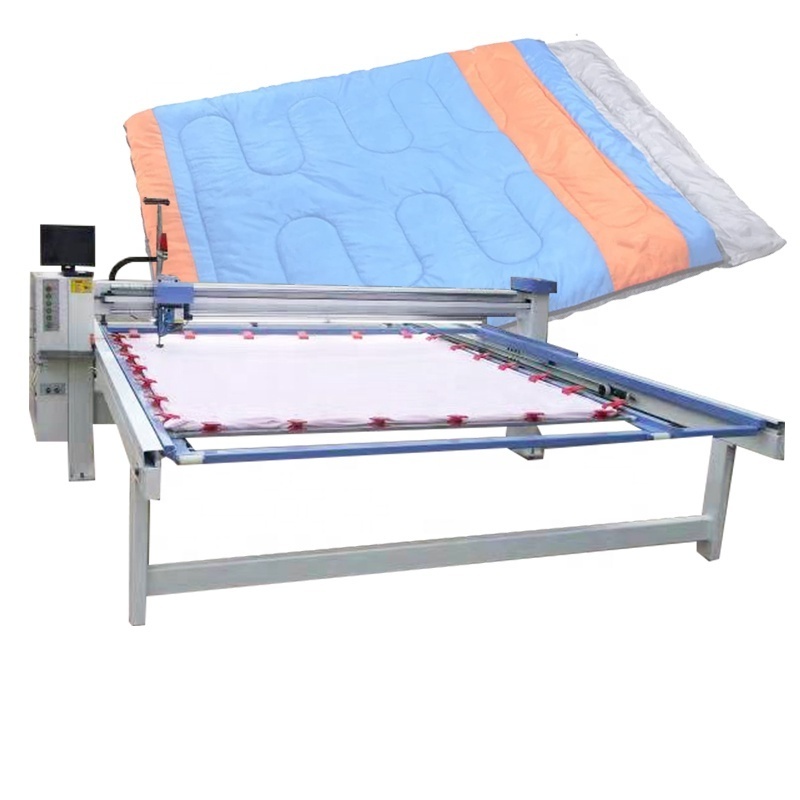

Quilting machine mainly use for quilting mattresses, bedspreads, quilts . The working prrinciple is similar to the sewing machine.(The sewing machine moves: the textile moves, the machine is stationary. The quilting machine moves: the machine moves the textile to be stationary).
Application
It can be widely used for quilting of various quilts, sleeping bags, bedspreads and curtains.
Features
1 Computer Chinese and English layout, easy to operate.
2 Quilting size, needle speed, stitch length, pattern, etc. can be adjusted at will.
3 Using broken line detection, automatic memory return, automatic repair and other functions.
4 Computer screen work status tracking color display, automatic cumulative output, etc.
5 Can be customized according to user needs of various sizes.
6
In machine have 280 patterns .also supply the pattern design as you require.
Parameter table
| Model | GD-2224 | GD-2426 | GD-2628 | GD-2830 |
| Max Quilt Size | 2m×2.4m | 2.4*2.6m | 2.6*2.8m | 2.8*3m |
| Needle Drop Size | 2.2*2.2m | 2.2*2.4m | 2.4*2.6m | 2.6*3m |
| Sewing Machine | Single head, single needle, double line lock type, line trace, big rotary shuttle | |||
| Quilting Thickness | 1200g/m 2 | |||
| Quilting Speed | 1600 /min(SPM) (Stitch length) 2~7mm | |||
| Needle | SINGER MR5 18~22# | |||
| Machine Size | 2.7m×2.6m×1.4m | 2.9m×2.8m×1.4m | 3.4m×3.3m×1.4m | 3.9m×3.8m×1.4m |
| Power | ||||
| Weight | 550kg | 650kg | 750kg | 850kg |
| Packing Size | 3.0m×1.2m×1m | 3.2m×1.2m×1m | 3.6m×1.2m×1m | 4.2m×1.2m×1m |
Q1 How can we guarantee quality?
A:Always a pre-production sample before mass production; Always final Inspection before shipment.
Q2 Can I have different models with different price?
A:Yes, there have different models according to different raw material and different capacity.
Q3 Do you offer oversea installation?
A:We'll send professional installation engineer to help you install the equipment, as well as train your workers freely.
Q4 Can I print my Logo on the machine and can you customize the machine for me ?
A: Yes, sure. We can provide professional customized logo services for customers and we can customize according to customer's requirements.
Q5 Who are we?
A: We are based in Henan, China, start from 2020,sell to North America(35.00%),Africa(30.00%),Western Europe(30.00%),Domestic Market(5.00%). There are total about 5-10 people in our office.
Install waterproof membrane to reduce dust and water pollution.
Standard wooden boxes are used as outer packaging to reduce bumps in international transportation.
Seal the wooden cases.
Delivery time
For stock type, we can send within 48hrs after confirming order.
For customized type , delivery date need to be negotiated before taking order.
