Quick Details
-
RAM:
-
Note
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kingteng
-
Model Number:
-
KT-708PSS
-
Screen Size:
-
7 Inch Screen
-
Video Input:
-
2 Channel
-
Car:
-
For Bus Cleaning Truck Front Loader Excavator
-
TV system:
-
NTSC PAL Optional
-
Camera:
-
2pcs
-
Product name:
-
Car Reversing Aid
-
Power Supply:
-
DC 12V-24V
Quick Details
-
Car Fitment:
-
FREIGHTLINER, International, Mack Heavy Duty, MACK
-
Resolution:
-
1024*600
-
Connection:
-
Note
-
RAM:
-
Note
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kingteng
-
Model Number:
-
KT-708PSS
-
Screen Size:
-
7 Inch Screen
-
Video Input:
-
2 Channel
-
Car:
-
For Bus Cleaning Truck Front Loader Excavator
-
TV system:
-
NTSC PAL Optional
-
Camera:
-
2pcs
-
Product name:
-
Car Reversing Aid
-
Power Supply:
-
DC 12V-24V
Product Description
|
Screen Size
|
7Inch(16:9)
|
Camera Sensor
|
1/3 CMOS
|
AHD 720P parking sensor
|
|
Resolution
|
1024X600
|
Camera Resolution
|
100W
|
4Sensors
|
|
Video Input
|
2CH AHD
|
Effective Pixel
|
1280x720
|
Warranty 14Month
|
|
Power Supply
|
DC12V-24V
|
Mini Illumination
|
0.1Lux With IR
|
Step-up Buzzer alarm
|
Specifications
Monitor Specification
Product Name:720P AHD Car monitor
Video inputs:2AV AHD
Screen size:7inch
Screen
Type:6:9 wide screen
Resolution 1024x600
TV system:AUTO
Power requirement:12/24V DC
Parking Sensor Specification
Alarm mode Step-up Buzzer alarm
Detective distance Ultralong detecting distance,detecting range is 0.3m-3m
Sensor 4 sensors
Sensor
feature Remembering the fixed back obstacle distance,avoid the consecutive alarm
Sensor color Black
Sensor size 48mm
Sensor to radar cable 2.5-3 meter （can be customized）
Monitor to radar 4pin cable 10 meter （can be customized）
Buzzer to radar 2pin cable 10 meter（can be customized）
Color system Can be connected with camera and any rearview monitor
Display mode The distance will display on the monitor
Power requirement 12-24V DC
Operating temperature -10℃ to +65℃
AHD Rearview Camera Specification
Ip rating:Ip69K
Images Sensors:1/3 AHD
TV System:PAL/NTSC Option
Effective Pixels:1280X720
Sensing Area(mm) 4.9X3.7
Resolution(TV Lines)100W
Min.IIIumination(Lua/F1.2)0.01Lux
Horizontal Sync.Frequency(KHZ) 15.625/15.734
Vertical Sync.Frequency(HZ) 50/60
Video Output:75 Ohm
Consumption:0.45
AGC:Auto
BLC :Auto
S/N ratio :Better than 48dB
Lens:F=1.9mm/F=2.0
Lens Angle(Deg.) : 170°
Current Consumption(mA) :300
Power Supply(DCV)12
Operating Temperature(Deg.C):-20+75(RH95% Max.)
Storage Temperature(Deg.C) :-40+85(RH95% Max.)

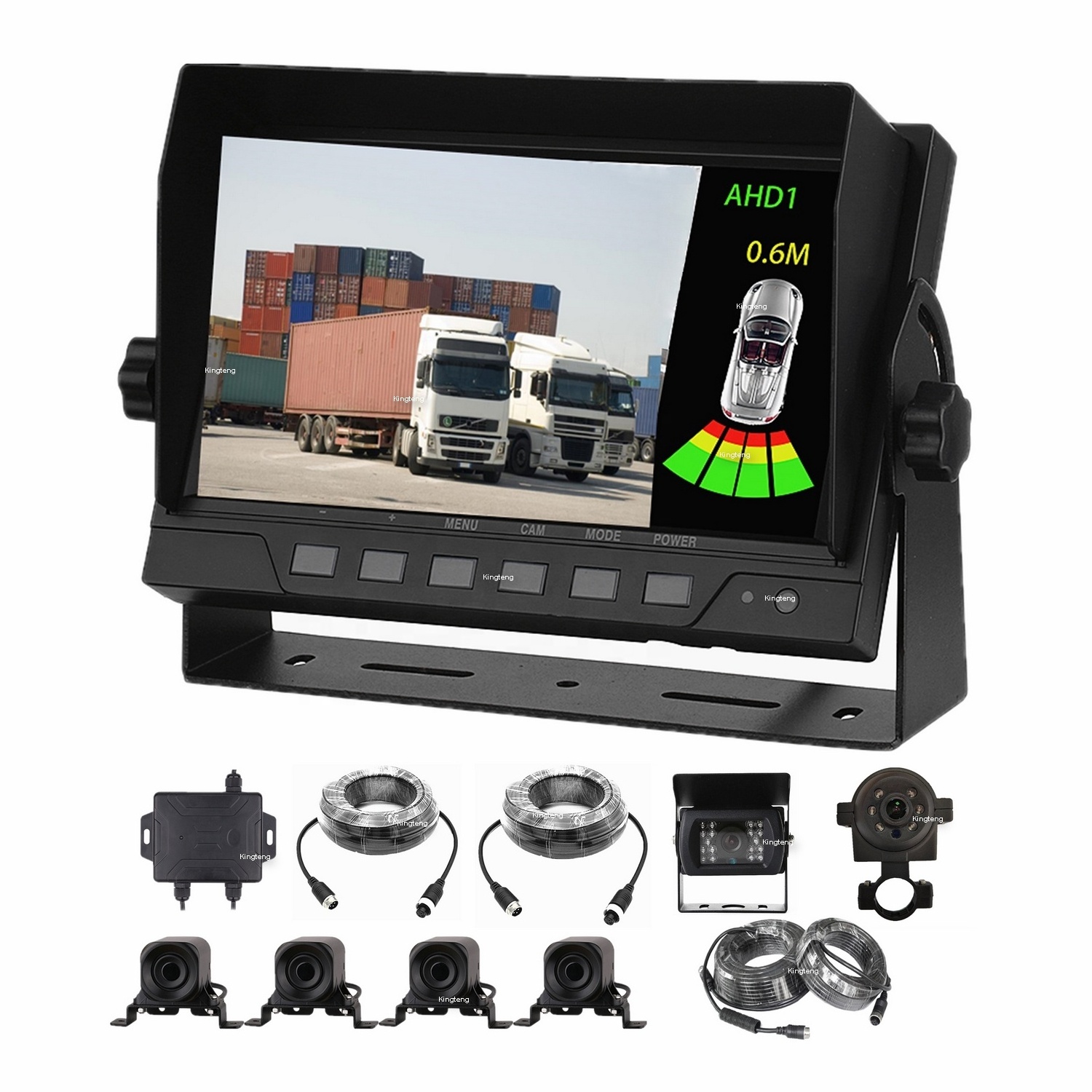

Package details
1x7inch Car Monitor AHD 720P 2AV
2xAHD 720P Car Camera(standard for right view and back view,can be choose front and left view camera,please check with our staff before you place order)
4xSensors Kit(include install frames,wires,etc)
2x10M video cable
1x5M video cable
1x15M video cable
