Quick Details
-
Certificate::
-
ISO .SGS
-
Material::
-
Aluminum, PVC
-
Express Delivery::
-
DHL/UPS/EMS
-
Operating Temperature::
-
-20°C ~ 80°C
-
Rated Voltage::
-
2.5,2.7V
-
Package::
-
in bulk or in blister
-
Color::
-
Blue/black
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Keywords:
-
ultra capacitor 10000f
-
Type::
-
Super Capacitor
-
Certificate::
-
ISO .SGS
-
Material::
-
Aluminum, PVC
-
Express Delivery::
-
DHL/UPS/EMS
-
Operating Temperature::
-
-20°C ~ 80°C
-
Rated Voltage::
-
2.5,2.7V
-
Package::
-
in bulk or in blister
-
Color::
-
Blue/black
|
Item |
Performamance characteristics |
|||||||||||||||||||||||||||||||
|
Operating Temperature range |
-40~+105℃ |
|||||||||||||||||||||||||||||||
|
Rated voltage range |
10~120VDC |
|||||||||||||||||||||||||||||||
|
Capacitance range |
0.47~10000uF |
|||||||||||||||||||||||||||||||
|
Capacitance tolerance |
±20%(120Hz, +20℃) |
|||||||||||||||||||||||||||||||
|
Leakage current(+20℃max) |
LC≤0.01CV or 3(μA), whichever is greater measured after 2 minutes application of rated working voltage at +20℃. |
|||||||||||||||||||||||||||||||
|
Dissipation factor |
For capacitance value >1000uF, add 2% per another 1000uF |
|||||||||||||||||||||||||||||||
|
Low temperature characteristics |
Impedance ratio max at 120Hz
|
|||||||||||||||||||||||||||||||
|
High temperature loading(Endurence) |
Test conditions |
|||||||||||||||||||||||||||||||
|
Duration time |
2000hours |
|||||||||||||||||||||||||||||||
|
Ambient temperature |
+105℃ |
|||||||||||||||||||||||||||||||
|
Applied voltage |
DC voltage with maximum permissible ripple current specified at +105℃ |
|||||||||||||||||||||||||||||||
|
Post test requirements at +20℃ |
||||||||||||||||||||||||||||||||
|
Leakage current |
≤The initial specified value |
|||||||||||||||||||||||||||||||
|
Capacitance change |
≤25% of the initial measured value |
|||||||||||||||||||||||||||||||
|
D.F.(tan δ) |
≤200% of initial specified value |
|||||||||||||||||||||||||||||||
|
Before test requirement: Resumed 16 hours at normal temperature |
||||||||||||||||||||||||||||||||
|
Shelf life |
Test conditions |
|||||||||||||||||||||||||||||||
|
Duration time |
1000hours |
|||||||||||||||||||||||||||||||
|
Ambient temperature |
+105℃ |
|||||||||||||||||||||||||||||||
|
Applied voltage |
None |
|||||||||||||||||||||||||||||||
|
Post test requirement at 20℃ |
||||||||||||||||||||||||||||||||
|
Leakage current |
≤initial specified value |
|||||||||||||||||||||||||||||||
|
Capacitance change |
≤ ± 25% of initial measured value |
|||||||||||||||||||||||||||||||
|
D.F.(tan δ) |
≤200% of the initial specified value |
|||||||||||||||||||||||||||||||
|
Before the measurements, the capacitor shall be pretreated by applying DC working voltage for 30 minutes, after discharged and then stored under standard atmospheric conditions for 24-48 hours. |
||||||||||||||||||||||||||||||||

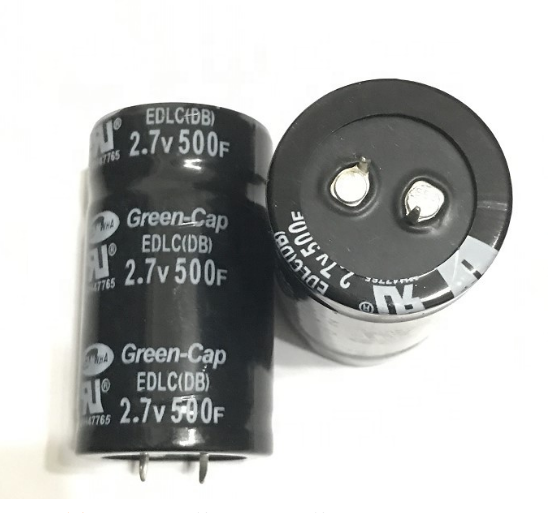

super capacitor
1. long life : up to 8 million to 120 million cycles
2. High Power density : up 6700w/kg
3. Low ESR : can be used as a rechargeable battery and ideal for back up purposes
4. Quick charge : charging 10 seconds to 10 minutes to reach its rated capacity of more than 95%
5. Quality standard :ISO 9001:2000;ISO 9001:2008;ISO 14001:2004
6. Excellent service : ensure products quality,promise one year after-sold service,there is no worry for you
