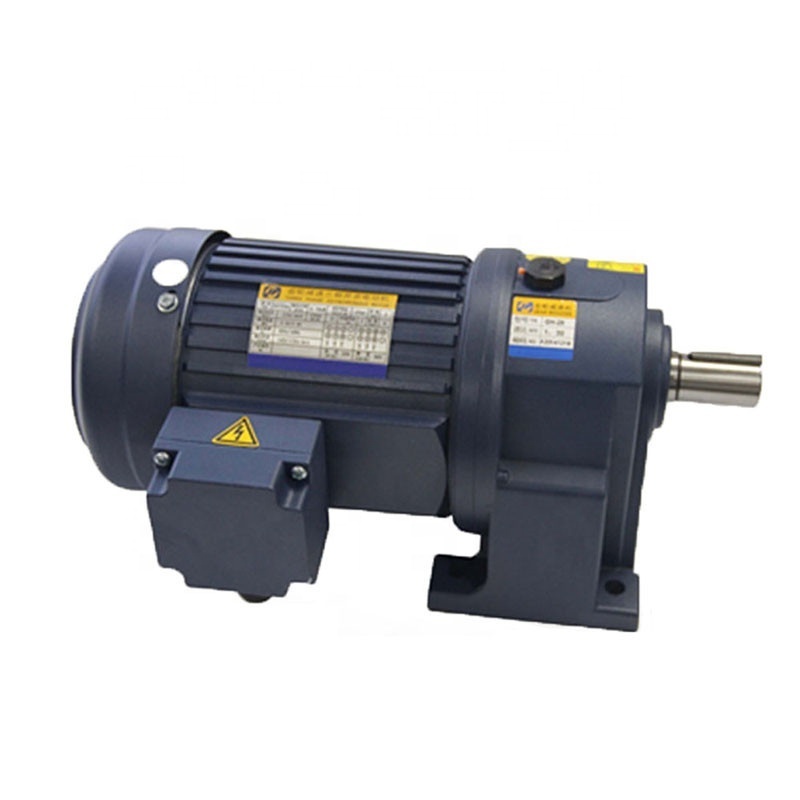

3HP 2200W 220V 380V 50HZ 60HZ AC Electric Motor for Concrete Mixer

Type

Gear Motor

Dimension

60mm,70mm,80mm,90mm,104mm

Power

100W,200W,400W,750W,1500W,2200W,3700W

Voltage

Single Phase 110V/220V
Three  Phase 220V/380V

Gear ratio

3, 3.6, 5, 6, 7.5, 9, 12.5 15, 18, 25, 30, 36, 50, 60, 75, 90, 100, 150, 180,200 ~750

Shaft Type

Parallel shaft

Using humidity

≤85%(Place without dew)

Using temperature

-10℃~+40℃(No freeze)

Insulation class

Class B (130℃)

Temperature rise

The temperature rise should be lower than 80℃ measured
by resistance method when the motor is working.

Insulation voltage

In the circumstance of normal temperature and humidity,
there will be no problem supplying the power of 1500V 50/60Hz between the metal wiring and motor shell in 1 minute while the motor is working.

Insulation resistance

In the circumastance of normal temperature and humidity,
the resistance can be up to 100MΩ,measured by DC 500V
insulation resistance measurer between the motor wiring
and motor shell while the motor is working

Bearing Type

Ball Bearing(Mark KB for Type GU square case)

Gear type(Gearbox)

GU:General Helical Gear; GN:Reinforced Helical Gear

Shape of Motor Shaft

A:Flat type; A1:Milling Keyway; GU:General Helical Gear;
GN:Reinforced Helical Gear
