Quick Details
-
Memory Type:
-
DDR4, DDR4 2400MHz Max8GB
-
Graphics Card Type:
-
Integrated
-
Chipset:
-
Intel SOC
-
Brand Name:
-
ZEROONE
-
Place of Origin:
-
Guangdong, China
-
Display:
-
2*HDMI+1*LVDS
-
Muilt Display:
-
Triple Display(synchrony/asynchrony)
-
USB:
-
5*USB3.2 GEN1(5Gbps)+5*USB2.0
-
Memory:
-
1*SO-DIMM DDR4 2400MHz Max8GB
-
Audio:
-
OnboardRealtek ALC662/ALC887audio decoder controller
-
Network:
-
Onboard 2*Realtek RLT8111H/8111G 1000M
-
Storage:
-
1*SATA3.0 1*M.2 M Key(SATA SSD 2280mm)
-
Slot:
-
Mini PCIe (Support Wifi+Bluetooth4G) 1*SIM
-
I/O Chip:
-
ITE8786E-I
-
BIOS:
-
AMI BIOS
Quick Details
-
Maximum Ram Capacity:
-
8GB
-
Application:
-
Desktop
-
Form Factor:
-
Nano ITX
-
Memory Type:
-
DDR4, DDR4 2400MHz Max8GB
-
Graphics Card Type:
-
Integrated
-
Chipset:
-
Intel SOC
-
Brand Name:
-
ZEROONE
-
Place of Origin:
-
Guangdong, China
-
Display:
-
2*HDMI+1*LVDS
-
Muilt Display:
-
Triple Display(synchrony/asynchrony)
-
USB:
-
5*USB3.2 GEN1(5Gbps)+5*USB2.0
-
Memory:
-
1*SO-DIMM DDR4 2400MHz Max8GB
-
Audio:
-
OnboardRealtek ALC662/ALC887audio decoder controller
-
Network:
-
Onboard 2*Realtek RLT8111H/8111G 1000M
-
Storage:
-
1*SATA3.0 1*M.2 M Key(SATA SSD 2280mm)
-
Slot:
-
Mini PCIe (Support Wifi+Bluetooth4G) 1*SIM
-
I/O Chip:
-
ITE8786E-I
-
BIOS:
-
AMI BIOS
Specification
|
CPU
|
Intel® Gemini lake J4125/J4105/N4000 Processor
|
|
Chipse
|
Intel® SOC
|
|
GPU
|
Intel® UHD Graphics 600
|
|
Display
|
2*HDMI+1*LVDS
|
|
Muilt Display
|
Triple Display(synchrony/asynchrony)
|
|
USB
|
5*USB3.2 GEN1(5Gbps)+5*USB2.0
|
|
Memory
|
1*SO-DIMM DDR4 2400MHz Max8GB
|
|
Audio
|
OnboardRealtek ALC662/ALC887audio decoder controller
|
|
Network
|
Onboard 2*Realtek RLT8111H/8111G 1000M
|
|
Storage
|
1*SATA3.0
1*M.2 M Key（SATA SSD 2280mm） |
|
Slot
|
Mini PCIe (Support Wifi+Bluetooth4G) 1*SIM
|
|
I/O Chip
|
ITE8786E-I
|
|
BIOS
|
AMI BIOS
|
|
Power
|
DC/4PIN DC12~19V 供电
|
|
Cooling
|
FANLESS
|
|
Operating Environment
|
Operating：0~60℃; Storage：-20℃~75℃
0% ~ 95% Relative Humidity,Non-condensing |
|
Size
|
120X120mm
|
|

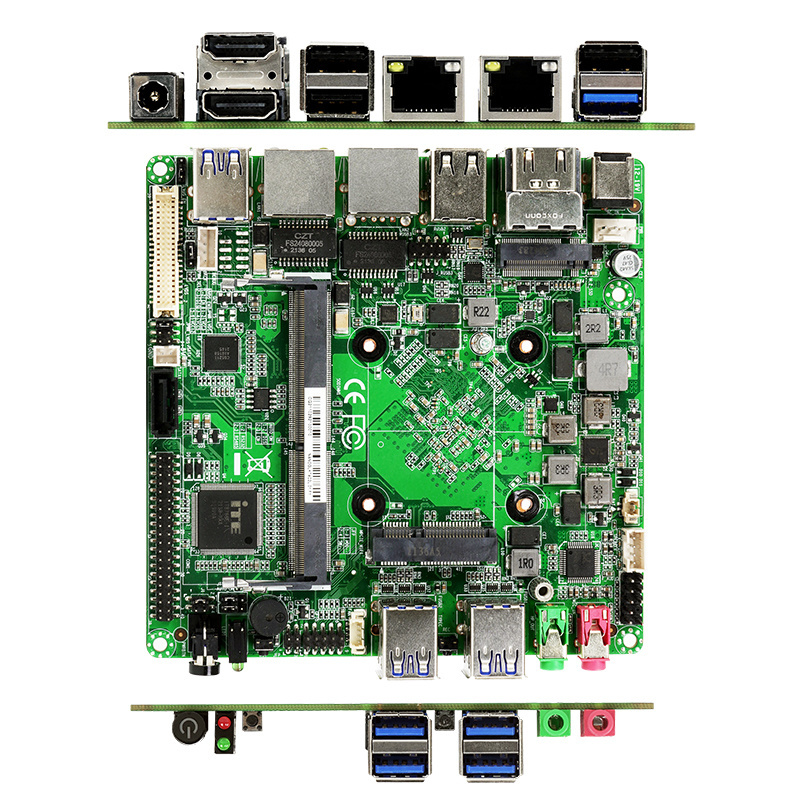

Rear I/O
|
1*DC（5.5-2.5mm DC JACK）
2*HDMI 3*USB2.0 1*LAN2（LAN2 or 2*USB2.0 ） 1*LAN1 1*USB3.2 |
|
FrontI/O
|
1*PWR_BT
2*LED 1 xHard disk indicator（Red） ；1 x WIFI&4G module data status indicator（Green） 1*Rset&CLR_CMOS 1*SIMCard slot 4*USB3.0Interface1*Ghost 1*LINE-OUTInterface 1*MIC-INInterface |
|
Internal I/O
|
1*LVDS PIN
1*BKCT PIN 1*SATA_PWRPIN 1*SATA3.0 Interface 4*COM232PIN （COM1 Support 1*RS485） 1*GPIO PIN （4*GPIO） 1*CPU FAN PIN 1*AUDIO PIN 1*SPEAKER PIN（3W@4Ω） 1*4PIN PWR PIN 1*F_USB2.0 PIN Scalable（2*USB2.0） |
Product Description
Function characteristics：
-Support Intel® Gemini lake J4125/J4105/N4000 Processor
-1*SO-DIMM DDR4 2133/2400MHz Max8GB
-Support 2*HDMI ，built-inLVDS（Optional），Support Triple Display
-Onboard2*Realtek Gigabit Ethernet (RLT8111H/8111G)
-Support 5*USB3.2 GEN1(5Gbps)+5*USB2.0
-Support 4*COM232，Option: COM1 can Support 485
-Support 1*SATA3.0、1*M.2 M KeySupport SATA SSD
-Onboard 1*MiniPCIe，Support Wifi+Bluetooth /4GExpansion module
-DC12~19V Power Supply,Hardware monitoring,Incoming call auto start
