Quick Details
-
Keypad Button Material:
-
PET/PC
-
Cross Reference:
-
1
-
Product name:
-
OEM printing window PC membrane switch graphic overlay
-
Color:
-
Pantone
-
Certification:
-
ISO9001:2008
-
Rear adhesive:
-
3M468MP Adhesive
-
Adhesive:
-
3M467/468
-
Printing:
-
Screen Printing
-
Size:
-
Customized Size
-
Usage:
-
Multi-purpose
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CUSTOM
-
Model Number:
-
CUSTOM
-
Keypad Button Material:
-
PET/PC
-
Cross Reference:
-
1
-
Product name:
-
OEM printing window PC membrane switch graphic overlay
-
Color:
-
Pantone
-
Certification:
-
ISO9001:2008
-
Rear adhesive:
-
3M468MP Adhesive
-
Adhesive:
-
3M467/468
-
Printing:
-
Screen Printing
-
Size:
-
Customized Size
-
Usage:
-
Multi-purpose

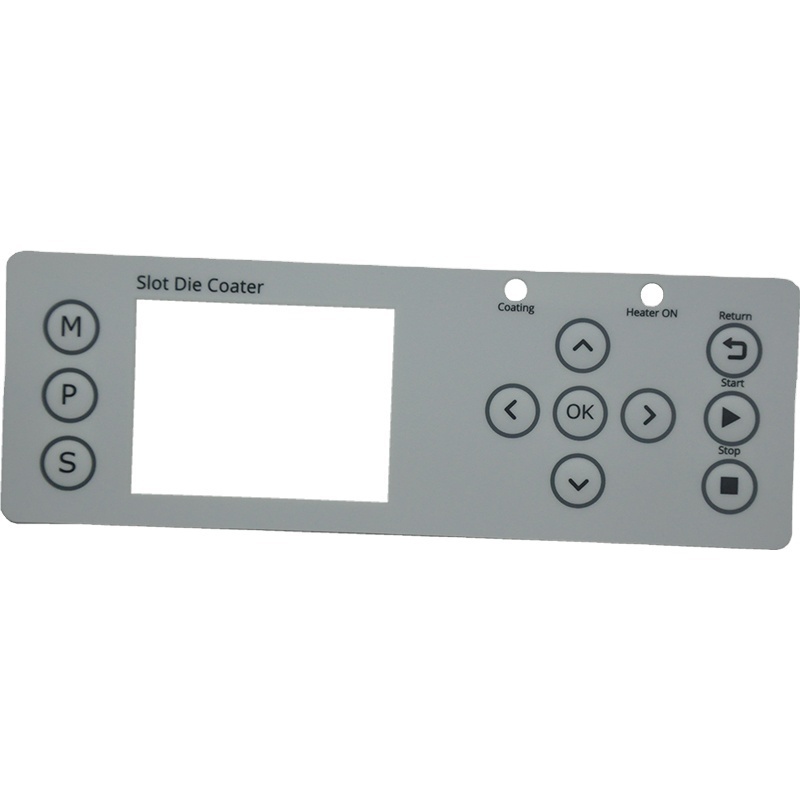

OEM printing window PC membrane switch graphic overlay
| Part | Ordinary Material | ||
| Graphic Overlay | Finish | Specification | |
| PC | Gloss | 0.175/.25/.35/.5 mm thickness | |
| Matt | 0.175/.25/.35/.5 mm thickness | ||
| PET | Fine Texture | 0.15/.20 mm thickness | |
| Valet Texture | 0.15/.20 mm thickness | ||
| Gloss with Hard Coat | 0.18 mm thickness | ||
| Rear Adhesive | Paper Double-sided Tape | 0.10 mm thickness | |
| Overlay Printing | Spelling mistake | Not allowed |
| Incorrect Font | Not allowed | |
| Dimension error | >0.2mm is Not allowed | |
| Color | Less than 2 levels with the specified Pantone color | |
| Dot impurities |
Diameter less than 0.2mm Distance between two impurities is more than 50mm The number of impurities is less than 2 within 100cm |
|
| Linear impurities | Width is less than 0.2mm,length is less 0.4mm in panel surface.Distance between two impurities is more than 50mm | |
| Window impurities | Diameter is less than 0.2mm in the center of the window |
1. How to make an order?
Please tell us your material,artwork design,logic circuit principle chart,size,surface,usage etc. And better send us the design drawing or samples together with other detailed datas, then we’ll customize the membrane switch upon your requests.
2. Sample available?
Yes, but based on freight collect. Most of the items are customized for clients, so molding charge is needed.
3. How to guarantee the after sales service?
We will track the production situation of the goods during the whole process,we promise the goods will be shipped to you smoothly. If any problem happened, we will provide the best solution for you.
4. Shipping ways & Delivery Time?
Shipping by: UPS/ Fedex /DHL /TNT or other ways specified.
Delivery time: 10~15 days after payment received.
5. Payment terms:
100% T/T in advance.
