Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
SHINEEAST
-
Model Number:
-
GBS-STA05
-
Place of Origin:
-
Shandong, China
-
Horsepower:
-
none
-
Outlet Size:
-
none
-
Power:
-
none
-
motor:
-
none
-
Core element:
-
Air driven gas booster and air tank
-
Brand:
-
SHINEEAST
-
Pressure source:
-
Air Pressure Booster
-
Air Consumption:
-
0.6-1.2M3/min
-
Air drive pressure:
-
3-8 bar
-
Working pressure:
-
0-35 bar
Quick Details
-
Application:
-
Air Pressure Booster
-
Pressure:
-
High Pressure
-
Voltage:
-
none
-
Warranty:
-
1 year
-
Brand Name:
-
SHINEEAST
-
Model Number:
-
GBS-STA05
-
Place of Origin:
-
Shandong, China
-
Horsepower:
-
none
-
Outlet Size:
-
none
-
Power:
-
none
-
motor:
-
none
-
Core element:
-
Air driven gas booster and air tank
-
Brand:
-
SHINEEAST
-
Pressure source:
-
Air Pressure Booster
-
Air Consumption:
-
0.6-1.2M3/min
-
Air drive pressure:
-
3-8 bar
-
Working pressure:
-
0-35 bar
Air Pressure Booster

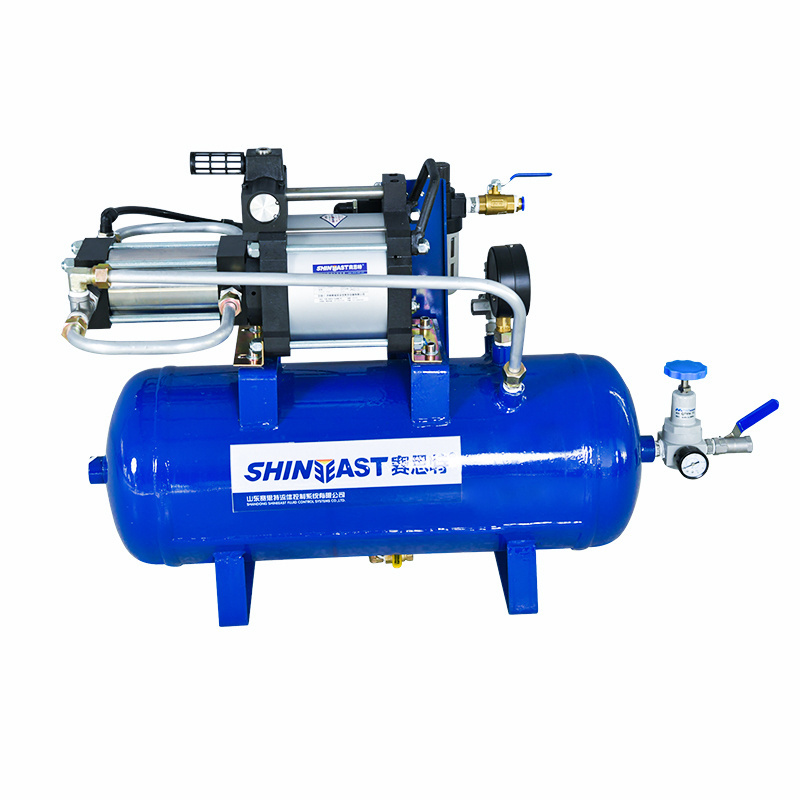

The Air Pressure Booster unit includes model GBS-STA05 and it is a complete pneumatic system designed to pressurize low pressure air/gas to high pressure air/gas. The air booster system can provide a constant outlet pressure.
They feature air pressure booster fitted with an air control unit comprising of a filter, pressure regulator with pressure gauge and an air shut-off valve, and an air tank. So the desired operation pressure and flow can be preset by the means of the air control unit in correspondence with different pressure ratios.
Ideal for use with machines or applications where higher pressure is required than the compressed airline system available.
We can also offer you a choice between a standard Air Pressure Booster System or a customized solution.
Applications
Provide air powered tools and machines in large factories with marginal central air pressure systems
Air pressure boosting in tools for operation of pneumatic clamps, cylinders and many other equipments
Main parameters of Air Pressure Booster :
Technical parameters:
|
Product name |
Air Pressure Booster System |
|
Specification |
GBS-STA 05 |
|
Core component |
Shineeast STA05 Booster pump |
|
output pressure |
0-35 bar |
|
Drive air pressure |
3 - 8 bar |
|
Air Consumption |
0.6-1.2M3/min |
|
Pressure source |
Air Pressure Booster |
