(Hot Sales!!) Jiangxi Henghong Portable Gold Digger Machine/Mining Machine For Gold/ Gold Washing Plant For Sale For Sticky Clay

(Hot Sales!!) Jiangxi Henghong Portable Gold Digger Machine/Mining Machine For Gold/ Gold Washing Plant For Sale For Sticky Clay

FOB Reference Price: Get Latest Price

≥1 Sets

US $40000

≥2 Sets

US $39700

≥5 Sets

US $39500

≥10 Sets

US $39000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 220V 380V

Dimension(L*W*H):: depending on the gold wash plant models

Weight:: KG

Name:: Portable Mining Machine For Gold/ Gold Washing Plant For Sale

Application:: clay mineral wash plant

Machines in this line:: rotary scrubber, jig machine, shaking tables

Color:: Customized

MOQ:: 1Set

Price:: Call +86 18879797085

Quality:: Excellent

Main products:: crusher, ball mill, gravity separator, flotation

Keywords:: Alluvial Mining Machine,Placer Gold Mining Equipment

Other name:: diamond Wash Plant

Quick Details

Production Capacity:: 95%

Place of Origin:: Jiangxi, China

Brand Name:: Henghong gold wash plant

Voltage:: 220V 380V

Dimension(L*W*H):: depending on the gold wash plant models

Weight:: KG

Name:: Portable Mining Machine For Gold/ Gold Washing Plant For Sale

Application:: clay mineral wash plant

Machines in this line:: rotary scrubber, jig machine, shaking tables

Color:: Customized

MOQ:: 1Set

Price:: Call +86 18879797085

Quality:: Excellent

Main products:: crusher, ball mill, gravity separator, flotation

Keywords:: Alluvial Mining Machine,Placer Gold Mining Equipment

Other name:: diamond Wash Plant

Small Scale Gold Mining Equipment Mini Gold Washing Plant

All the prices on this page are just for reference.

<<Contact us to get the best price, technical and videos.

We can also accept
customize the machines as your request .

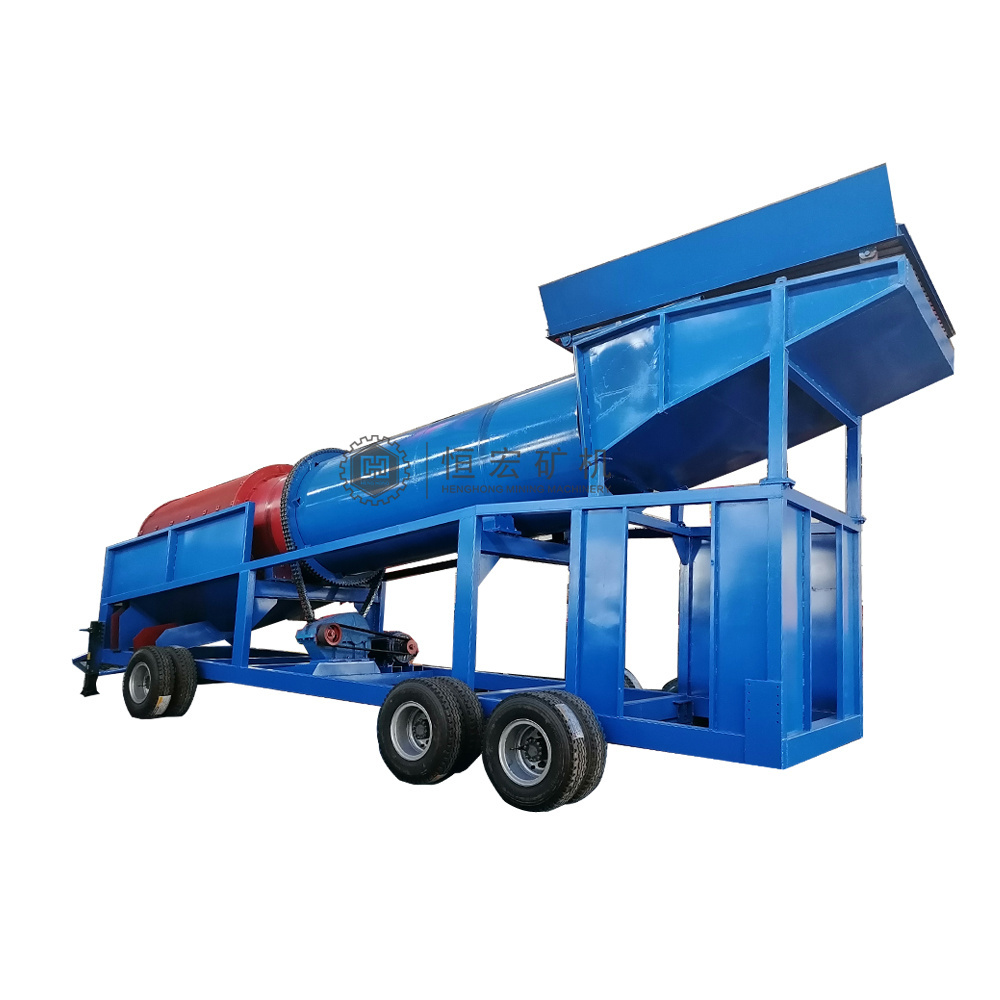

1. Portable Gold Washing Plant Machine Details

Trommel Scrubber is also named as gold wash plant. It consists of the hopper, the rotary scrubber, the trommel screens. And it can be mobile style and stationary style.

When the material is fed from the feeder to the washing part, during the force of watering and striking, the clay and ore will be separated, the fine particle will be flowed to the sieving part.
Advantages: Good washing effect for sticky clay material, sieving out different size ores.

For this gold wash plant, we can make mobile style and stationary style.

2. Advantage of Portable Gold Washing Plant Machine

1. Good Performance for Washing Clay ores and Screen them.

2. Large Capacity and Customized ( 5-250 TPH for your choice)

3. Low Operation Cost, Easy for Maintain and Low noise

4. The size and outlook can be customized. ( diameter size, length of trommel screen and rotary scrubber)

5. You can choose the mobile style and stationary style.

6. It can work with centrifugal concentrators, sluice boxs and shaking tables for more high recovery rate.

7. The rotary scrubber parts can be lined with rubber lining for more wear resistant, or choosing the steel material spiral plates for reducing the cost.

8. The materials for trommel screen can be PU for high wear resistant, or manganese steel screen for a cost reduce.

9. With double rubber tires for mobile, Water spray pipes inside machine.

10. It can be drove by the electric motor or diesel generator .

11. You can also add a electric control cabinets for controlling all the machines in your processing line.

3. Specification of Portable Gold Washing Plant Machine

Technical Parameters of Trommel Scrubber:
Model	Screen Size (mm)	Feeding Size (mm)	Water Pressure (Mpa)	Ore Water Required (m3/ton)	Capacity (t/h)	Rotation Speed (r/min)	Power (KW)	Weight (KG)
HH-1030	≥5	≤100	0.4-0.5	1.5-4	30-50	25-28	15	4800
HH-1230	≥5	≤100	0.4-0.5	1.5-4	50-70	23-25	18.5	5800
HH-1545	≥5	≤150	0.4-0.5	1.5-4	70-120	18-22	30	6900
HH-1560	≥5	≤150	0.4-0.5	1.5-4	80-130	18-22	37	8300
HH-1845	≥5	≤170	0.4-0.5	1.5-4	90-130	20-21	45	11800
HH-1860	≥5	≤170	0.4-0.5	1.5-4	100-140	20-21	45	12800
HH-2060	≥5	≤210	0.4-0.5	1.5-4	120-160	19-20	55	14800
HH-2265	≥5	≤230	0.4-0.5	1.5-4	160-180	19-20	55	16500

4. The Portable Gold Washing Plant Machine in our factory

5. The Gold Wash Plant Machines

(1) gold wash plant

The clay gold mining should be washed and screen firstly by the washing plant.

(2) gold concentrator

The outsize will be discharged from the trommel screen.

The fine size will go into the gold concentrator for purify the gold concentrate.

(3) gold shaking table

The gold concentrate from gold concentrator will be separated again on the shaking tables for get more pure gold.

(4) Amalgamator

The gold concentrate will be mixed with mercury in it. and at last you will get the Gold amalgam from it.

Put the gold amalgam in the distiller, and heat it. You will recovery the mercury and get the pure gold from it.

(5) Gold Furnace

The pure gold will be smelted by the furnace to get the gold bars.

------------------------------------------------------------------------

We can also accept >>

customize the machines as your request. >>

6. Application in Alluvial gold Mining

------------------------------------------------------------------------

About our Jiangxi Henghong Factory

Jiangxi Henghong Mining Machinery Manufacturing Co., Ltd is located in Guzhang Industrial Park of Ganzhou, covers an area of 30,000 square meters, and possesses more than 100 employees. We have more than 25 years’ experience in mining design and
developing of mining machinery.

Henghong mining machinery can provide turnkey solution for mineral processing plant including research, design, manufacture, installation and commissioning, personnel training, after-sale service and management of processing plant.

Be one of the best mining machinery supplier of China is the goal of Hengchang machinery, so we do our best in every step. Up to now, we have developed five major product lines; they are mining crushing machine, mining milling machine, mining classifying separator, mining flotation machine and the mining gravity separator. We conduct strict quality control during whole process to every procurement or delivery products, we passed international quality certification of ISO9001:2008.

FAQ

Q: 1.What is your machine used for ?
A: This machine is used for crushing the materials such as Gold,Copper,Mineral etc.

Q: 2.Are you factory or trade company?
A: Yes dear,we are the Professional manufacturer from 1985.So we could give you original factory price than those trade companies.

We're also warmly welcome your Visiting our factory if you are in China.

Q: 3.Can I operate it well, if I have no experience?
A: Do not worry! Our machines is designed to use easily.You are welcome to visit our company to be trained here,And we could arrange the engineer to go to your country/company to train your workers directly as your requested and the relative travel cost will be on your account.

Q: 4.Can you send me the video to show how the machine works?
A: Surely.we have made video of every machine,so if you need we can send for you to checking in clearly.

Q: 5. What should I take care when using the machine?
A: Please using the machine in regular and Keeping the machine away from thinner and other chemical liquid.

Q: 6.How about your Service ?

A: All of our machines have one year warranty and Wholelife Technology support to make sure your machine work well.

Q: 7.How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.

Q: 8.What about the payment method?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
