Quick Details
-
Warranty:
-
12 months
-
Brand Name:
-
Glory Solar
-
Model Number:
-
GSF-60W(S001)
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
860*400*5mm
-
Item name:
-

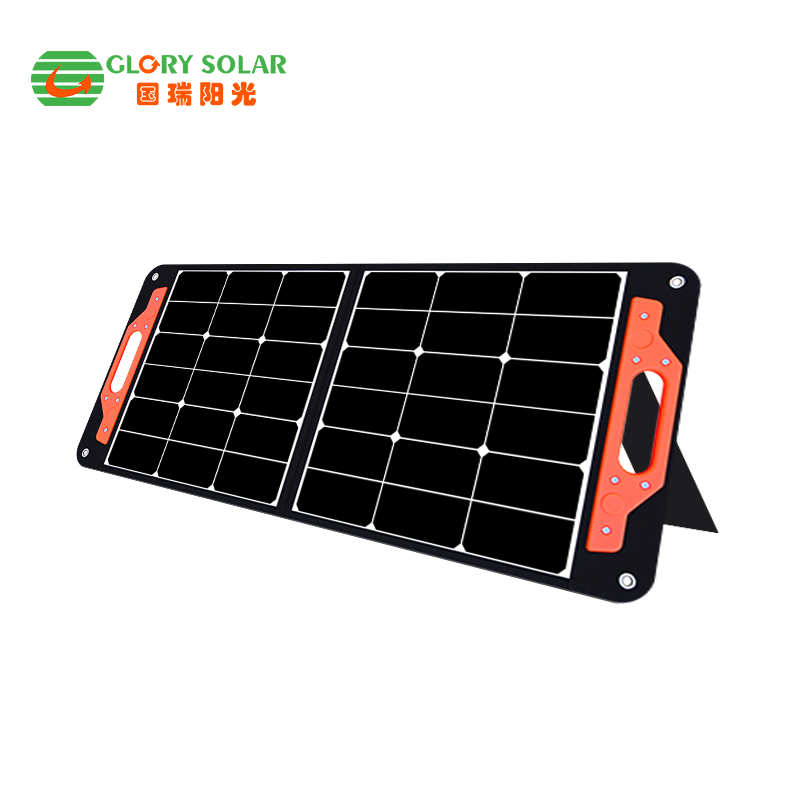

Portable Foldable Solar Panel Kit For Camping
-
Power:
-
100 Watts
-
Output cable:
-
USB/Type
-
Working Current:
-
19.8V/5.05A
-
Waterproof level:
-
IP67
-
Weight:
-
4KG
-
Fodling Size:
-
595*525*35mm
-
Certificate:
-
CE, ROHS, ISO
Quick Details
-
Cell size:
-
125mmx125mm
-
Type:
-
High-efficiency cell
-
Panel Efficiency:
-
23.5%, 23%
-
Warranty:
-
12 months
-
Brand Name:
-
Glory Solar
-
Model Number:
-
GSF-60W(S001)
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
860*400*5mm
-
Item name:
-
Portable Foldable Solar Panel Kit For Camping
-
Power:
-
100 Watts
-
Output cable:
-
USB/Type
-
Working Current:
-
19.8V/5.05A
-
Waterproof level:
-
IP67
-
Weight:
-
4KG
-
Fodling Size:
-
595*525*35mm
-
Certificate:
-
CE, ROHS, ISO
|
Specifications – Sun Power series – 50W/fold |
||||||
|
GS F-100W |
GS F-150W |
GS F-200W |
||||
|
Mat power |
100W(2 folds) |
150W(3 folds) |
200W(4 folds) |
|||
|
Power tolerance |
±3% |
±3% |
±3% |
|||
|
Cells brand & efficiency |
> 22.60% |
> 22.60% |
> 22.60% |
|||
|
1. U SB output (Q C3.0 ) |
5 V3A/9V2A/12V1.5A(max) |
|||||
|
2.Type-C output ( PD+ Q C3.0 ) |
5 V3A/9V2A/12V1.5A(max) |
|||||
|
3.DC output |
100W 17 . 8V 5.62A(Max) |
150W 17 . 8V 8.43A(Max) |
200W 19.8V 10.2A(Max) |
|||
|
Open circuit voltage(Voc) |
21.2V |
21.2V |
23.6V |
|||
|
Short-circuit current(Isc) |
6.52A |
9.78A |
11.83A |
|||
|
1 032*540*5mm |
1 032*540*5mm |
2 175*520*5mm |
||||
|
Folded size |
546*540*15mm |
546*540*20mm |
546*520*25mm |
|||
|
Weight |
3 .3kgs |
4 .8kgs |
6 .5kgs |
|||
|
-40 ℃ ~+85 ℃ |
||||||
|
Power temperature coefficient |
-0.39 to -0.29 %/ ℃ |
|||||
|
Voltage temperature coefficient |
-0.29%/ ℃ |
|||||
|
Current temperature coefficient |
+0.05%/ ℃ |
|||||
|
Nominal Operating Cell Temperature |
45 ± 2 ℃ |
|||||
|
Measured at STC Condition: irradiance: 1000W /m2-AM1.5 Spectrum-Temperature: 25 ℃ |
||||||
