- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Fujian, China
-
Dimension(Long * Breadth * High):
-
3700*1994*2160mm
-
Machine Weight:
-
3350 kg
-
Bucket capacity:
-
0.55cbm, 0.55m3
-
Color:
-
Customer's Requiement
-
Engine:
-
Weichai dutz
-
Item:
-
4.5ton skid steer loader
-
Fuel tank capacity:
-
85L
-
Operating weight:
-
4280kg
-
Rated operating capacity:
-
1500kg
-
Wheelbase:
-
1500mm
-
Certification:
-
CE ISO
Quick Details
-
Engine Brand:
-
WEICHAI
-
Power:
-
70 KW
-
Brand Name:
-
LTMG
-
Place of Origin:
-
Fujian, China
-
Dimension(Long * Breadth * High):
-
3700*1994*2160mm
-
Machine Weight:
-
3350 kg
-
Bucket capacity:
-
0.55cbm, 0.55m3
-
Color:
-
Customer's Requiement
-
Engine:
-
Weichai dutz
-
Item:
-
4.5ton skid steer loader
-
Fuel tank capacity:
-
85L
-
Operating weight:
-
4280kg
-
Rated operating capacity:
-
1500kg
-
Wheelbase:
-
1500mm
-
Certification:
-
CE ISO
1. Since its minimum turning radius is less than half of the same level of articulated loaders, it is especially suitable for operations in narrow sites such as urban infrastructure, roads or construction sites, workshops, warehouses, docks, ship decks and
even cabins.
2. Adopting all-wheel drive and no inter-wheel differential is conducive to work on undulating ground.
3. Different working devices can be replaced or hooked up at the job site in an instant, generally only a few minutes
4. Used for logistics support, site cleaning and project finishing operations of large construction machinery.
5. It can be used as a mobile pump station to provide a power source for hydraulic tools such as hand-held hydraulic picks.
6. In road protection, it can be directly
used for snow removal and cleaning operations. With snow removal and deicing accessories, the sliding equipment can quickly clear
large areas of snow and icing, while benefiting from the mobility of the equipment itself, ensuring Effective large-scale work of
related equipment.
Advantages
|
Model
|
LTS65
|
LTS75
|
|
Operating load (kg)
|
1000
|
1050
|
|
Max Speed（km/h）
|
’12/18
|
’12/18
|
|
Rated flux (L/min)
|
75
|
80
|
|
High Flow Flux (L/min)
|
|
120
|
|
Tire（track） model
|
320X84
|
320 X 84
|
|
Rated power (Kw)
|
55
|
55
|
|
Fuel tank capacity (L)
|
80
|
90
|
|
self weight bucket (kg)
|
3800
|
3800
|
|
Bucket capacity (m3)
|
0.5
|
0.5
|
|
Overall operating height (mm)
|
3480
|
3480
|
|
Height to bucket hinge pin (mm)
|
2900
|
2900
|
|
height to top of cab (mm)
|
2150
|
2150
|
|
Height to bottom of level bucket(mm)
|
2730
|
2730
|
|
Overall length without bucket（mm）
|
2750
|
2750
|
|
overall length with bucket(mm)
|
3500
|
3500
|
|
Dumping angle at maximum height(° )
|
40
|
40
|
|
Dumping height(mm)
|
2230
|
2230
|
|
Dumping reach(mm)
|
715
|
715
|
|
Rollback of bucket on ground(° )
|
30
|
30
|
|
Rollback of bucket at full height(° )
|
104
|
104
|
|
Wheelbase(mm)
|
1500
|
1500
|
|
Ground clearance(mm)
|
200
|
200
|
|
Angle of departure(° )
|
20
|
20
|
|
Front turning radius without bucket(mm)
|
1298
|
1298
|
|
Front tuning radius(mm)
|
2010
|
2010
|
|
Rear tuning radius(mm)
|
1714
|
1714
|
|
Rear axle to bumper (mm)
|
890
|
890
|
|
Tread width,center line to center line (mm)
|
1462
|
1462
|
|
Width (mm)
|
1782
|
1782
|
|
Bucket width (mm)
|
1830
|
1830
|
OEM/ODM

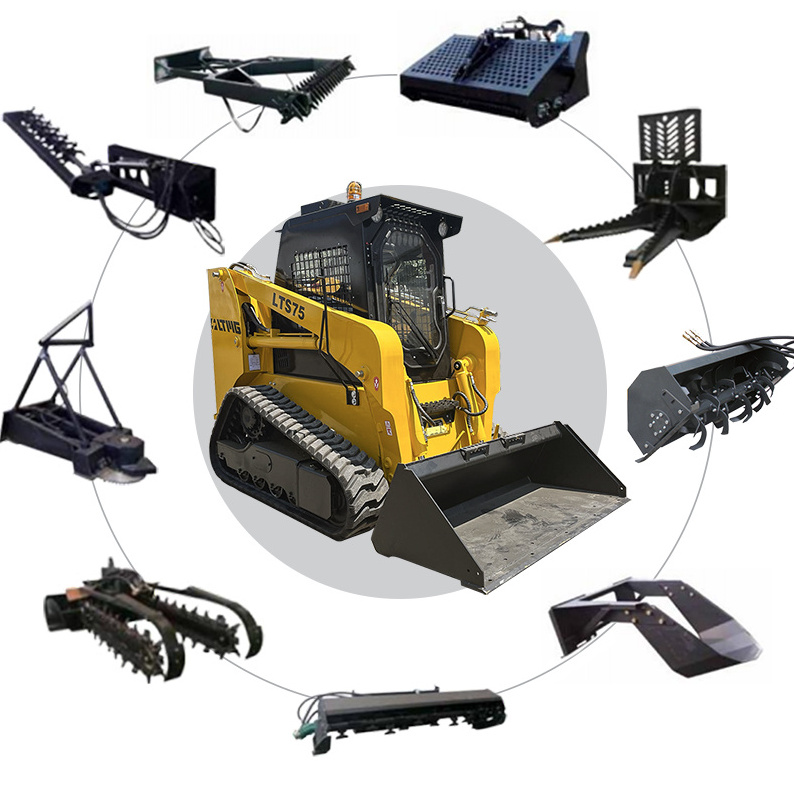

Optional Attachment
