Products
Security arch metal detector door and portable door frame metal detector for sale from China walkthrough metal detector factory
Security arch metal detector door and portable door frame metal detector for sale from China walkthrough metal detector factory
Security arch metal detector door and portable door frame metal detector for sale from China walkthrough metal detector factory
Security arch metal detector door and portable door frame metal detector for sale from China walkthrough metal detector factory
Security arch metal detector door and portable door frame metal detector for sale from China walkthrough metal detector factory
Security arch metal detector door and portable door frame metal detector for sale from China walkthrough metal detector factory
Security arch metal detector door and portable door frame metal detector for sale from China walkthrough metal detector factory
Security arch metal detector door and portable door frame metal detector for sale from China walkthrough metal detector factory

Security arch metal detector door and portable door frame metal detector for sale from China walkthrough metal detector factory

FOB Reference Price: Get Latest Price
≥1 Pieces
US $600
≥10 Pieces
US $590
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
GUARD SPIRIT
Model Number:
XYT2101S
Detecting zones:
6-33 zones for choice
Net weight:
70kg
Standard:
GB15210-2003,CE
LED alarm:
LED indicater bar on left and right door frame
Sound Alarm:
1-25s alarm time
Feature:
Infrared remoter control
Alarm sound intensity:
≥98db
Power consumption:
≤13.8W
Power supply:
AC150V~242V/50±5%HZ
Working environment:
temperature -20°C ~ +55 °C

Quick Details

Warranty:
1 year
Type:
walk through metel detector
Place of Origin:
Guangdong, China
Brand Name:
GUARD SPIRIT
Model Number:
XYT2101S
Detecting zones:
6-33 zones for choice
Net weight:
70kg
Standard:
GB15210-2003,CE
LED alarm:
LED indicater bar on left and right door frame
Sound Alarm:
1-25s alarm time
Feature:
Infrared remoter control
Alarm sound intensity:
≥98db
Power consumption:
≤13.8W
Power supply:
AC150V~242V/50±5%HZ
Working environment:
temperature -20°C ~ +55 °C

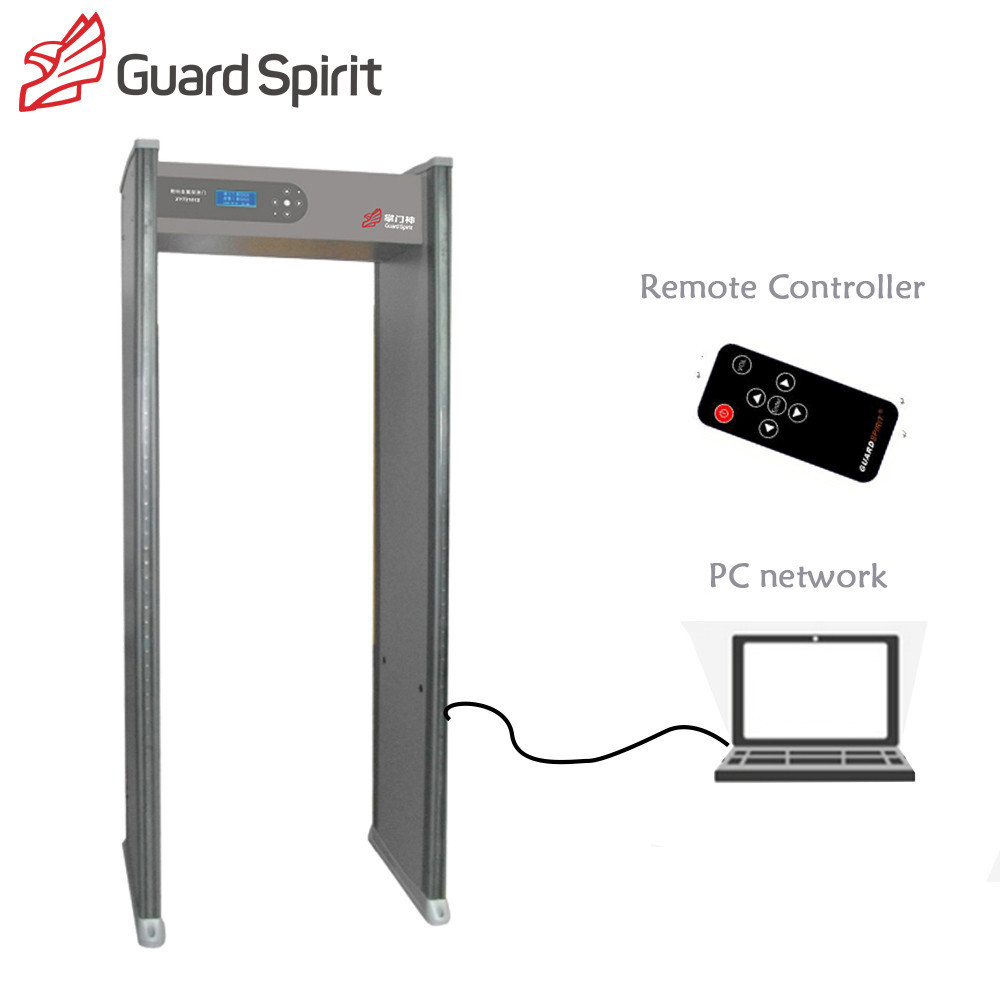

Security arch metal detector door and portable door frame metal detector for sale from China walkthrough metal detector factory

Product Description

MODEL: XYT2101S

Technical parameter

Electric current: AC85V~264V/50-60HZ

Power: <20W, low consume, low radiation

Net weight: 70KG

Workplace environment: -20°C~+45°C

Standard: GB15210-2003, CE

Standard External size: 2230mm(H)X835mm(W)X580mm(D)

Standard Internal size: 1990mm(H)X700mm(W)X500mm(D)

Characteristic & Function

  • LCD screen with Infrared remoter controller , both Chinese & English program, easy to operate.
  • Adopt advanced digital signal processing control replaced traditional analog signal control, better stability.
  • Program Self-diagnostic when power on, automatically checking left and right door panel, LED light and choose the best working frequency.
  • Detecting Zones: 16 detecting zones. Separate left and right side detection. Simultaneous alarm from multi- zones;
  • Sensitivity adjustable: Each zone has 255 degree sensitivity level, three patterns: High, middle, Low for different requirements. Preset the metal size, weight, volume, location to exclude the coin, key, belt.
  • Sound Alarm: 1-25s alarm time, 255 different sound volume for choose
  • LED light alarm: LED bar graph on left and right door frame, visible alarm simultaneously to ascertain the layout of metal articles
  • Password protection, only the authorized person can operate.
  • Anti- interference function , using advanced interactive transmitting and receiving to avoid interference, frequency range from 4K-8K to avoid frequency interference
  • 6 preset programs for security application versatility
  • Automatically count passengers and alarm times
  • Microprocessor control on top unit, anti-interference and self-diagnose transmission channel to avoid internal and external interference.
  • Easy assembly: designed with only 2 pieces cables and 8 screws, Simply-to-follow instruction.
  • Harmless to human body : is harmless with heart peacemaker, pregnant women, magnetic floppy, recording tapes, etc.
  • For option : Battery backup , 4 hours
  • For option : Network support

Application

The XYT2101S is designed to Airport, Banks, Embassies, Entertainment environments, factories, stores,

Gymnasiums, Exhibition Centers for luxurious appearance

(For more details,please feel free to contact with me on-line)
