Quick Details
-
Brand Name:
-
ANTISHICNC
-
Voltage:
-
Inquiry us
-
Dimension(L*W*H):
-
1600x1200x1800 mm
-
Weight (KG):
-
1500
-
Power (kW):
-
1.5
-
Diamond grinding wheel spindle:
-
BT40/HSK50/or customized
-
Diameter of diamond grinding wheel:
-
350MM
-
Diamond grinding wheel minimum diameter:
-
50MM
-
Maximum width of diamond grinding wheel:
-
40mm
-
Diamond grinding wheel speed:
-
0-1500RPM (infinitely variable speed)
-
Diamond arc size:
-
0.05-40MM
-
Dressing wheel (silicon) diameter:
-
180X10X32MM
-
Payment:
-
T/T
-
PACKING:
-
Factory Standard
-
After-sales Service Provided:
-
Yes
Quick Details
-
Wheel Size(mm):
-
180x10x32
-
Year:
-
2024
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ANTISHICNC
-
Voltage:
-
Inquiry us
-
Dimension(L*W*H):
-
1600x1200x1800 mm
-
Weight (KG):
-
1500
-
Power (kW):
-
1.5
-
Diamond grinding wheel spindle:
-
BT40/HSK50/or customized
-
Diameter of diamond grinding wheel:
-
350MM
-
Diamond grinding wheel minimum diameter:
-
50MM
-
Maximum width of diamond grinding wheel:
-
40mm
-
Diamond grinding wheel speed:
-
0-1500RPM (infinitely variable speed)
-
Diamond arc size:
-
0.05-40MM
-
Dressing wheel (silicon) diameter:
-
180X10X32MM
-
Payment:
-
T/T
-
PACKING:
-
Factory Standard
-
After-sales Service Provided:
-
Yes

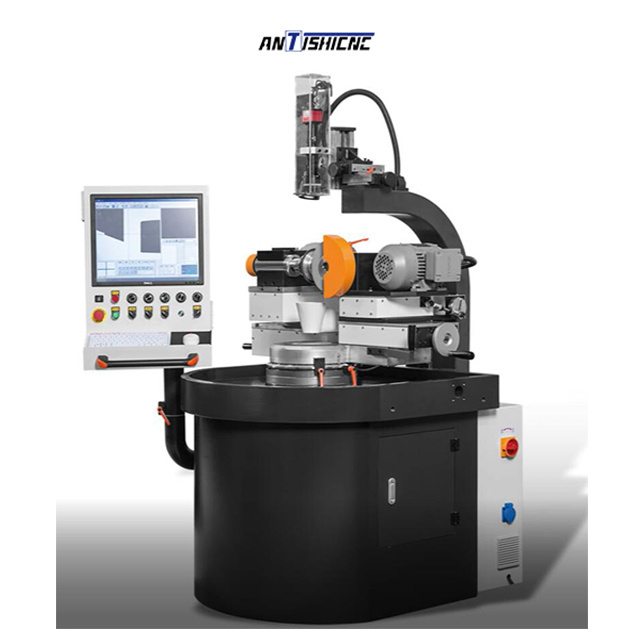

ANTISHICNC X3 Diamond Dresser for Grinding Wheel Dresser CBN Wheel Truing and Dressing Machine China Super High Quality
Diamond Wheel Components (Dressed Wheel Components)
|
Diamond seconds wheel spindle interface
|
Optional according to
customer requirements
|
|
diamond grinding wheel diameter
|
φ420 mm
|
|
Small diameter diamond grinding wheel
|
φ20mm
|
|
Maximum thickness of diamond seconds wheel
|
20 mm
|
|
Dressing wheel aperture
|
φ31.75mm
|
|
Spindle speed of diamond grinding wheel
|
50-1000rpm
(Step-less speed regulation)
|
|
Diamond grinding wheel spindle cross slide X working stroke
|
135 mm
|
|
Diamond end wheel spindle cross slide X additional manual stroke
|
150 mm
|
|
Diamond grinding wheel spindle cross slide Y working stroke
|
135 mm
|
|
Diamond grinding wheel spindle cross slide Y additional manual stroke
|
150 mm
|
|
X, Y cross slide magnetic scale resolution
|
0.001mm
|
|
Diamond grinding wheel can trim arc radius
|
R0.1-30mm
|
Silicon Carbide Wheel Components (Dressing Wheel Components)
|
Dressing wheel (SIC) size
|
φ180×10×φ31.75 mm
|
|
Dressing wheel speed
|
250-2500 rpm(Stepless speed regulation)
|
|
Dressing wheel swing times
|
0-50/per minute (adjustable speed)
|
|
Dressing wheel left and right swing distance
|
0-45/mm(adjustable）
|
|
total power
|
2.0KW
|
|
Silicon carbide grinding wheel motor
|
0.75KW
|
|
Dressed diamond wheel motor
|
0.75KW
|
|
Reciprocating swing motor power
|
25W
|
Product Description
ANTISHICNC X3 Diamond Dresser for Grinding Wheel Dresser CBN Wheel Truing and Dressing Machine China Super High Quality
Features
X3 Grinding Wheel Dressing Machine can dress diamond/CBN grinding wheels, and can also dress plane, side, angle, outer arc and forming grinding wheels. Single-piece grinding wheel and multi-piece grinding wheel combination can be used at the same time.
This machine provides simple and high-efficiency dressing on the diamond grinding wheel/CBN grinding wheel and the grinding wheel shaft composed of several grinding wheels.
The machine is not only easy to operate, but also has high precision.
Features
The machine tool uses the principle of the speed difference between the dressed grinding wheel and the dressing wheel to realize the shape dressing of the dressed grinding wheel.
The grinding wheel of the machine tool spindle is used as a diamond grinding wheel or CBN grinding wheel to be dressed, and the grinding wheel installed on the accessory is used as a dressing grinding wheel, that is, a green silicon carbide grinding wheel.
The two directions of the dressing wheel can be adjusted, that is, X axis and Y axis.
The dressing wheel can be adjusted in three directions, that is, the rotation of the A axis, the X1 axis and the Y1 axis, and the reciprocating swing of the frequency conversion speed regulation. In addition, the rotation and positioning between the X1 axis and the Y1 axis can realize the dressing of the grinding wheel. Do a 180° rotation.
The machine tool is equipped with CCD optical measurement system, grating ruler digital display measurement system, 10 to 100 times magnification system, and liquid crystal display.
