Autel 2023 Newest G-BOX2 Accessory Tool Key Programming Adapter for Mercedes-Benz/for BMW Writing Boot Mode Bench Method

Why Buy Autel G-BOX --- Small is Smart!

1.  Fit for MERCEDES-BENZ ALL KEYS LOST, FASTER PASSWORD CALCULATION. 8X TIMES FASTER PASSWORD CALCULATION FOR EIS W172, W204, W207; 4X TIMES FASTER PASSWORD CALCULATION FOR EIS W209, W211, ETC.

2.  Fit for MERCEDES-BENZALL KEYS LOST, NO MORE REPEATED INSERTIONS AND REMOVALS OF IR SIMULATOR W164/-2008, W251/-2008, W164/2009-, W169, W251/2009, W216, W221(partial), W202(K)/W208(K)/W210(K), W203(K)/W463(K)

3.  Fit for MERCEDES-BENZ ALL KEYS LOST, CAN BE PROGRAMMED ON THE VEHICLE WITHOUT REMOVING THE EIS EXCEPT FOR EIS W164 / -2008, W251 / -2008, W221, W202 (K) / W208(K) /W210(K), AND W203 (K) / W463 (K), ALL OTHER EISS CAN BE PROGRAMMED ON THE VEHICLE DIRECTLY.

4.  Fit for MERCEDES-BENZ ALL KEYS LOST, BMW DME / DDE ISN READING AND WRITING IN BOOT MODE

100% Original Autel G-BOX2 Tool for Merc-edes B-en-z All Key Lost Work with Autel MaxiIM IM608/IM508

Autel G-BOX2 Description:

The G-BOX2 realizes fast mode on vehicle and bench when all keys of M-erc-edes-Be-nz vehicles using ths DAS3 EIS/EZS are lost. The use of the G-BOX2 reduces the time needed and eliminates the process of insertion and removal.
The G-BOX2 can read and access most engines manufactured by Bo-sch including EDS/ MEx17 series engines used in B-M-W and Vo-lks-wagen Vehicles. This capability supports the ability to perform adaptions when all keys are lost and engine is replaced.
The G-BOX2 is compatible with the Autel's advanced diagnostic tablets support IMMO and key programming functions.

Autel G-Box Main Features:

• Autel G-BOX2 Key Programming Adapter
• Mercedes-Benz All Keys Lost, Faster Password Calculation
• Mercedes-Benz All Keys Lost, No More Repeated Insertions and Removals of IR Simulator
• Mercedes-Benz All Keys Lost, Can Be Programmed on the Vehicle Without Removing the EIS
• BMW DME/DDE ISN Reading and Writing in Boot Mode or Bench Method
• Reduce time reading W204 ECU data & W207 EIS by over 85%
• No need to remove and reinsert the key for W221 & W164 after 2009 models
• Fit For BMW DME / DDE ISN reading and writing in boot mode
• G-Box is compatible with both the Autel MaxiIM IM608 and IM508 with XP400, also compatible with Auro IM600 and Auro IM100 with XP400

How does Autel G-Box Work?

A. OBDII Operation When All Keys of Mercedes-Benz Vehicle Are Lost

(This method is suitable for Mercedes-Benz W204 , W207, W216 and W164 EISs after the year 2009)

1. Connect the G-Box to vehicles's OBDII

2. Remove the fuse of vehicle EIS, Connect the Relay ports to the fuse using the supplied fuse cable

3. When the vehicle has an ELV, connect the K7 port and ELV plug using the supplied K-line cable

4. Connect the G-Box to the Autel Diagnostic Tablet

B. Desktop Operation When All Keys of Mercedes-Benz Vehicle are Lost

(This Method is suitable for all Mercedes-Benz EISs that are already supported by Autel Diagnostic Tablet.)

1. Connect the G-Box to the Mercedes-Benz EIS using the supplied DB15 Cable

2. Connect to the DC port of G-Box using a power adapter (DV 12V)

3. Connect the G-Box to the Autel Diagnostic Tablet

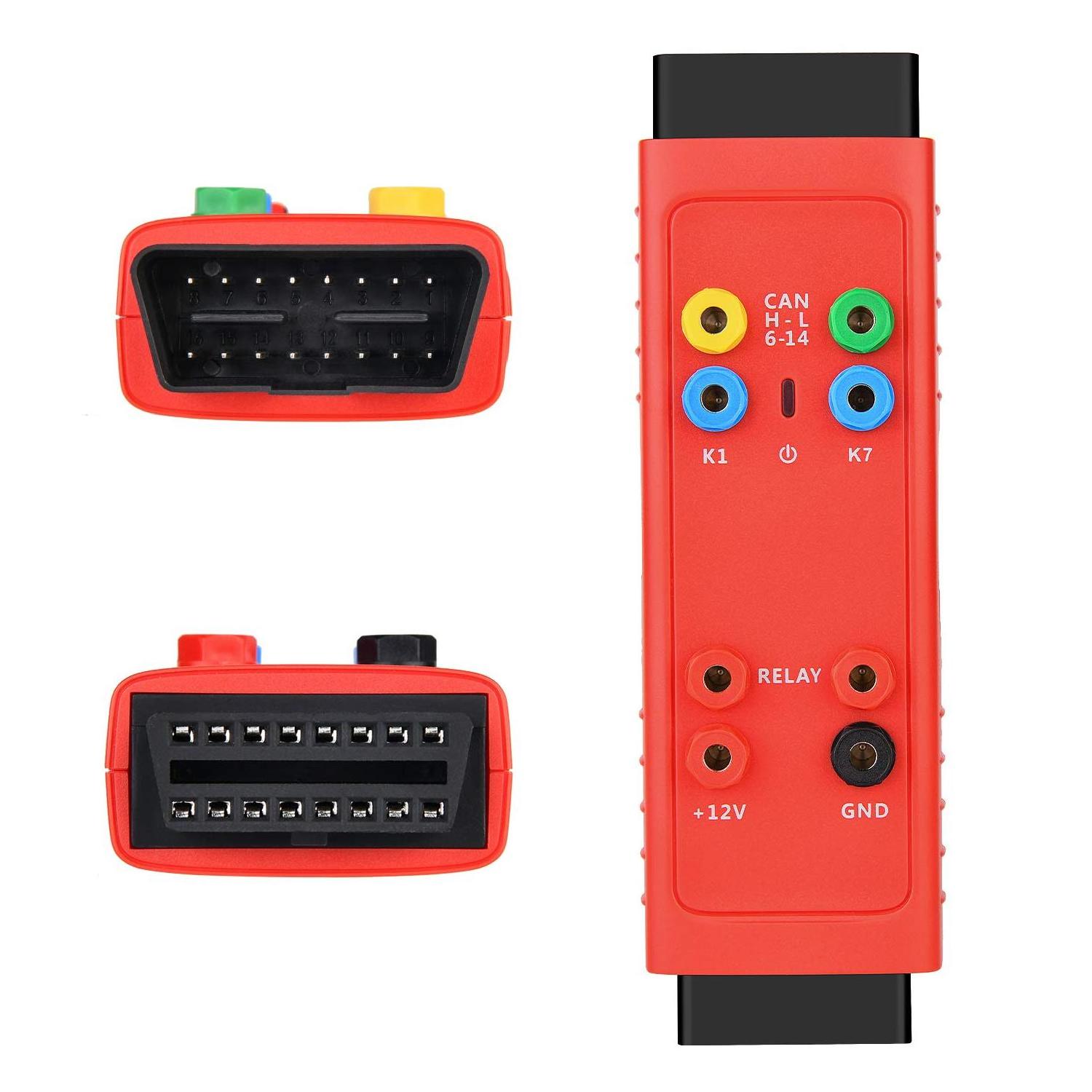

1. DC Port-provides + 12DV power supply

2. CAN-H port-universal CAN bus interface,connects with OBDII PIN6

3. K1 port-universal K-line interface,connects with OBDII PIN1

4. Status Indicator-indicates the current operating status

5. Relay ports-connect with dedicated relay cables

6. +12V power port-universal power input/out port

7. OBDII Connector-connects to the vehicle's OBDII directly or via a dedicated extension cable

8. OBDII Female connector-connects to the main cable of Autel Diagnostic Tablet

9. CAN-L port-universal CAN bus interface,connects with OBDII PIN14

10. K7 port-universal k-line interface connects with OBDII PIN7

11. GND port-universal power input/output port

12. OBD 15 port-used with dedicated BD15 cable for reading and writing multiple types of ECUs

PROFESSIONAL G-BOX2 For Benz

Supports Mercedes Benz All Keys Lost, faster calculate password

Supports IM608 or IM508 with XP400

Used for Faster Mercedes ECU data and EIS password calculation

Mercedes DAS3 can EIS/EZS all keys lost

Reduces reading time of W204 ECU data & W207 EIS by over 85%

No need to remove and reinsert the key for W221 & W164 after 2009 models

Powerful G-BOX2

Supports fast mode on vehicle and bench when all keys of

Mercedes-Benz vehicles using the Das3 EIS/EZS are lost.

Reads and writes Bosch engine ECU on F classis of BMW

and MQB of Volkswagen.

With the Autel's Advanced Diagnostic Tablets supporting

IMMO and Key programming functions.

SUPPORT Autel G-BOX2

Work on Mercedes-Benz vehicles with DAS3 EIS/EZS in AKL.

Can support Mercedes All Key lost BMW DME Reading.

Specially designed for Mercedez-Benz vehicles with DAS3 CAN EIS/EZS in AKL.

Use with both the Autel MaxiIM IM608, IM508 and Auro IM600.

Reduce the time for reading the ECU data from W204 and W207 EISs by over 85%.

Autel G-BOX2 Package List:

1 x Autel G-BOX2

1 x DB15 Cable

1 x K-Line Cable

1 x Fuse Cable

2 x Fuse (5A)

2 x Clamp Cable

1 x OBDII Extension Cable

1 x Quick Reference Guide
