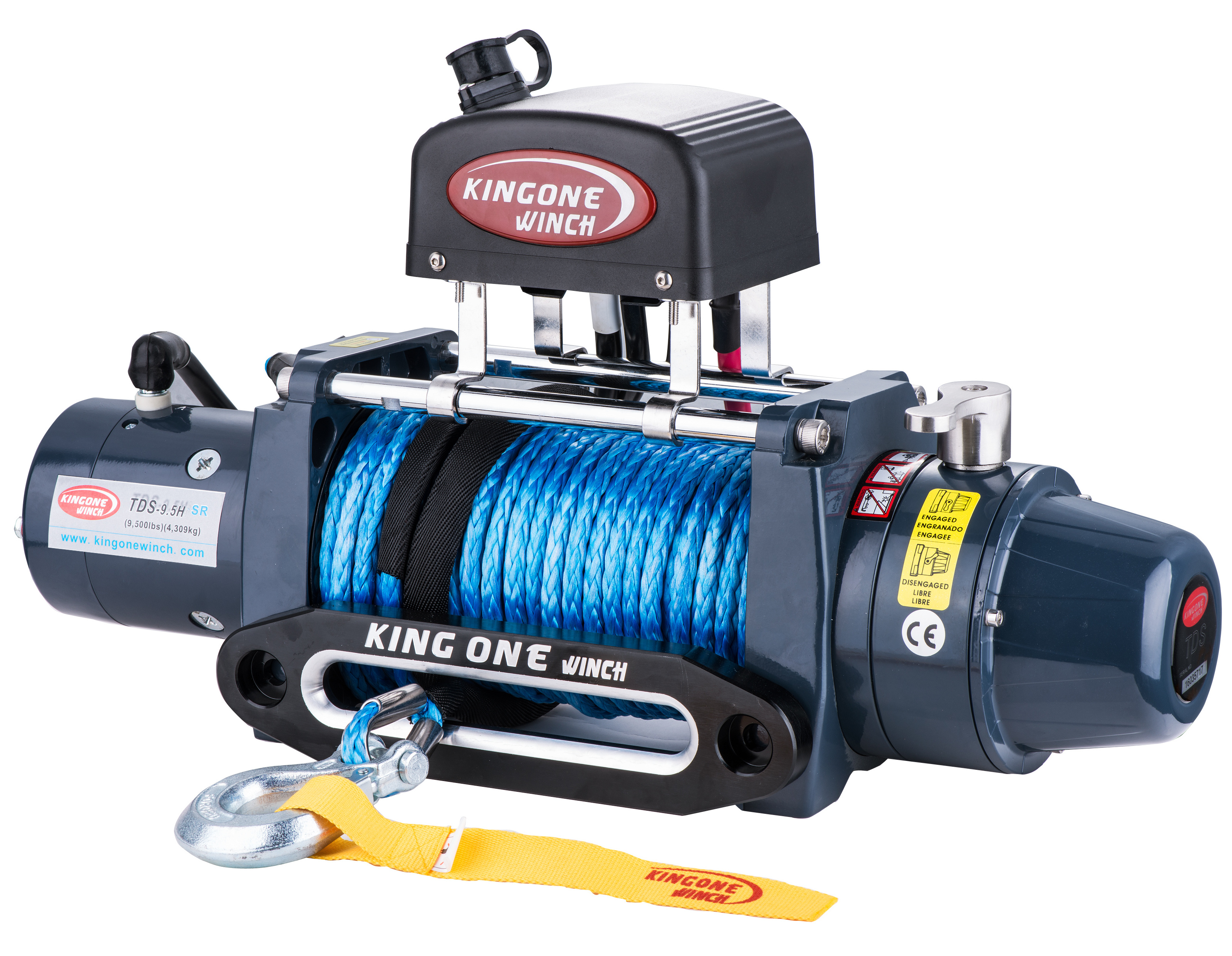

SPECIFICATION
|
|
Line pull:
4,309kgs/9,500lbs
|
|
Motor: 1
2V/5.2HP, 24V/3.2HP
|
|
Gear Train:
Three stage
|
|
Gear Ratio:
156:1
|
|
Freespooling Clutch:
Rotating ring gear
|
|
Wire Rope Size:
Φ11/31"×90'(
Φ9mm×27.4m
)
|
|
Wire Rope Type:
Aircraft A7×19
|
|
Drum Size:
Φ2.5"×9"(
Φ63.5mm×229mm)
|
|
|
LINE PULL
|
|
Layer of Wire Rope
|
Max Line Pull
|
|
1
|
9,500lbs/4,309kgs
|
|
2
|
7,800lbs/3,500kgs
|
|
3
|
6,550lbs/2,977kgs
|
|
4
|
5,700lbs/2,578kgs
|
|
|
LINE SPEED AND AMP DRAW(1st layer of rope on the drum)
|
|
Load
|
Line Speed
|
AMP Draw(12V)
|
AMP Draw(24v)
|
|
|
|
No Load
|
64FPM/19.5MPM
|
40
|
60
|
|
|
|
2,000lbs/907kgs
|
15.4FPM/4.7MPM
|
150
|
116
|
|
|
|
4,000lbs/1,814kgs
|
13.1FPM/4.0MPM
|
187
|
168
|
|
|
|
6,000lbs/2,722kgs
|
11.2FPM/3.4MPM
|
246
|
220
|
|
|
|
8,000lbs/3,650kgs
|
9.5FPM/2.9MPM
|
314
|
260
|
|
|
|
9,500lbs/4,309kgs
|
8.2FPM/2.5MPM
|
370
|
300
|
|
|
|
|
|
|
DIMENSIONS(mm)
|
|
|
|
|
|
|
|
STANDARD ACCESSORIES
|
|
Controller TA-0906
|
|
Wire Rope With Hook
|
|
4 Way Roller Fairlead TA-0903
|
|
Control Unit TA-0909
|
|
Mounting Hardware
|
|
Handsaver Strap
|
|
|
|
PACKAGE
|
|
Winch weight :
43kgs/94.8lbs
|
|
Gross Weight :
48kgs/105.8lbs
|
|
Box Dimension :
647×198×410 mm(25.5"×7.8"×16.1")
|
|
|
