Quick Details
-
Brand Name:
-
Juniper
-
Model Number:
-
EX2300-48T
-
Place of Origin:
-
Beijing, China
-
Product name:
-
network Switch
-
Part Number:
-
EX2300-48T
-
Network Ports:
-
48x 1 Gigabit Ethernet RJ-45
-
Uplink Ports:
-
4x 10 Gigabit Ethernet SFP+
-
Management Ports:
-
1x RJ-45 Console, 1x Gigabit Ethernet Management, 1x mini-USB Console,
-
Power Supply:
-
1x Internal AC Power Supply
-
Forwarding Rate:
-
130 Mpps
-
Warranty:
-
1year
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
176 Gbps
-
Brand Name:
-
Juniper
-
Model Number:
-
EX2300-48T
-
Place of Origin:
-
Beijing, China
-
Product name:
-
network Switch
-
Part Number:
-
EX2300-48T
-
Network Ports:
-
48x 1 Gigabit Ethernet RJ-45
-
Uplink Ports:
-
4x 10 Gigabit Ethernet SFP+
-
Management Ports:
-
1x RJ-45 Console, 1x Gigabit Ethernet Management, 1x mini-USB Console,
-
Power Supply:
-
1x Internal AC Power Supply
-
Forwarding Rate:
-
130 Mpps
-
Warranty:
-
1year
Products Description

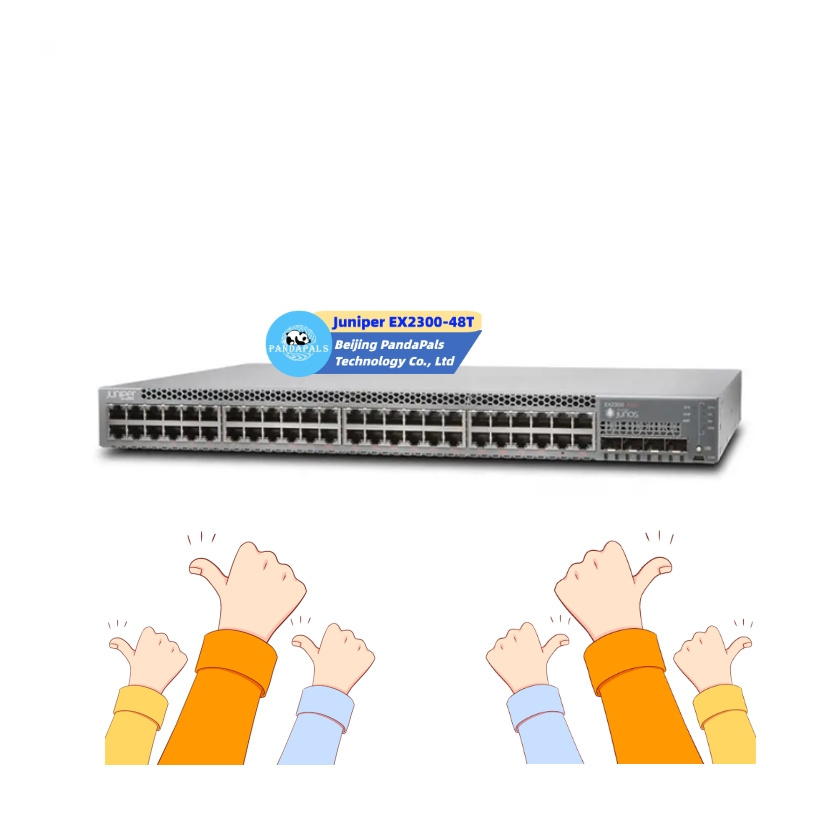

Juniper EX2300-48T Switch Overview:
EX2300-48T is a Juniper EX2300 switch with 48-port 10/100/1000BASE-T, 4 x 1/10GbE SFP/SFP+ (optics sold separately). EX2300 Ethernet Switch delivers a compact, high-density, cost-effective solution for small network environments where space and power are at a premium. With a small, 1 U footprint, the EX2300 is perfect for access-layer deployments in micro branches, retail and workgroup environments, and converged network access in larger networks.
Juniper
EX2300-48T
Switch:
* Network Ports : 48x 1 Gigabit Ethernet RJ-45
* Uplink Ports : 4x 10 Gigabit Ethernet SFP+
* Management Ports : 1x RJ-45 Console, 1x Gigabit Ethernet Management, 1x mini-USB Console, 1x Mini USB
* Power Supplies Included : 1x Internal AC Power Supply
* Switching Capacity : 176 Gbps
* Forwarding Rate : 130 Mpps
* MAC Address Table Size : 16000
* Rack Mounts : Included (1-RU)
* Model Number : EX2300-48T
* Part Number : EX2300-48T
* Uplink Ports : 4x 10 Gigabit Ethernet SFP+
* Management Ports : 1x RJ-45 Console, 1x Gigabit Ethernet Management, 1x mini-USB Console, 1x Mini USB
* Power Supplies Included : 1x Internal AC Power Supply
* Switching Capacity : 176 Gbps
* Forwarding Rate : 130 Mpps
* MAC Address Table Size : 16000
* Rack Mounts : Included (1-RU)
* Model Number : EX2300-48T
* Part Number : EX2300-48T
|
Juniper EX2300-48T Specification
|
|
|
|
Form factor
|
Fixed platform
Virtual Chassis configuration consisting of up to four switches Junos Fusion Enterprise Satellite device |
|
|
Ports
|
48-port 10/100/1000BASE-T, 4 x 1/10GbE SFP/SFP+ (optics sold separately)
|
|
|
Dimensions (W x H x D)
|
17.4 x 1.75 x 10.2 in (44.19 x 4.45 x 25.9 cm)
1 rack unit |
|
|
Backplane speed
|
80 Gbps
|
|
|
Data rate
|
176 Gbps
|
|
|
Throughput
|
130 Mpps (wire speed)
|
|
|
Resiliency
|
Integrated power supply and fans
|
|
|
Operating system
|
Junos OS
|
|
|
Traffic monitoring
|
sFlow
|
|
|
Quality-of-service (QoS) queues/port
|
8
|
|
|
MAC addresses
|
16,000
|
|
|
Jumbo frames
|
9216 bytes
|
|
|
IPv4 unicast / multicast routes
|
4096 / 2048
|
|
|
IPv6 unicast / multicast routes
|
2048 / 1024
|
|
|
Number of VLANs
|
4093
|
|
|
ARP entries
|
1500
|
|
