Quick Details
-
Travel (W-axis) (mm):
-
0 mm
-
Marketing Type:
-
Hot Product 2021
-
Positioning Accuracy (X axis) mm:
-
0
-
Positioning Accuracy (Y axis) mm:
-
0
-
Positioning Accuracy (Z axis) mm:
-
0
-
Range of Spindle Speed(r.p.m):
-
380 r.p.m
-
Production Capacity:
-
High
-
Place of Origin:
-
China
-
Brand Name:
-
JORI
-
Dimension(L*W*H):
-
320x330x850 mm
-
Weight (T):
-
0.07 T
-
Name:
-
Used Cylinder Boring Machine T8014A for reboring engine cylinders
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support, Free spare parts
-
Boring diameter:
-
65-140 mm
-
Spindle speed:
-
250, 380 r/min
-
Functions:
-
Boring
-
Packaging Details:
-
wooden cases
-
Max. boring depth:
-
300mm
-
Spindle feed:
-
0.11 mm/r
-
Motor Power (kw):
-
0.25
Quick Details
-
Table Travel (X) (mm):
-
140 mm
-
Table Travel (Y) (mm):
-
300 mm
-
Table Travel (Z) (mm):
-
0 mm
-
Travel (W-axis) (mm):
-
0 mm
-
Marketing Type:
-
Hot Product 2021
-
Positioning Accuracy (X axis) mm:
-
0
-
Positioning Accuracy (Y axis) mm:
-
0
-
Positioning Accuracy (Z axis) mm:
-
0
-
Range of Spindle Speed(r.p.m):
-
380 r.p.m
-
Production Capacity:
-
High
-
Place of Origin:
-
China
-
Brand Name:
-
JORI
-
Dimension(L*W*H):
-
320x330x850 mm
-
Weight (T):
-
0.07 T
-
Name:
-
Used Cylinder Boring Machine T8014A for reboring engine cylinders
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support, Free spare parts
-
Boring diameter:
-
65-140 mm
-
Spindle speed:
-
250, 380 r/min
-
Functions:
-
Boring
-
Packaging Details:
-
wooden cases
-
Max. boring depth:
-
300mm
-
Spindle feed:
-
0.11 mm/r
-
Motor Power (kw):
-
0.25
Product Description

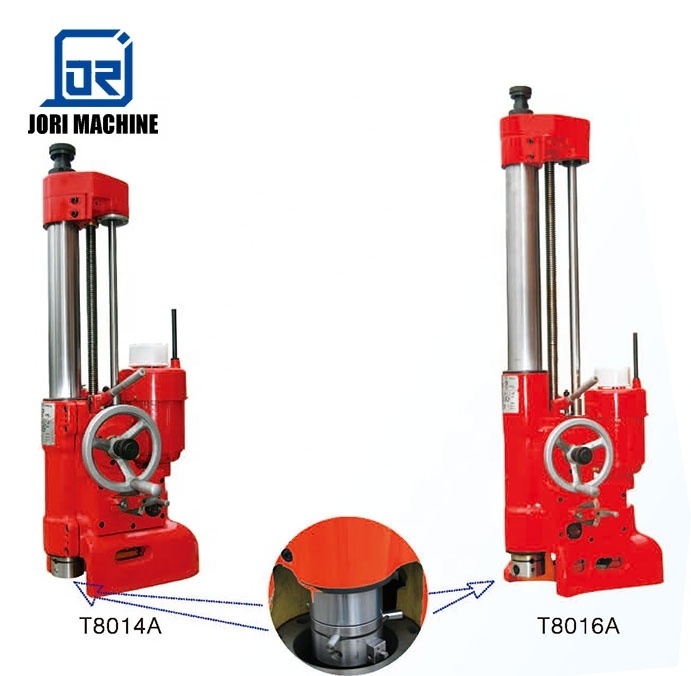

The boring machine is mainly used for reboring engine cylinders of motor cycles, automobiles and middle & small-tractors.
1. Reliable performance.
2. Widely use, processing accuracy high productivity.
3. Easy and Flexible operation .
4. Good rigidity , amount of cutting.
|
Model
|
T806
|
T807
|
T806A
|
T808A
|
|
|
Boring diameter
|
Φ39-Φ60 mm
|
Φ39-Φ70 mm
|
Φ46-Φ80 mm
|
Φ50-Φ85 mm
|
|
|
Max. boring depth
|
160 mm
|
|
160 mm
|
170 mm
|
|
|
Spindle speed
|
486 r/min
|
|
486 r/min
|
394 r/min
|
|
|
Spindle feed
|
0.09 mm / r
|
|
0.09 mm / r
|
0.10 mm / r
|
|
|
Spindle quick reset
|
Manual
|
|
Manual
|
Manual
|
|
|
Motor Voltage
|
220/380 V
|
|
220/380 V
|
220/380 V
|
|
|
Motor Power
|
0.25 Kw
|
|
0.25 Kw
|
0.25 Kw
|
|
|
Motor Speed
|
1440 r/min
|
|
1440 r/min
|
1440 r/min
|
|
|
Overall dimensions
|
330x400x1080mm
|
|
330x400x1080mm
|
350x272x725mm
|
|
|
Machine weight
|
80kg
|
|
80kg
|
48kg
|
|
|
Model
|
T8014A
|
T8016A
|
|
Boring diameter
|
65 – 140 mm
|
80-165 mm
|
|
Max. boring depth
|
300 mm
|
400 mm
|
|
Spindle speed
|
250, 380 r/min
|
200, 300 r/min
|
|
Spindle feed
|
0.11mm/r
|
0.12 mm/r
|
|
Spindle quick reset
|
636 mm/sec
|
780 mm/sec
|
|
Overall dimensions
|
320x330x850 mm
|
365x345x1100 mm
|
|
Machine weight
|
62 kg
|
85 kg
|
