Quick Details
-
Warranty:
-
1 years
-
Brand Name:
-
/
-
Model Number:
-
VB7603-600
-
Place of Origin:
-
Guangdong, China
-
Horsepower:
-
/
-
Structure:
-
DC Diaphragm Pump
-
Cable Length:
-
28cm
-
Outlet Size:
-
76mm
-
Power:
-
69.6W, 69.6W
-
motor:
-
/
-
Product Name:
-
DC Diaphragm Pump
-
Rate Voltage:
-
24 VDC
-
Pump body material:
-
Engineering plastic
-
Max. Flow:
-
3L/Min
-
Max. Lift:
-
120 M
-
Current:
-
2.9A
-
IP Protection Level:
-
IP5X
-
Weight:
-
2.2kg
-
Insulation Class:
-
Class180
Quick Details
-
Application:
-
Water Treatment Solutions, Medical equipment, Refrigeration equipment, Atomization equipment, Water purification equipment
-
Pressure:
-
High Pressure
-
Voltage:
-
24V
-
Warranty:
-
1 years
-
Brand Name:
-
/
-
Model Number:
-
VB7603-600
-
Place of Origin:
-
Guangdong, China
-
Horsepower:
-
/
-
Structure:
-
DC Diaphragm Pump
-
Cable Length:
-
28cm
-
Outlet Size:
-
76mm
-
Power:
-
69.6W, 69.6W
-
motor:
-
/
-
Product Name:
-
DC Diaphragm Pump
-
Rate Voltage:
-
24 VDC
-
Pump body material:
-
Engineering plastic
-
Max. Flow:
-
3L/Min
-
Max. Lift:
-
120 M
-
Current:
-
2.9A
-
IP Protection Level:
-
IP5X
-
Weight:
-
2.2kg
-
Insulation Class:
-
Class180
Products Description
|
Product Name
|

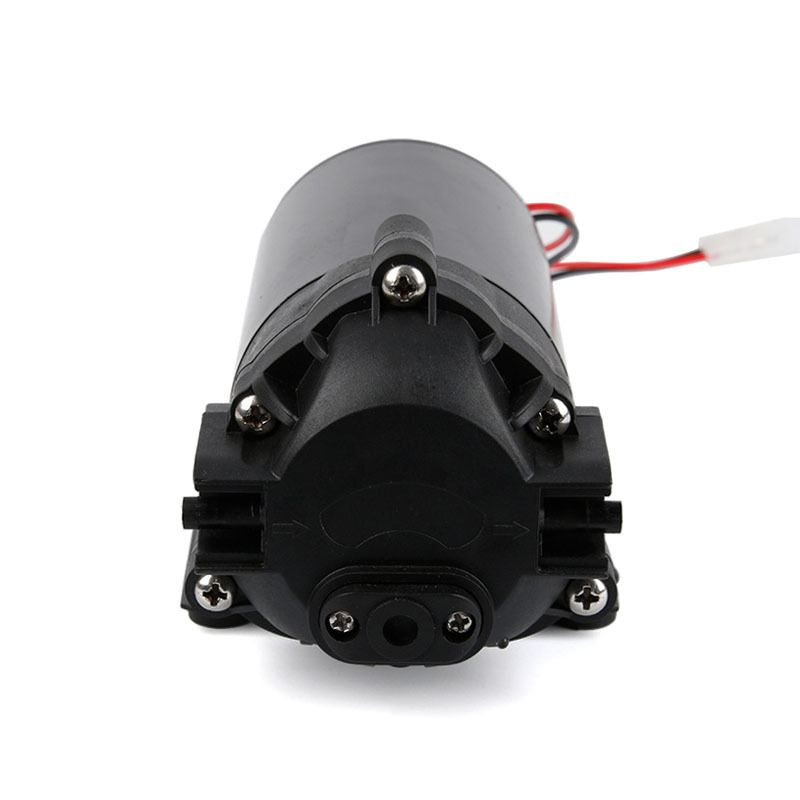

DC Diaphragm Pump
|
|
Model
|
VB7603-600
|
|
Pump Body Material
|
Engineering plastic
|
|
Size
|
10*8*16cm
|
|
Weight
|
2.2kg
|
|
Specification
|
Rate Voltage: 24 VDC; Max. Flow: 3L/Min; Max. Lift: 120 M; Current: 2.9A; Power: 69.6W.
|
|
IP Protection Level
|
IP5X
|
|
Insulation Class
|
Class180
|
|
Ambient Temperature
|
-40 ~ 45°C
|
|
Medium Temperature
|
0 ~ 60°C
|
|
Liquid
|
Water, beverage etc.
|
|
Cable Length
|
28cm
|
|
Certifications
|
CQC, CE, ROHS etc.
|
|
Typical Applications
|
Medical equipment, Refrigeration equipment, Water purification equipment, Atomizing equipment.
|
|
Customized
|
Yes
|
Q: Can I buy samples before placing orders?
A: Yes. We accept sample orders, please feel free to contact us.
Q: What is your lead time?
A: It depends on the order quantity you placed. Usually we can delivery it within 5 days.
Q: What is the shipping method?
A: It could be shipped by sea, by air or by express (EMS, UPS, DHL, TNT, FedEx, etc.). Please confirm with us before placing
orders.
Q: Could you provide OEM&ODM service for water pumps and instruments?
A: Of course, including software, package, product logo, etc., consulting customer service for more details.
Q: What is the warranty period of the water pumps and instruments?
A: Normally it is 1 year, we have a professional after-sales service team, specific details can consult customer service.
Q: How do you guarantee the quality of water pumps and instruments?
A: Our products have ISO9001 quality system and ROHS/CE/CQC/CNAS/MA/IAF standards. All our products pass strict
QC inspection in the production process. In particular, We can achreve 100% detection rate before shipment.
