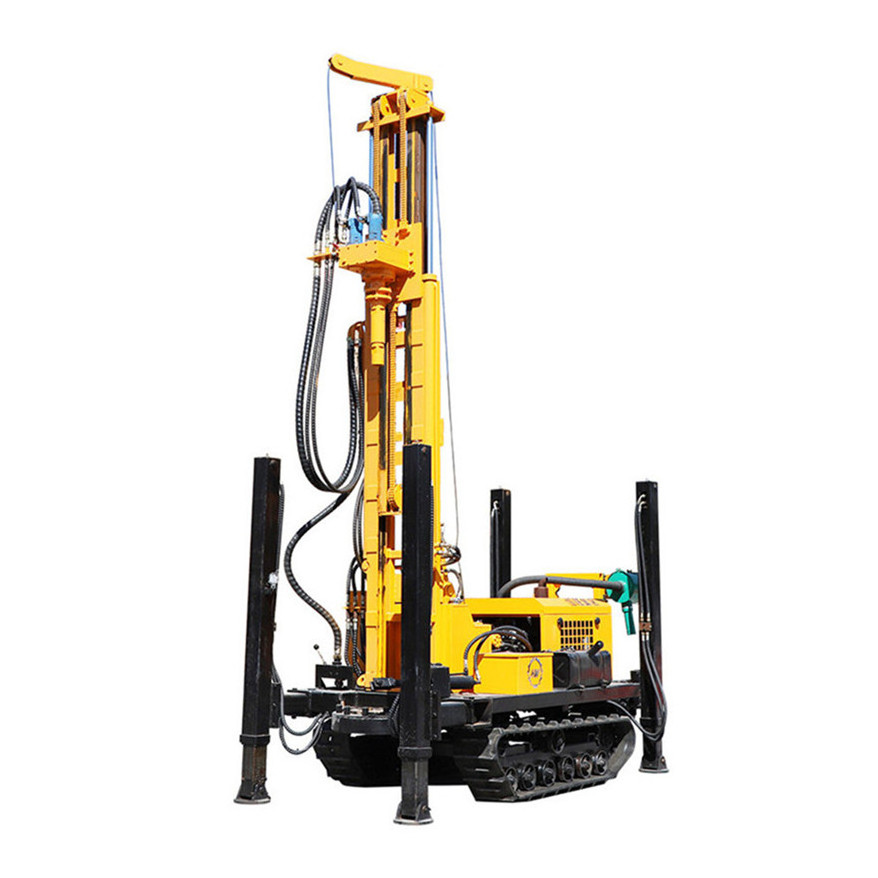

land drilling rig/pneumatic rock bolt drilling rig/second hand drilling rig manufacture factory

land drilling rig/pneumatic rock bolt drilling rig/second hand drilling rig manufacture factory

FOB Reference Price: Get Latest Price

≥1 Sets

US $20000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 6100*2200*2900

Weight:: 13 KG

Warranty:: 24 Months

After-sales Service Provided:: Overseas service center available

Drilling diameter:: 140-14000mm

Name:: pneumatic rock bolt drilling rig

One push stroke:: 6.6meters

Walking speed:: 2.5KM/H

Gradeability:: 30°

Using air compressor:: 1.7-3.5Mpa

Drill pipe diameter:: 102/108/114

Drill pipe length:: 1.5/2/3

Certification:: ISO

Quick Details

Place of Origin:: Shandong, China

Brand Name:: HW

Voltage:: Diesel

Dimension(L*W*H):: 6100*2200*2900

Weight:: 13 KG

Warranty:: 24 Months

After-sales Service Provided:: Overseas service center available

Drilling diameter:: 140-14000mm

Name:: pneumatic rock bolt drilling rig

One push stroke:: 6.6meters

Walking speed:: 2.5KM/H

Gradeability:: 30°

Using air compressor:: 1.7-3.5Mpa

Drill pipe diameter:: 102/108/114

Drill pipe length:: 1.5/2/3

Certification:: ISO

Product Description

Drilling Rock Speed:40M/Hour
Easy Operate
Competitive Price
Imported Accessories With CE

Water and air drilling rig is an efficient and multifunctional drilling equipment. It is mainly suitable for drilling water wells,
agricultural irrigation wells, geothermal air conditioning holes and other wells, especially suitable for water intake projects in
mountainous areas and rock formations. . The efficiency is ten times higher than that of traditional rotary drilling rigs, and the
economic benefits created for users are extremely considerable. In particular, it solves the difficulty in drilling the soil layer
with air DTH hammer, and the construction problem of the rotary drilling rig in the hard rock layer, gravel and pebble layer. It
can work efficiently under various geological structures and realize the perfect combination of water drilling and air drilling.

1. The drilling rig is mainly mechanically driven, and the others are hydraulically driven, using power. The overall power loss is
small and the drilling cost is low.

2. The drilling rig has more positive speed series and 14-500r/min speed range, and the output torque is 13428-250N.m.

3. The drilling rig has 2 reverse speeds for easy handling of accidents.

4. The drilling rig adopts a mechanical power head with a long-stroke double-speed mechanism, and the power head has a stroke of
3800mm, which is used to improve the drilling efficiency and reduce the occurrence of drill blocking and burning accidents.

5. The drilling rig uses double oil pumps for oil supply, a single pump is used when drilling, and a double pump is used for
confluence when lifting and lowering the drill; the power loss is small and the auxiliary time is short.

6. The drilling rig has advanced structure and reasonable layout, which is convenient for maintenance, maintenance and repair.

7. The tracked chassis is adopted, and the outrigger cylinder stroke is 1.5m, which can be loaded automatically, which is
convenient for transportation.

8. The drilling rig reserves some functional interfaces in the hydraulic system, which

The Weight(T)	13T
Dimensions(mm)	610022002900
The hole diameter(mm)	140-1400mm
Drilling Depth(m)	700meters
Once-time advance length(mm)	6600mm
Walking speed(Km/h)	2.5KM/H
Climbing angles(Max.)	30
Minimum clearance clearance(mm)	250
Using air pressure(Mpa)	1.7-3.5
Air consumption(m³/min)	17-35
Equipped capacitor(Kw)	115
Swing speed(rpm)	45-115
Swing torque(N.m)	8500-10500
Drill pipe diameter(mm)	Φ76 Φ89 Φ102
Drill pipe length(m)	1.5 2.0 3.0 6.0
Rig lifting force(T)	30

Pneumatic drill Exploration Well drill rig,water drilling machine 150 Model

The Weight(T)3
Dimensions(mm)4000*1450*2050
The hole diameter(mm)100-219
Drilling Depth(m)150
Once-time advance length(mm)6600

Walking speed(Km/h)0.8
Climbing angles(Max.)30

Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.45-2.5

Air consumption(m³/min)15-29

Swing speed(rpm)40-65
Swing torque(N.m)2600-4000
Drill pipe diameter(mm)Φ76 Φ89

Pneumatic drill Exploration Well drill rig,water drilling machine 180 Model

The Weight(T)4.5
Dimensions(mm)3800*1500*2200
The hole diameter(mm)140-254
Drilling Depth(m)180
Once-time advance length(mm)3400
Walking speed(Km/h)2.5
Climbing angles(Max.)30
Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.7-2.5
Air consumption(m³/min)17-31
Swing speed(rpm)40-65
Swing torque(N.m)3200-4600
Drill pipe diameter(mm)Φ76 Φ89

Pneumatic drill Exploration Well drill rig,water drilling machine 200 Model

The Weight(T)5.5

Dimensions(mm)1800*1700*2350
The hole diameter(mm)140-305
Drilling Depth(m)200
Once-time advance length(mm)3400
Walking speed(Km/h)2.5
Climbing angles(Max.)30
Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.7-3.0
Air consumption(m³/min)17-30
Swing speed(rpm)50-70
Swing torque(N.m)5000-6500
Drill pipe diameter(mm)Φ76 Φ89 Φ102

Pneumatic drill Exploration Well drill rig,water drilling machine 300 Model

The Weight(T)9
Dimensions(mm)5900*2000*2850
The hole diameter(mm)140-325
Drilling Depth(m)300
Once-time advance length(mm)6600
Walking speed(Km/h)2.5
Climbing angles(Max.)30
Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.7-3.3
Air consumption(m³/min)17-35
Swing speed(rpm)55-115
Swing torque(N.m)6200-8500
Drill pipe diameter(mm)Φ89 Φ102

Pneumatic drill Exploration Well drill rig,water drilling machine 600 Model

The Weight(T)12

Dimensions(mm)6000*2200*2850
The hole diameter(mm)140-350
Drilling Depth(m)600
Once-time advance length(mm)6600
Walking speed(Km/h)2.5
Climbing angles(Max.)30
Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.7-3.5
Air consumption(m³/min)17-35
Swing speed(rpm)45-115
Swing torque(N.m)8500-1100

Drill pipe diameter(mm)Φ89 Φ102 Φ114

Pneumatic drill Exploration Well drill rig,water drilling machine 800 Model

The Weight(T)13
Dimensions(mm)6100*2200*2900
The hole diameter(mm)140-400
Drilling Depth(m)700
Once-time advance length(mm)6600
Walking speed(Km/h)2.5
Climbing angles(Max.)30
Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.7-3.5
Air consumption(m³/min)17-42
Swing speed(rpm)55-120
Swing torque(N.m)8850-13500
Drill pipe diameter(mm) Φ102 Φ108 Φ114
