Quick Details
-
Brand Name:
-
Qishun
-
Dimension(L*W*H):
-
Determined by model
-
Weight:
-
1500 KG
-
Product name:
-
hammer crusher
-
Keyword:
-
Small Hammer Crusher
-
After-sales Service Provided:
-
Video Technical Support
-
Name:
-
Crusher Stone Machine
-
The Machines classification:
-
Building Stone Production Line
-
Raw material:
-
Stones Rocks Ores
-
Processed Materials:
-
200 Kinds Materials(<300 Mpa)
-
Function:
-
Mining Crusher Equipment
-
Color:
-
Customer Requirement
-
Applicaton:
-
mining
Quick Details
-
Application:
-
Construction
-
Capacity(t/h):
-
20t/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Qishun
-
Dimension(L*W*H):
-
Determined by model
-
Weight:
-
1500 KG
-
Product name:
-
hammer crusher
-
Keyword:
-
Small Hammer Crusher
-
After-sales Service Provided:
-
Video Technical Support
-
Name:
-
Crusher Stone Machine
-
The Machines classification:
-
Building Stone Production Line
-
Raw material:
-
Stones Rocks Ores
-
Processed Materials:
-
200 Kinds Materials(<300 Mpa)
-
Function:
-
Mining Crusher Equipment
-
Color:
-
Customer Requirement
-
Applicaton:
-
mining
Video Description

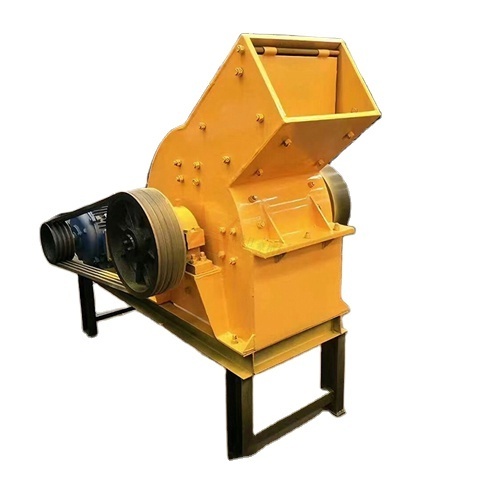

Hammer Crusher
Hammer crusher is a kind of equipment that will break materials 100-400mm in size to 10-15m below in the form of impact. Hammer crusher can not only be used in stone crusher factory, sand factory, but also can replace cone crusher used in mineral processing. Suitable for medium hardness below (less than or equal to 75 tons per hour) stone and brittle material small-scale crushing.
Parameters of Hammer Crusher
|
Model
|
speed(rpm)
|
feeding particle size(mm)
|
the grain size(mm)
|
capacity(t/h)
|
weight(t)
|
power(kw)
|
|
PC-400*300
|
1450
|
<=200
|
10
|
3-10
|
0.8
|
11
|
|
PC-600*400
|
1000
|
<=220
|
15
|
5-25
|
1.5
|
22
|
|
PC-800-600
|
980
|
<=350
|
15
|
10-50
|
3.1
|
55
|
|
PC-800*800
|
980
|
<=350
|
15
|
10-60
|
3.5
|
75
|
|
PC-1000*800
|
1000
|
<=400
|
13
|
20-75
|
7.9
|
115
|
Working Principle
The electric motor drives the rotor to rotate at high speed in the crushing chamber. The material is fed into the machine from the upper feeding port, and is crushed by the striking, impacting, shearing and grinding action of the high-speed hammer. In the lower part of the rotor, there is a sieve plate, in the crushed material smaller than the size of the sieve hole through the sieve plate discharge, larger than the size of the sieve hole of coarse particles to stay on the sieve plate to continue to be struck by the hammer and grinding, and finally through the sieve plate discharged out of the machine.
Product Show
Loading and delivery
Packing method
1.Small parts in wooden boxes
2. Large parts packed in plastic film
3.The whole big machine is packed in a container
Sea/air shipment
or by any means requested by the customer
Company Introduction
Henan Qishun Heavy Industry Machinery Co. The company mainly sells mineral processing equipment and gold processing equipment and accessories. Our company follows the enterprise spirit of people-oriented, honest management, and science and technology
innovation as the pioneer, and we always regard technology as the driving force and take the market as the guide to make our products first-class. In the sales of products, our first consideration is the interests of our customers. We pursue refined service, from pre-sales
consultation to mid-sales marketing and continuous improvement of after-sales service.
Henan Qishun Heavy Industry Machinery Co., Ltd. accumulates experience in practice, goes professional in experience, and achieves scale in professional skills. We hope to show our strength through your comprehensive comparison.
Factory
Office
Workshop
Affiliated Products
Jaw Crusher
Roller Crusher
Impact Crusher
Ball Mill
Wet Pan Mill
Shaking Table
FAQ
1. Are you manufacture or trading company?
We are factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
