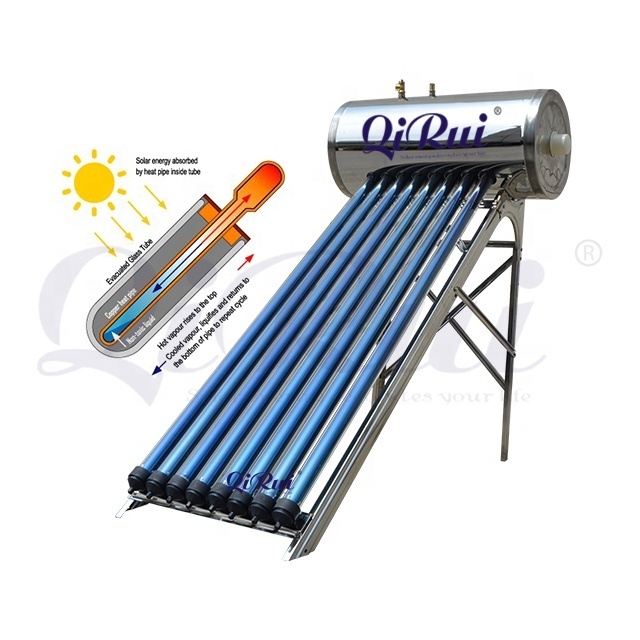

Through a thermosiphon effect (in which hot water rises), hot water circulates between the collectors and the water tank while
there is sun and is stored at the end of the day in an insulated tank.
- Product Details
- {{item.text}}
Quick Details
-
Circulation Type:
-
Indirect / Closed Loop (Active)
-
Capacity:
-
150
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
QIRUI/OEM
-
Model Number:
-
HIPS-150L
-
Inner tank:
-
stainless steel SUS304 or SUS316/diameter 360mm
-
Outer tank:
-
stainless Steel,stainless steel diameter 460mm
-
Insulation layer:
-
50~55mm Polyurethane
-
Vacuum tube:
-
58*1800mm Three Target Vacuum Tubes
-
Bracket:
-
stainless Steel,stainless steel 1.5mm, 0/20/27/38/45degree
-
heat preservation:
-
72 hours
-
Pressure:
-
8 Bar/ 116Psi
-
Certificate:
-
CE,ISO 9001,ISO14001,ISO45001,CCC,Solar Keymark
-
Heat Source:
-
Solar Heat Energy
-
Use:
-
Outdoor, Hotel, Bath, House, Kitchen, Shower, Bathroom
Quick Details
-
Warranty:
-
3 years
-
Application:
-
Car, RV, Outdoor, Hotel, Garage, Commercial, Household
-
Type:
-
Evacuated Tube
-
Circulation Type:
-
Indirect / Closed Loop (Active)
-
Capacity:
-
150
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
QIRUI/OEM
-
Model Number:
-
HIPS-150L
-
Inner tank:
-
stainless steel SUS304 or SUS316/diameter 360mm
-
Outer tank:
-
stainless Steel,stainless steel diameter 460mm
-
Insulation layer:
-
50~55mm Polyurethane
-
Vacuum tube:
-
58*1800mm Three Target Vacuum Tubes
-
Bracket:
-
stainless Steel,stainless steel 1.5mm, 0/20/27/38/45degree
-
heat preservation:
-
72 hours
-
Pressure:
-
8 Bar/ 116Psi
-
Certificate:
-
CE,ISO 9001,ISO14001,ISO45001,CCC,Solar Keymark
-
Heat Source:
-
Solar Heat Energy
-
Use:
-
Outdoor, Hotel, Bath, House, Kitchen, Shower, Bathroom
Quickly Specification
|
Quickly guide of Complete Automatically Heat Pipe Vacuum Tube High Pressure Solar Hot Water Heater System
|
|
|
|
|
||||
|
Capacity
|
10 Liter to 300 Liter
|
|
Solar collector
|
58x1800mm heat pipe vacuum tube
|
||||
|
Inner tank material
|
Food grade stainless steel SUS304-2B
|
|
Outer tank material
|
Stainless steel/galvanized steel
|
||||
|
Work pressure
|
0.8Mpa/8bar/116psi
|
|
Heat Preservation
|
72 hours
|
||||
|
Application
|
Outdoor/Hotel/Commercial/Household/Garage/Bathroom/Shower
|
|
|
|
||||
|
Warranty
|
3 years
|
|
|
|
||||
Vacuum Tube Solar Water Heater Work Principle:
