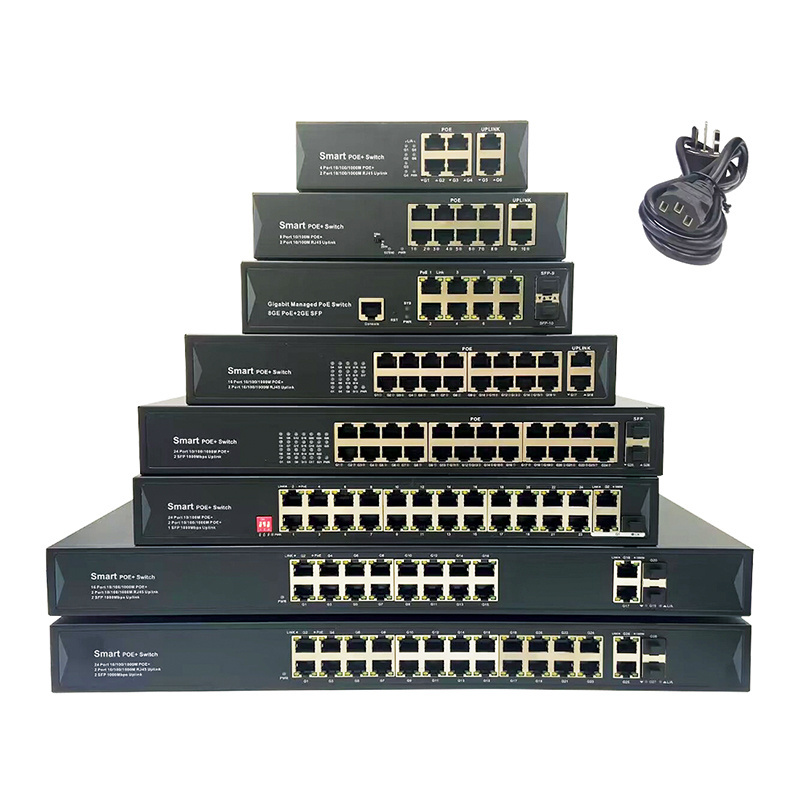

JHA-10/100/1000Mbps network gigabit enterprise switches poe switch network 4/8/16/24 port Core switch

JHA-10/100/1000Mbps network gigabit enterprise switches poe switch network 4/8/16/24 port Core switch

FOB Reference Price: Get Latest Price

≥2 Pieces

US $9.99

≥100 Pieces

US $8.88

≥300 Pieces

US $7.77

≥5000 Pieces

US $6.66

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: JHA

Place of Origin:: Guangdong, China

Feature:: Smart Web management

Forwarding mode:: Store and forward (full line speed)

Backplane bandwidth:: 12Gbps (No blocking)

Packet forwarding rate:: 8.93Mpps

MAC address:: Support 4K

Cache:: 32K

Supporting power supply:: DC10-58V/AC 100-240V 50-60HZ

Overall power consumption:: Full load maximum 5W

Quick Details

Transmission Rate:: 10/100/1000Mbps

Communication Mode:: Full-Duplex & Half-Duplex

Switch Capacity:: 128G

Brand Name:: JHA

Place of Origin:: Guangdong, China

Feature:: Smart Web management

Forwarding mode:: Store and forward (full line speed)

Backplane bandwidth:: 12Gbps (No blocking)

Packet forwarding rate:: 8.93Mpps

MAC address:: Support 4K

Cache:: 32K

Supporting power supply:: DC10-58V/AC 100-240V 50-60HZ

Overall power consumption:: Full load maximum 5W

Detail Images

JHA-P10204CBMHGW

Dimension (L*W*H) : 140*115*40mm

System Exchange Bandwidth: 1.6Gbps

Net /Gross Weight : <0.6kg / <1kg

Switching Capacity: 1.6Gbps (Non-blocking)

Fixed Port : 4*10/100Base-TX PoE ports (Data/Power)
2*10/100Base-TX uplink RJ45 ports (Data)

PoE Port: prot 1-4

JHA-P42008BMHGW

Dimension: 195*130*40mm ( L*W*H )

Switching Capacity : 20Gbps (Non-blocking)

Weight: ＜0.9kg / ＜1.2kg

Fixed Port: 8*10/100/1000Base-T PoE ports (Data /Power)

2*1000Base-X uplink SFP ports (Data)

Power Supply : External power adapter, AC100~240V 50-60Hz2.3A

JHA-P30208CBMHGW

Dimension: 195*130*40mm

Net /Gross Weight: <0.8kg / <1.2kg

Switching Capacity: 11.8Gbps (Non-blocking)

Fixed Port: 8*10/100Base-TX PoE ports (Data/Power)
2*10/100/1000Base-T uplink RJ45 ports (Data)

ForwardingRate@64byte : 4.17Mpps

Total PWR / Input Voltage：

120W/ (AC100-240V)

JHA-P42208BMHX

Dimension: 202*140*45mm

Backplane Bandwidth: 24Gbps (Non-blocking)

Weight: <1.03kg / <1.5kg

Fixed Port: 8*10/100/1000Base-T PoE ports (Data/Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) 2*1000Base-X uplink SFP ports (Data)

Total PWR / Input Voltage:

120W/ (AC100-240V)

JHA-P402016BMHGW

Dimension (L*W*H): 270*181*44.5mm

Net /Gross Weight: <1.25kg / <1.6kg

Switching Capacity: 36Gbps (Non-blocking)

Fixed Port: 16*10/100/1000Base-T PoE ports (Data/Power)

2*10/100/1000Base-T uplink RJ45 ports (Data)

Power Supply: Built-in power supply, AC100~240V 50-60Hz 5.0A

Product Paramenters

Switching Performance	Transmission Mode: Store and ForwardSystem Exchange Bandwidth: 14Gbps MAC Table Size: 8K Delay Time: < 10μs VLAN support and quantity:Support 4096 VLAN IDs Packet forwarding rate 7.46Mpps
LED Indicator	Power indicator: PWR (green);Optical port: FX (green); Network port indicator: yellow(100 or POE) Green (Link)
Operating Environment	Operating Temperature: -40-85°CStorage Temperature: -40-85°C Ambient Relative Humidity: 5%-95% (non-condensing)
