Quick Details
-
Passenger capacity:
-
2
-
Max. loading weight:
-
2000kgs
-
Overall dimensions (mm):
-
4810X1500X2150
-
Min. ground clearance (mm):
-
150
-
Front wheel tread (mm):
-
1280
-
Rear wheel tread (mm):
-
1220
Quick Details
-
Brand Name:
-
EAGLE
-
Place of Origin:
-
Jiangsu, China
-
Model:
-
EG6042H
-
Passenger capacity:
-
2
-
Max. loading weight:
-
2000kgs
-
Overall dimensions (mm):
-
4810X1500X2150
-
Min. ground clearance (mm):
-
150
-
Front wheel tread (mm):
-
1280
-
Rear wheel tread (mm):
-
1220
Product Description
| Model | EG6042H | |

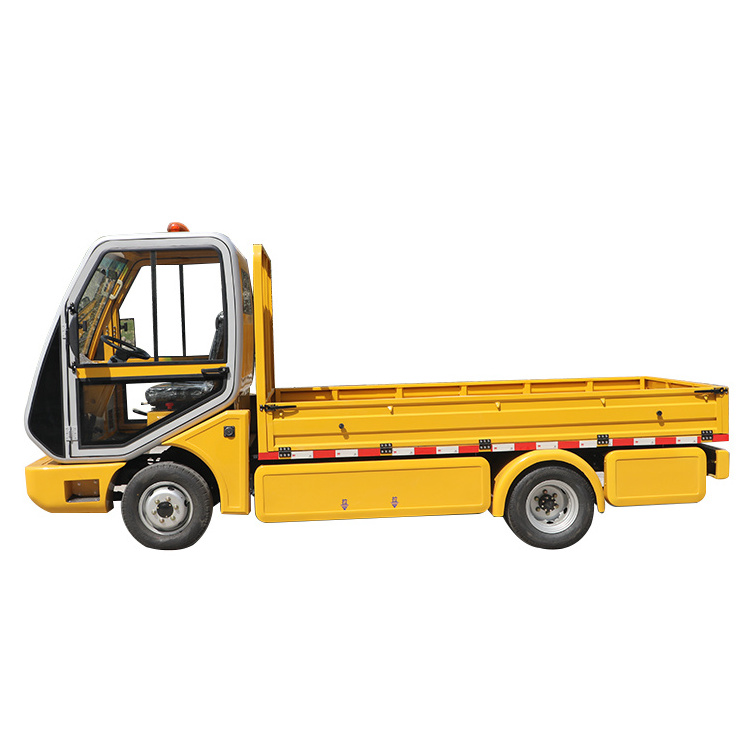

| Description | 2.0T electric truck | 2.0T electric truck |
| System | 72V/6.3KW Series | 72V/7.5KW AC system |
| Key Components | ||
| Battery | 12xT105(185Ah@5hr rate) | 12xT105(185Ah@5hr rate) |
| Motor | 6.3KW Chinese motor | 7.5KW Chinese motor |
| Controller | Curtis 1209(400A@2minutes) | Zapi AC2(400A@2minutes) |
| Performance | ||
| Passenger capacity | 2 | 2 |
| Range (loaded) based on flat road at a speed of 20km/h (km) * | >42 | >42 |
| Max. speed(km/h) | 50 | 50 |
| Minimum turning radius (m) | 6 | 6 |
| Max. climbing ability (loaded) | 20% | 20% |
| Max. movement after brake at speed of 20km/h | ≤NA | ≤NA |
| Max. loading weight | 2000kgs | 2000kgs |
| Net weight | 1730kgs | 1675kgs |
| Dimensions | ||
| Overall dimensions (mm) | 4810X1500X2150 | |
| Rear cargo bed dimension(mm) | 3200X1500X320 | |
| Min. ground clearance (mm) | 150 | |
| Wheelbase (mm) | 2600 | |
| Front wheel tread (mm) | 1280 | |
| Rear wheel tread (mm) | 1220 | |
