Quick Details
-
Dimension(L*W*H):
-
500 * 600 * 1000mm
-
Weight:
-
110kg
-
Features:
-
Hot melt cold paint dual-use
-
Speed:
-
3600r / min
-
Working width:
-
220mm
-
Drive:
-
can walk by itself
-
name:
-
Hot melt cold paint dual purpose type old line cleaning machine
-
Clearing speeday:
-
500-700m2 / d
-
Number of knife barrel shafts:
-
4 axes
-
Size:
-
500 * 600 * 1000mm
-
Grinding depth:
-
0-4mm
-
place:
-
shandong china
-
.Net weight:
-
110kg
-
Certification:
-
ISO CE
Quick Details
-
Power:
-
2.2KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JS
-
Dimension(L*W*H):
-
500 * 600 * 1000mm
-
Weight:
-
110kg
-
Features:
-
Hot melt cold paint dual-use
-
Speed:
-
3600r / min
-
Working width:
-
220mm
-
Drive:
-
can walk by itself
-
name:
-
Hot melt cold paint dual purpose type old line cleaning machine
-
Clearing speeday:
-
500-700m2 / d
-
Number of knife barrel shafts:
-
4 axes
-
Size:
-
500 * 600 * 1000mm
-
Grinding depth:
-
0-4mm
-
place:
-
shandong china
-
.Net weight:
-
110kg
-
Certification:
-
ISO CE
Hot melt cold paint dual purpose old line removal machine parking lot damaged mark removal tool ground cleaning machinery
Brief introduction of hot melt cold paint dual-purpose type old line cleaning machine:
The product's design concept and manufacturing process are first-class, and its principle is flat centripetal tapping and polishing. The cutter head moves on the cutter shaft, and the centripetal force is generated by high-speed rotation. The cutter head beats the surface of the marked line to achieve the purpose of removal. Its outstanding advantages are: the cutter head does not make hard contact with the surface to be processed, and the damage to the treated surface is very small. It is mainly used for the removal of old lines of hot-melt cold paint marking lines. It has the characteristics of high efficiency, low damage, and easy maintenance.
Brief introduction of hot melt old line removal machine:

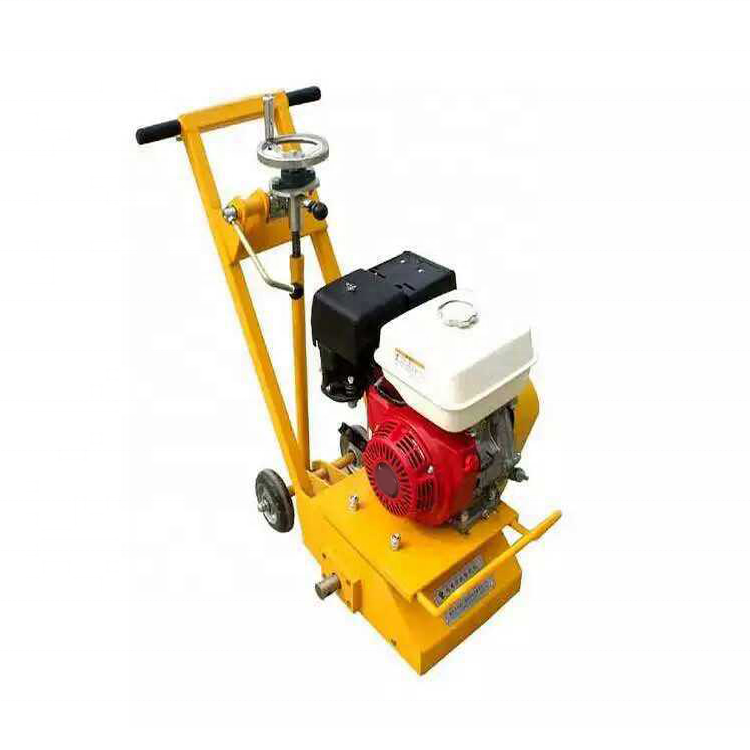

Hot melt old wire removal machine is a special equipment used to remove old hot melt marking lines such as damage, cracks, discoloration and so on. The engine is used to drive the grinding head to rotate at high speed. The grinding head is brought into contact with the raised part of the road surface under the action of rotating centrifugal force to remove the old line. The machine uses imported original gasoline engine and ultra-durable hard alloy grinding head to ensure the quality of the equipment. It can be adjusted according to the conditions of road surface and marking, and has the characteristics of good polishing performance, fast speed, simple operation and maintenance.
type | Hot melt cold paint dual-purpose type old line cleaning machine |
Power |
9.0HP (HONDA) Honda gasoline engine |
Speed |
3600r / min |
Drive |
can walk by itself |
Working width |
220mm |
Grinding depth |
0-4mm |
Clearing speed |
500-700m2 / day |
Number of knife barrel shafts |
4 axes |
Tool life |
80hour, 2000-3000m2 |
Size |
500 * 600 * 1000mm |
Net weight |
110kg |
type |
Brief introduction of hot melt old line removal machine |
Engine |
10.5-12.5HP imported original four-stroke air-cooled gasoline engine (British American) |
Operation mode |
the throttle control switch is set on the handlebar, the head of the grinding head is set on the frame, and the grinding force regulator |
Adjustment range of grinding force stepless adjustment |
strong, medium and weak |
Rubber wheels |
cast iron wheels, special wear-resistant rubber, double wheels and single vertical shaft reinforced wheels |
Net weight |
162kg |
Grinding head life |
20,000-30, 000m |
