Quick Details
-
Material:
-
Wooden Box
-
Weight:
-
3kg
-
Size:
-
Customized
-
Power:
-
Customized
-
Productivity:
-
Customized
-
Weight (KG):
-
3 kg
-
Product name:
-
Membrane Elements With Membrane Housing
-
Application:
-
Filtration Separation
Quick Details
-
Marketing Type:
-
New Product 2022
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BONA
-
Material:
-
Wooden Box
-
Weight:
-
3kg
-
Size:
-
Customized
-
Power:
-
Customized
-
Productivity:
-
Customized
-
Weight (KG):
-
3 kg
-
Product name:
-
Membrane Elements With Membrane Housing
-
Application:
-
Filtration Separation

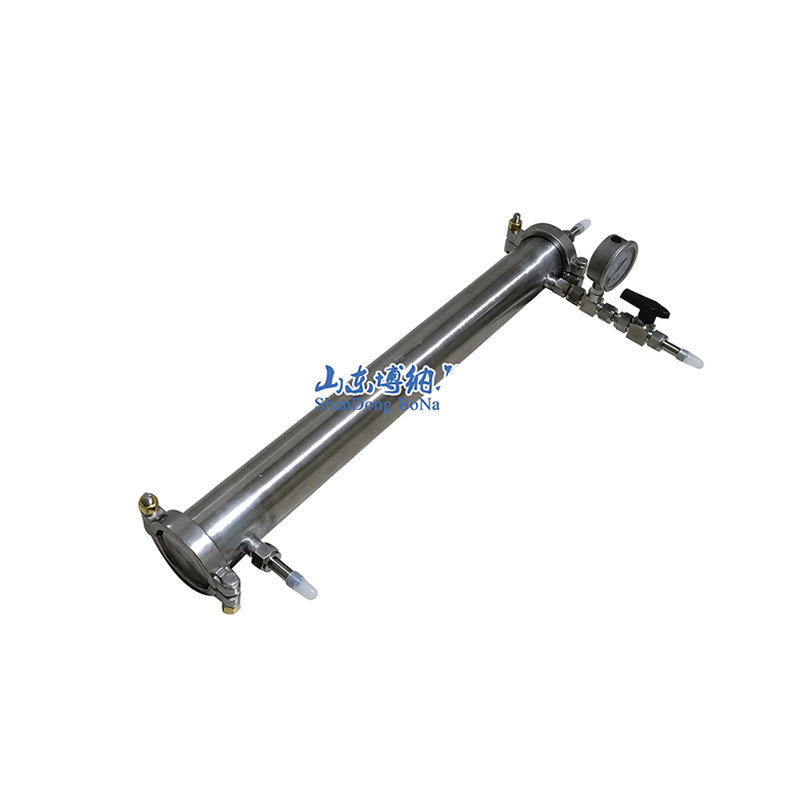

Small Lab use ceramic Ultrafiltration Membrane Module housing Cartridge kits for Cross Flow Filtration
Ceramic M embrane H ousing
Ceramic membrane module is a housing filled with ceramic membrane elements. It can combined with different OD or area of ceramic membrane elements together into one module according to different demands. The design of outline and sealing type of Ceramic Membrane Module is significant, for the whole system operation.
Technical Parameter:
Type of module: 1, 3, 7, 12, 19, 37, 61, 91, 138, 241
Length of membrane : 250-1200mm
Outer diameter of membran e: 12/25/30/40/52/60mm
* Membrane Module:
|
No |
Item |
Data |
|
1 |
Brand |
BONA |
|
2 |
Filtration Mode |
Cross Flow Filtration |
|
3 |
Material |
SUS304 / SUS316L / Titanium / FRPP / MSRL |
|
4 |
Length |
25 0-1 2 00 mm |
|
5 |
Type of module |
1, 3, 7, 12, 19, 37, 61, 91, 138, 241 (Number of Membrane / Housing) |
|
6 |
Length of membrane |
250-1200mm |
|
7 |
Membra ne OD |
12/25/30/40/52/60mm |
As a TOP3 proffessional manufacturer and solutions provider with two membrane production factories,
one advanced R&D center, we not only can provide qualified membrane elements/modules, but also
provide customized high quality Industrial use Membrane systems for concentration, clarification,
filtratiom, separation and purification process in different Industries
Such as:
Food & Beverage
Milk and dairy products
Concentration of milk and dairy products
Separation and concentration of whey protein
Separation of milk protein
Milk cold sterilization
Wine, spirits and beverage
F iltering or clarifying beverages such as beer, wine and fruit juices .
Concentration of tea drinks
Clarification of fruit juices as apple,
grape,
citrus and orange juice
Liquor turbidity removal
Clarification of wine
T
reatment of beer
Others
Clarification of vinegar, soya sauce
Filtration of edible oil
Preparation of natural pigments
Soybean protein production
Glucose syrup clarification
Gelatin concentration
Bio-Pharma
P rotein concentration
C ell separation
Clarification of vinegar, soya sauce
C
larification of antibiotic fermentation medium
P urification of Organic acid fermented liquid
P rocessing of biomass fermentation broth
Bio pesticide zymotic fluid processing
The processing of amino acid fermented liquid
L iquid clarification
Pyrogen Removal
Biological Medicine
Antibiotics Purification
Vitamin Purification
Amino Acid Purification
Organic Acid Purification
Pyrogen Removal Technology
Antibiotics
Enzyme concentration
C oncentration of active principle
Chinese herbal medicine clarification
Y easts
Plant Extraction
Phyto-extraction
Environment
cut oil recovery
cutting fluid filtration
Waste water treatment
laundry waste water
Landfill leachate
membrane bioreactor
paper production waste water
textile waste water
other waste water
Related Products:
*Lab experimental machine:
*Pilot machine:
* Ceramic Membrane Elements
Ceramic Membrane Basic technical data :
|
Support Material |
α-Al2O3 |
|
Membrane Material |
Al2O3,ZrO2,TiO2 |
|
Pore Diameter |
50nm,100nm,200nm,400nm,600nm,800nm, 1um,1.2um,1.5um,2um |
|
30nm,2 0nm,12 nm,1 0nm,5 nm,3nm |
|
| Membrane Length |
250-1200mm(Special length upon customer's request) |
|
PH Stability |
0-1 4 |
|
Applicable temperature |
-10~150℃ |
