Quick Details
-
Width of bed (mm):
-
450 mm
-
Spindle Motor Power(kW):
-
11
-
Max. Turned Length (mm):
-
1000
-
Travel (X Axis)(mm):
-
660 mm
-
Travel (Z Axis)(mm):
-
1000 mm
-
Positioning Accuracy (mm):
-
0.025 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
3400x18200x1780mm
-
Brand Name:
-
SHUOMAI
-
Model Number:
-
CK6166
-
Voltage:
-
380V
-
Weight (KG):
-
3600
-
CNC or Not:
-
CNC
-
Machine Type:
-

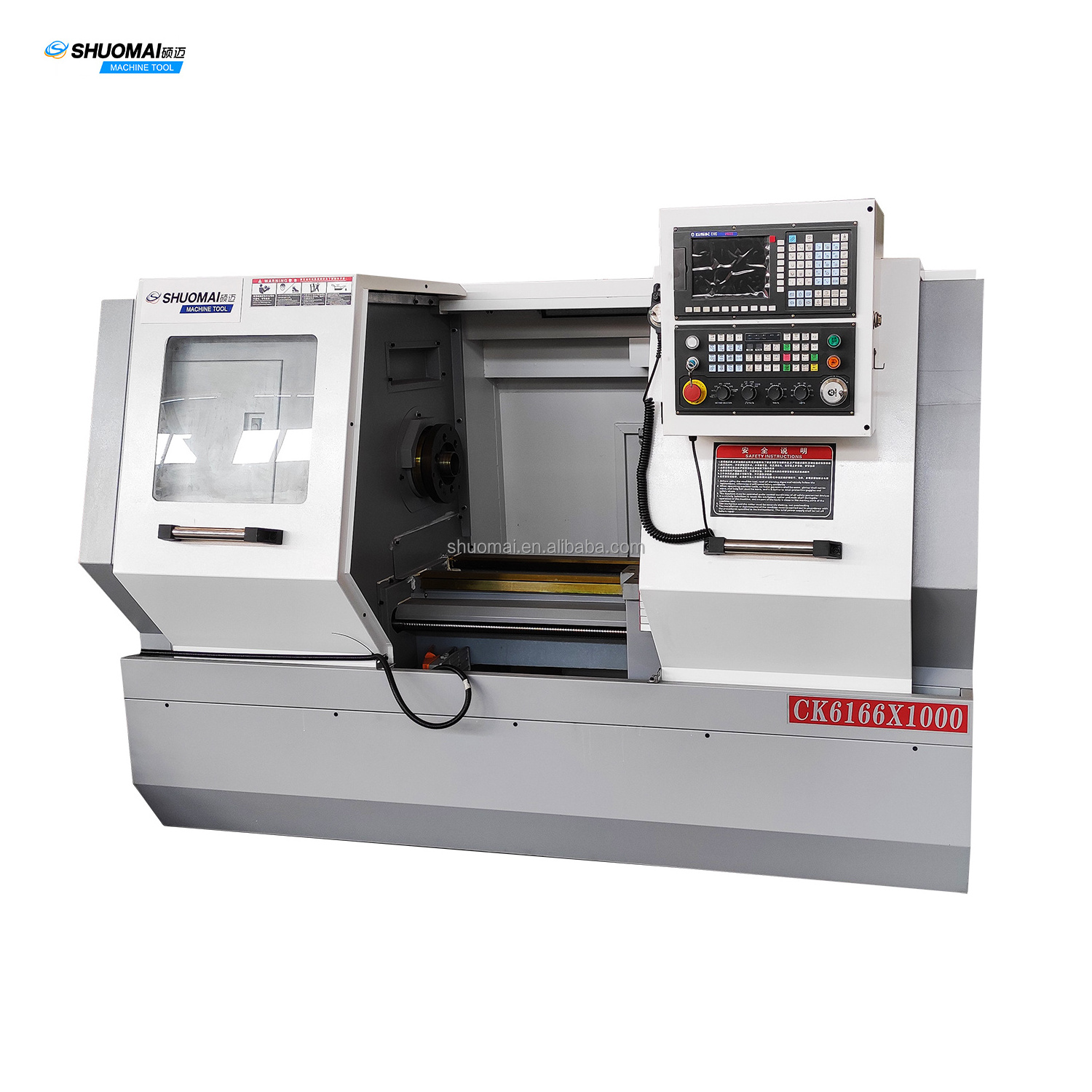

CNC lathe machine CK6166
-
Control system:
-
GSK KND SIEMENS FANUC
-
Max. Swing Diameter:
-
660mm
-
Main motor:
-
11kw
-
Tailstock sleeve taper:
-
MT6
-
Spindle bore:
-
82/105/130mm
-
Color:
-
Customized Color Acceptable
-
OEM:
-
Customized Acceptable
-
MOQ:
-
1 set
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
1000 mm
-
Max. Spindle Speed (r.p.m):
-
835 r.p.m
-
Width of bed (mm):
-
450 mm
-
Spindle Motor Power(kW):
-
11
-
Max. Turned Length (mm):
-
1000
-
Travel (X Axis)(mm):
-
660 mm
-
Travel (Z Axis)(mm):
-
1000 mm
-
Positioning Accuracy (mm):
-
0.025 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
3400x18200x1780mm
-
Brand Name:
-
SHUOMAI
-
Model Number:
-
CK6166
-
Voltage:
-
380V
-
Weight (KG):
-
3600
-
CNC or Not:
-
CNC
-
Machine Type:
-
CNC lathe machine CK6166
-
Control system:
-
GSK KND SIEMENS FANUC
-
Max. Swing Diameter:
-
660mm
-
Main motor:
-
11kw
-
Tailstock sleeve taper:
-
MT6
-
Spindle bore:
-
82/105/130mm
-
Color:
-
Customized Color Acceptable
-
OEM:
-
Customized Acceptable
-
MOQ:
-
1 set
|
Specification |
CK6166 CNC LATHE |
|
CNC controller |
GSK, KND, Siemens, Fanuc ... |
|
Max. swing over bed |
660 mm |
|
Max. Swing over cross slide |
φ35 0 mm |
|
Max. Processing length |
1000/1500/2000/3000/4000 mm |
|
Spindle bore |
Φ82/ 105/130/140mm |
|
Spindle speed |
30-84/53-150/125-350/300-835 rpm |
|
Chuck diameter |
315/400/500mm |
|
Spindle motor |
11 kw |
|
X/Z axis positioning accuracy |
± 0.025/0.03 mm |
|
X/Z axis repeat positioning accuracy |
± 0.01/0.015 mm |
|
Workpiece processing accuracy |
IT6-IT7 |
|
X.Z axis fast moving speed |
4000/6000 mm/min |
|
Tailstock sleeve diameter |
100 mm |
|
Tailstock sleeve inner taper |
MT6# |
|
Tools post type |
4/6/8/10/12 tools |
|
Cutting tool size |
32x32 mm |
|
Machine dimensions |
3400/3900/4400/5400x1820x1780 mm |
|
Net weight |
3200/3600/4000/4500 kg |
