Quick Details
-
Positioning Accuracy (mm):
-
0.1 mm
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
900 mm
-
Repeatability (X/Y/Z) (mm):
-
0.1 mm
-
Spindle Motor Power(kW):
-
2.2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ARTECHCNC
-
Voltage:
-
220V,50HZ
-
Dimension(L*W*H):
-
600x900x200mm
-
Weight (KG):
-
700
-
Warranty of core components:
-
1 year
-
Product name:
-
6090 mini cnc router machine
-
Working area:
-
600x900x200mm
-
Z axis height:
-
200mm
-
Z axis tramsmission:
-
Ball Screw
-
X.Y. axis transmission:
-
Hiwin Linear guide rail, gear-wheel drive
-
Motor:
-
stepper
-
Control system:
-
Mach3
-
Inverter:
-
Fuling Inverter
-
Software:
-
Artcam type3
-
Command:
-
G code, uoo, mmg, plt
Quick Details
-
Working Table Size(mm):
-
600x900
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.1 mm
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
900 mm
-
Repeatability (X/Y/Z) (mm):
-
0.1 mm
-
Spindle Motor Power(kW):
-
2.2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ARTECHCNC
-
Voltage:
-
220V,50HZ
-
Dimension(L*W*H):
-
600x900x200mm
-
Weight (KG):
-
700
-
Warranty of core components:
-
1 year
-
Product name:
-
6090 mini cnc router machine
-
Working area:
-
600x900x200mm
-
Z axis height:
-
200mm
-
Z axis tramsmission:
-
Ball Screw
-
X.Y. axis transmission:
-
Hiwin Linear guide rail, gear-wheel drive
-
Motor:
-
stepper
-
Control system:
-
Mach3
-
Inverter:
-
Fuling Inverter
-
Software:
-
Artcam type3
-
Command:
-
G code, uoo, mmg, plt

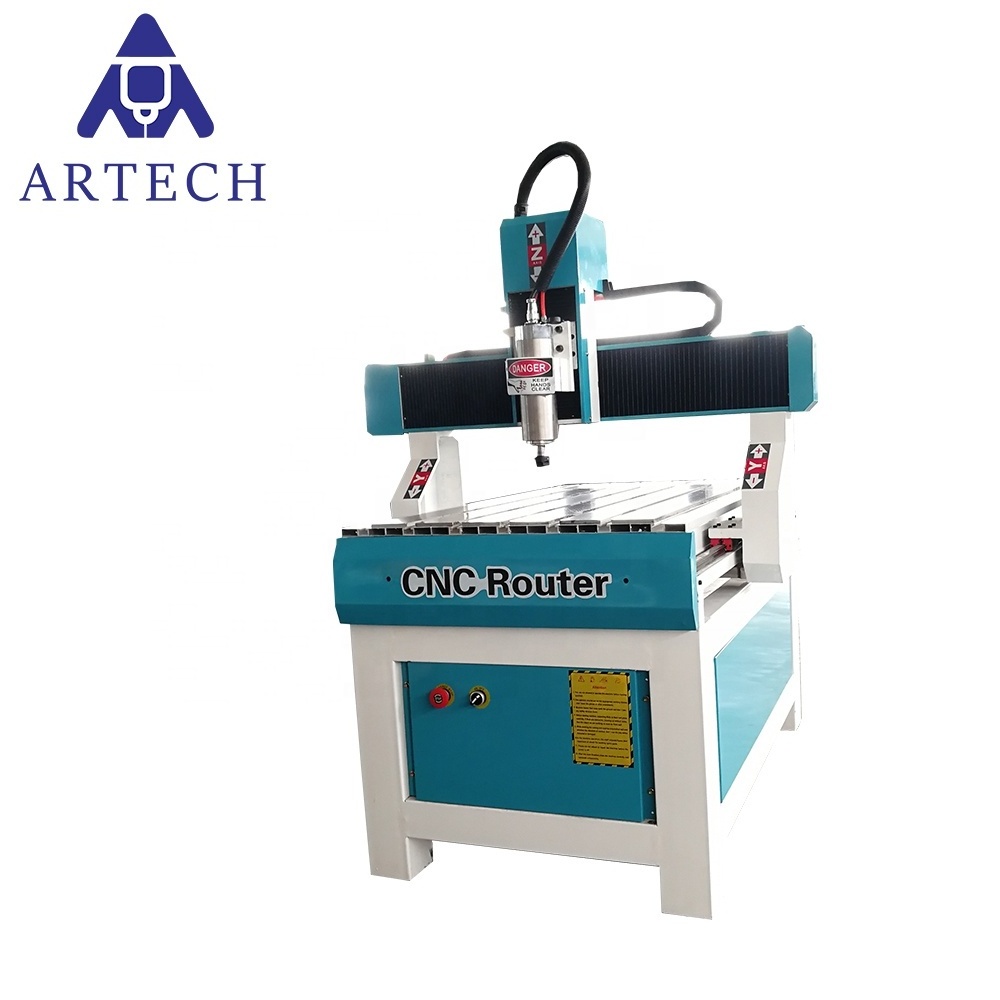

Hot sale mini cnc router 6090 / DIY small hobby cnc milling machine / router cnc for wood acrylic stone metal
Feature of 6090 cnc router:
1. Whole machine is iron.
2.Adopt Taiwan HIWIN high precision linear orbit. X Y Z axis adopts Germany and Taiwan ball screw,with high precision and long life time.
3.DSP control system with USB port,just need handle to operate the machine,easy and convenient.
4.Water cooling spindle prolong machine life and help to maintain high cut quality down for clean cuts.
5.4 T.slotted clamps fit on the table to hold the material down for clean cuts.
Get more other cnc machine information
Technical parameter of 6090 cnc router:
|
Parameters |
Standard Specifications |
|
X Y Z axis working area |
600x900x200mm |
|
Spindle |
2.2kw water cooling spindle |
|
X Y Z traveling positioning accuracy |
+-0.01/2000mm |
|
Table |
T.slot table or vacuum table |
|
Vacuum pump |
air cooling 5.5kw pump |
|
X Y Z rail and transmission |
Taiwan TBI ball screw and gear rack |
|
Max.rapid travel rate |
50000mm/min |
|
Max.working speed |
30000mm/min |
|
Spindle speed |
24000RPM |
|
Driver motors |
Servo motor and driver |
|
Working voltage |
220V/380V/50HZ |
|
Command language |
G code |
|
Control system |
DSP or Syntec /NC studio//Mach3 |
|
Software compatibility |
Option:Artcam,Ucancam,Type3 |
|
Running environment |
Temperature:0~45℃ Relative humidity:30%~75% |
|
Oil system |
handle |
|
Frame structure |
Welding structure |
get more other cnc machine information
Application of 6090 cnc router:
1. Woodworking industry:wood crafts,picture frames cutting,handicraft carving wave plates,wooden door production and processing.
2. Advertising industry:advertising materials such as PVC,acrylic,double color plate.
3. Stone working industry:such as natural marble,granite,artificial stone,tombstones,milepost,ceramic tile,glass and other materials.
4. Metal industry:carving aluminum,copper,stainless steel and so on.
Production Process:
Package and Delivery of 6090 cnc router:
Package Detail: 1.Outside package:Standard plywood package.
2.Inner package:Stretchy film and plastic film for humidity.
And we can package according to your requests.
Delivery Detail: For atandard machines,it will be 7-15 working days after payment;For non-standard machines and customized machines according to clients' specific requirements,it will be 15 to 30 working days after payment.
After Sale Service of 6090 cnc router:
1. Engineers availbal to service machinery overseas.
2. 1 year guarantee for whole machine.
3. Technical support by phone,e-mail,whatsapp and skype.If you have any problems,we will within 12 hours to solve it.
4. You will be get free training advice towards our machine in our factory.
5. If you need any component of the machine,we will provide the best price for you.
6. Friendly English version manual and operation video CD disk.
