Quick Details
-
Brand Name:
-
XYT
-
Fiber Type:
-
SMF-28e
-
Fiber length:
-
1m or customized
-
Wavelength:
-
1310/1550nm
-
Connector:
-
SC LC FC ST
-
Material:
-
Steel tube
-
Warranty:
-
3 Years
-
Key words:
-
optical circulator
-
Port:
-
1*2 Port
-
Keywords:
-
Communication Equipment 3 ports optical circulator
Quick Details
-
Type:
-
Fiber Identifier
-
Model Number:
-
XYT-OCIR-3
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XYT
-
Fiber Type:
-
SMF-28e
-
Fiber length:
-
1m or customized
-
Wavelength:
-
1310/1550nm
-
Connector:
-
SC LC FC ST
-
Material:
-
Steel tube
-
Warranty:
-
3 Years
-
Key words:
-
optical circulator
-
Port:
-
1*2 Port
-
Keywords:
-
Communication Equipment 3 ports optical circulator

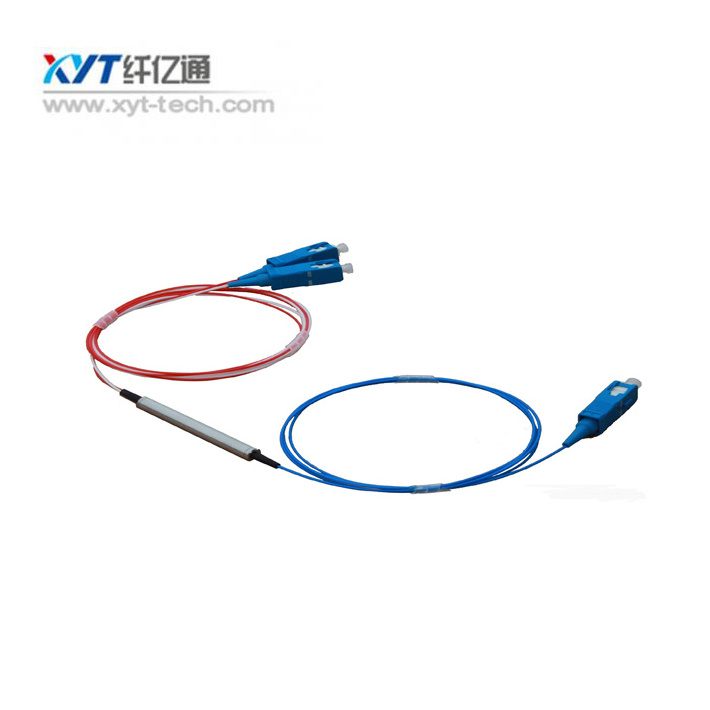

EDFA Used 1310nm or 1550nm C Band Fiber Optic Circulator 0.9mm with FC/APC
Description
1. The 3 port optical circulator is a compact high performance lightwave component that transmits the incoming signal from port 1 to port 2, while transmitting another incoming signal from port 2 to port 3. The component provides high isolation, low insertion loss, high extinction ratio, and excellent environment stability.
2. It is a special kind of fiber optic components, with single fiber bidirectional transmission function. This function is often combined with optical fiber grating and other reflection components used in DWDM system. Dual`way communication system, the dispersion compensation, EDFA application and OTDR measurement.
Features
1. Low insertion loss
2. Wide band high isolation
3. Low PDL
4. Compact in-line package
5. High stability and reliability
6. Epoxy free optical path
Applications
1. CATV system
2. Telecommunication network system
3. Metro/Access networks
4. Optical amplifier
5. Wavelength add / drop
6. Dispersion compensation
7. Bi-Direction communication
Specification
|
Parameter |
P Grade |
A Grade |
||
|
Configuration |
Port 1 to Port2 to Port 3 |
|||
|
Operation Wavelength (nm) |
1470 to 1610 |
|||
|
Insertion Loss (dB) |
Typical |
1.0 |
1.1 |
|
|
Maximum |
1.2 |
1.3 |
||
|
Channel Peak Isolation (dB) |
>50@1550nm |
|||
|
Channel Isolation (dB) |
>40(1520nm~1580nm);>32(1470nm~1610nm) |
|||
|
Channel Cross Talk (dB) |
>50 |
|||
|
Polarization Dependent Loss (dB) |
<0.20 |
|||
|
Polarization Mode Dispersion (ps) |
<0.1 |
|||
|
Return Loss (dB) |
>50 |
|||
|
Power Handling (mW) |
300 |
|||
|
Operating Temperature (°C) |
0 ~ +70 |
|||
|
Storage Temperature (°C) |
-40 ~ +85 |
|||
|
Dimensions (mm) |
Ø5.5 x L50 |
|||
Above specification are for device without connector.
|
Ordering Information |
||||||
|
3ports Optical Circulator |
Port |
Wavlength |
Grade |
Fiber Type |
Fiber Length |
In/Out Connector |
|
3=3 Port |
CL=C+L Band 1525~1610nm |
P=P Grade A=A Grade
|
1=Bare fiber 2=900um loose tube |
1=1m 2=2m |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC S=Specify |
|
More Question :
1. Can I have a sample order?What is your MOQ?
Yes, we welcome sample order to test and check quality. We do not have MOQ,1 sample is available.
2. What is the lead time?
For usual products,We keep stock,could ship
about
3 days after
received payment
.For big quantity and special products,Please check lead time with our sales representative.
3. How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
4
. What is your payment terms?
Usually,we need prepayment by T/T,West Union or
Paypal
.
Could also support L/C, Credit terms .
5
. What is your warranty time
We promise 3 years warranty for all products shipped from us.
6
. Could I return the products if there is a quality problem?
Yes,if there is a quality problem happen,we could accept free exchange
.
7 . Could i use our own logo and label?
Yes,we could provide a OEM service and make the products with your own label.
