The products are mainly used in public facilities, industry, transportation and power distribution solutions, and also cover many
demanding applications, such as data centers, oil and gas, mining, ships, and the miniaturization of its 550 mm cabinet width
double-layer structure design Switch cabinets are more suitable for space-constrained projects such as commercial real estate,
data centers, and on-site renovations.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China, China
-
Brand Name:
-
HAYA
-
Model Number:
-
KYN28-12, KYN28-12
-
Material:
-
Sheet Metal Metal components
-
Type:
-
Air insulated
-
Busbar Current:
-
Busbar Current
-
Breaking capacity:
-
25-50kA
-
Installation:
-
Indoor
-
Protection Level:
-
IP4X
-
Frequency:
-
50/60Hz
-
Keyword:
-
Withdrawable Switchgear
-
Color:
-
7035
Quick Details
-
Voltage:
-
10000, 12000, 17500, 24000
-
Current:
-
630, 1250, 1600, 2500, 3145
-
Size:
-
1400, 2500, 2800
-
Place of Origin:
-
Zhejiang, China, China
-
Brand Name:
-
HAYA
-
Model Number:
-
KYN28-12, KYN28-12
-
Material:
-
Sheet Metal Metal components
-
Type:
-
Air insulated
-
Busbar Current:
-
Busbar Current
-
Breaking capacity:
-
25-50kA
-
Installation:
-
Indoor
-
Protection Level:
-
IP4X
-
Frequency:
-
50/60Hz
-
Keyword:
-
Withdrawable Switchgear
-
Color:
-
7035
■ Applicable standards:
IEC60298: AC metal-enclosed switchgear and control equipment with rated voltages from 1kV to 52kV. IEC60694: High-voltage
switchgear standard common clauses. GB3906: 3-35kV AC metal-enclosed switchgear. GB / T11022: General technical requirements for
high voltage switchgear. GB1984: AC high voltage circuit breaker.
switchgear standard common clauses. GB3906: 3-35kV AC metal-enclosed switchgear. GB / T11022: General technical requirements for
high voltage switchgear. GB1984: AC high voltage circuit breaker.
1. Wide range of applications
2. Easy maintenance
The switchgear is operated and maintained from the front, with a large window area and high definition. You can clearly see the
position indication of the circuit breaker, the opening and closing status indication and the energy storage status indication of
the spring operating mechanism, and the operation, maintenance and maintenance are safe and convenient.
position indication of the circuit breaker, the opening and closing status indication and the energy storage status indication of
the spring operating mechanism, and the operation, maintenance and maintenance are safe and convenient.
3. Personnel safety protection
When an internal fault occurs, the pressure rises, and the pressure relief channel immediately opens to release the pressure. The
sealed structure provides reliable protection for the operating personnel, ensuring that the accident cannot spread and personnel
will not be injured.
sealed structure provides reliable protection for the operating personnel, ensuring that the accident cannot spread and personnel
will not be injured.
Product features:

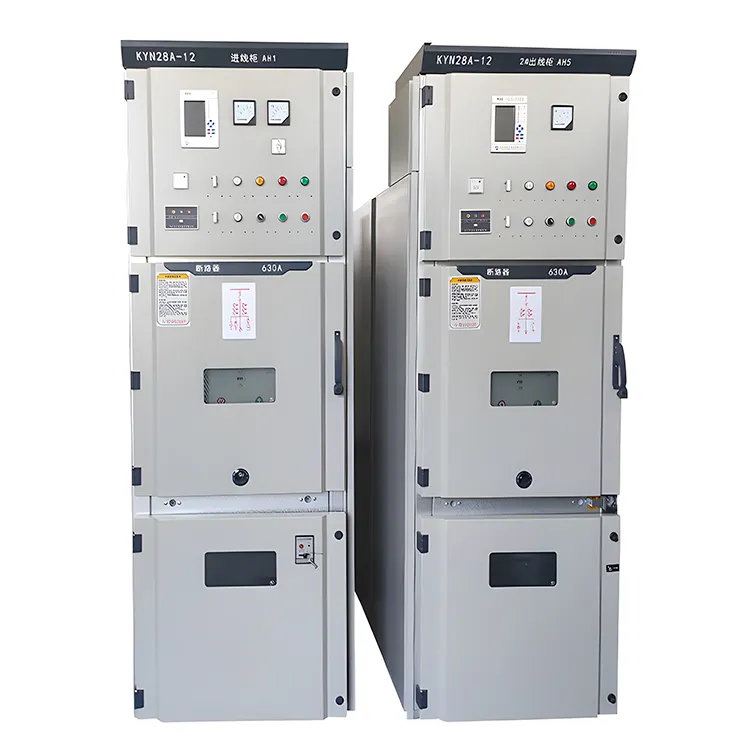

P / V-12 is a metal-armored removable switchgear developed with reference to international advanced technology. It is suitable for
single buses and its segmented system with three-phase AC, rated voltage of 3 ~ 10kV, and rated frequency of 50Hz, and as
receiving and distributing electric energy indoor complete set of distribution equipment. In addition to having the same
structure, technical parameters and manufacturing technology as similar international products, it also increases the net
clearance of air insulation according to the actual situation of domestic operation. It is currently the highest-grade armored
switchgear in China and has reached the international advanced level. The switchgear combines new vacuum arc extinguishing and
mature epoxy insulation technology, and through type test verification, it has been optimized for safety, reliability, economy and
efficiency. The products are mainly used in utility, industrial, transportation and power distribution solutions, and also cover
many high-demand application areas, such as data centers, oil and gas, mines, and ships. The width 550 mm width double-layer
structure design cabinets are more suitable for the application of space-constrained projects such as commercial real estate, data
centers, and field reconstruction.
single buses and its segmented system with three-phase AC, rated voltage of 3 ~ 10kV, and rated frequency of 50Hz, and as
receiving and distributing electric energy indoor complete set of distribution equipment. In addition to having the same
structure, technical parameters and manufacturing technology as similar international products, it also increases the net
clearance of air insulation according to the actual situation of domestic operation. It is currently the highest-grade armored
switchgear in China and has reached the international advanced level. The switchgear combines new vacuum arc extinguishing and
mature epoxy insulation technology, and through type test verification, it has been optimized for safety, reliability, economy and
efficiency. The products are mainly used in utility, industrial, transportation and power distribution solutions, and also cover
many high-demand application areas, such as data centers, oil and gas, mines, and ships. The width 550 mm width double-layer
structure design cabinets are more suitable for the application of space-constrained projects such as commercial real estate, data
centers, and field reconstruction.
■ The basic skeleton is made of imported high-quality aluminum-zinc coated steel plate and then
bolted together. It adopts special processes such as multiple bending and bossing, and is processed by a CNC flexible production
processing line. The parts have high dimensional accuracy and structural modeling beautiful, solid and reliable, and because the
aluminum-zinc steel plate does not need to be coated, it is not easy to rust. Therefore, the continuity of the skeleton is good,
which can ensure that the installed electrical components maintain their excellent electrical and mechanical properties;
bolted together. It adopts special processes such as multiple bending and bossing, and is processed by a CNC flexible production
processing line. The parts have high dimensional accuracy and structural modeling beautiful, solid and reliable, and because the
aluminum-zinc steel plate does not need to be coated, it is not easy to rust. Therefore, the continuity of the skeleton is good,
which can ensure that the installed electrical components maintain their excellent electrical and mechanical properties;
■ Circuit breakers use high-quality imported or domestic vacuum circuit breakers (or vacuum contactors). These products have
superior performance and reliable operation;
superior performance and reliable operation;
■ The circuit breaker is installed in the "center" manner, and its weight is borne by
the side wall of the switchgear, which avoids the impact of the floor on the contact plug and the interchangeability of the
handcart. In addition, the precise dimensions of the skeleton manufacture and the contact plug intact rate and handcart swap rate
reach 100%;
the side wall of the switchgear, which avoids the impact of the floor on the contact plug and the interchangeability of the
handcart. In addition, the precise dimensions of the skeleton manufacture and the contact plug intact rate and handcart swap rate
reach 100%;
■ The switchgear is operated and maintained on the front side, with a large window area and high definition. It can
clearly display the circuit breaker position indication, opening and closing status indication, and the energy storage status
indication of the spring operating mechanism. And safe, convenient operation and maintenance;
clearly display the circuit breaker position indication, opening and closing status indication, and the energy storage status
indication of the spring operating mechanism. And safe, convenient operation and maintenance;
■ High protection level. Full
consideration has been given to the safety protection requirements for operating personnel. Its enclosure protection level is
IP4X, and the door is sealed with rubber; the window is covered with special high-strength glass; the cable room, bus bar room,
and circuit breaker room have independent pressure relief channels. Once the internal failure occurs and the pressure rises, the
pressure relief channel immediately opens to release the pressure. The sealed structure provides reliable protection for the
operating personnel to ensure that the accident cannot spread. Personnel will not be harmed;
consideration has been given to the safety protection requirements for operating personnel. Its enclosure protection level is
IP4X, and the door is sealed with rubber; the window is covered with special high-strength glass; the cable room, bus bar room,
and circuit breaker room have independent pressure relief channels. Once the internal failure occurs and the pressure rises, the
pressure relief channel immediately opens to release the pressure. The sealed structure provides reliable protection for the
operating personnel to ensure that the accident cannot spread. Personnel will not be harmed;
■ The "five-proof" interlock of the
switchgear is a set of mechanical chain with advanced design and reliable performance, which can reliably prevent misoperation and
meet the requirements of Chinese national standards;
switchgear is a set of mechanical chain with advanced design and reliable performance, which can reliably prevent misoperation and
meet the requirements of Chinese national standards;
■ It considers the importance of insulation strength to operational safety.
All designs are evaluated according to the most stringent insulation requirements (higher than IEC standards and meet GB3906 and
DL404 standards), and type tests of insulation strength have been performed according to the above standards.
All designs are evaluated according to the most stringent insulation requirements (higher than IEC standards and meet GB3906 and
DL404 standards), and type tests of insulation strength have been performed according to the above standards.
|
Main parameters of switchgear (single layer)
|
|
|
|
|
||||
|
Item
|
|
Unit
|
Parameter
|
|
||||
|
Rated voltage
|
|
KV
|
3.6 7.2 12
|
|
||||
|
Rated insulation level
|
1min power frequency withstand voltage
|
KV
|
25 32 42
|
|
||||
|
|
Lightning impulse withstand voltage (full wave)
|
KV
|
40 60 75
|
|
||||
|
Rated frequency
|
|
HZ
|
50
|
|
||||
|
Rated frequency
|
|
A
|
630, 1250, 1600, 2000, 2500, 3150, 4000
|
|
||||
|
Branch bus rated current
|
|
A
|
630, 1250, 1600, 2000, 2500, 3150, 4000 *
|
|
||||
|
4s rated thermal stable current (effective value)
|
|
KV
|
25, 31.5, 40, 50
|
|
||||
|
Rated dynamic and stable current (peak)
|
|
KA
|
63, 80, 100, 125 |
|
||||
|
Protection class
|
|
|
Enclosure IP4X, circuit breaker room door open IP2X
|
|
||||
|
Main parameters of switchgear (double layer)
|
|
|
|
|
||||
|
Item
|
|
Unit
|
Parameter
|
|
||||
|
Rated voltage
|
|
KV
|
12
|
|
||||
|
Rated frequency
|
|
HZ
|
50
|
|
||||
|
Rated insulation level
|
Power frequency withstand voltage (1 minute)
|
KA
|
42
|
|
||||
|
|
Lightning impulse withstand voltage (peak)
|
KA
|
75
|
|
||||
|
Rated current of main bus
|
|
A
|
1250A / 3150
|
|
||||
|
Rated short-time withstand current
|
|
KA
|
31.5
|
|
||||
|
Rated short time tolerance time
|
|
S
|
4
|
|
||||
|
Rated peak withstand current
|
|
KA
|
80
|
|
||||
|
Protection class
|
Switchgear enclosure
|
|
IP41
|
|
||||
|
|
Between switchgear compartments
|
|
IP2X
|
|
||||
