Quick Details
-
Place of Origin:
-
Qingdao,China
-
Brand Name:
-
zhongcheng
-
Model Number:
-
Customized
-
Materail:
-
metal
-
technics:
-
Sheet metal, welding
-
certification:
-
CE&ISO9001&ISO14001
-
OEM:
-
accept
-
capacity:
-
customized
-
Color:
-
Optional
-
HEPA Filter:
-
0.3
Quick Details
-
Application:
-
Office Building, Hospital, School, Workshop
-
Design Style:
-
Modern
-
Material:
-
cooled roll steel&PP
-
Place of Origin:
-
Qingdao,China
-
Brand Name:
-
zhongcheng
-
Model Number:
-
Customized
-
Materail:
-
metal
-
technics:
-
Sheet metal, welding
-
certification:
-
CE&ISO9001&ISO14001
-
OEM:
-
accept
-
capacity:
-
customized
-
Color:
-
Optional
-
HEPA Filter:
-
0.3
Product Description
Specification
|

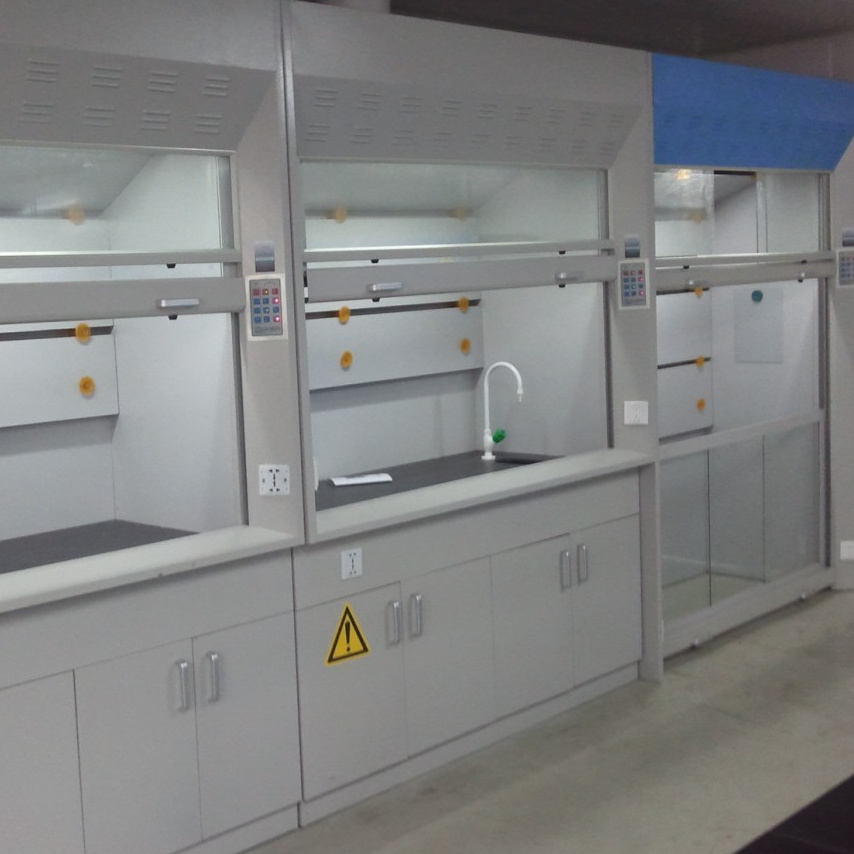

Classic fume hood
|
|
|
|
|
||||
|
External dimensions
(W*D*H) |
|
1200 x 800 x 2350mm
|
1500x800x
2500mm
|
1500x800x
2500mm
|
||||
|
Working surface height
|
|
850mm
|
850mm
|
850mm
|
||||
|
Exhaust volume
|
|
700 to 1300 m3/h
|
|
|
||||
|
Air velocity
|
|
0.3--0.6m/s
|
|
|
||||
|
noise
|
|
≤65 dB(A)
|
|
|
||||
|
belt
|
|
6mm tempered glass
|
|
|
||||
|
电源
|
|
AC 110/220 V, 50/60 Hz (optional)
|
|
|
||||
|
Material |
Main body
|
The cold-rolled steel with a thickness of 1.0mm and a thickness of 1.2mm is coated with epoxy resin powder.
|
|
|
||||
|
|
Liner
|
The compact panel with a thickness of 5mm is resistant to acid, alkali, high temperature and slip. (Ceramic/glass fiber/stainless
steel/PP/etc) |
|
|
||||
|
|
Workbench
|
Standard configuration of epoxy resin table (with water edge) (phenolic resin, ceramic, stainless steel/epoxy resin)
|
|
|
||||
|
Exhaust system
|
Catheter
|
PVC piping system according to your piping layout
|
|
|
||||
|
|
Blower
|
Centrifugal blower/custom
|
|
|
||||
|
Attachment |
|
Faucet
|
|
|
||||
|
|
|
LED light *1
|
|
|
||||
|
|
|
LCD control panel
|
|
|
||||
|
|
|
Socket
|
|
|
||||
