Quick Details
-
Size:
-
3110x1720x800mm
-
Drawbar:
-
70x50 RHS. 1200mm long with 8mm safety chain
-
Chassis:
-
50X50 RHS (Not angle)
-
Floor & Sides:
-
Checker plate (Not cheap Ribbed zinc plate)
-
Axle:
-
50x50x4mm Square tube axle
-
Spring:
-
5leafs spring (not 3leafs or 4leafs cheap and light spring)
-
Wheel:
-
165/70R13 wheel with 13inch white paint rim
-
Jockey wheel:
-
6inch top wind heavy duty jockey wheel. with E-mark and DOT
-
Surface Treatment:
-
Hot dipped galvanized
-
Lights:
-
Led Lights with 7pin plug and 7 core wiring with E-mark and DOT
-
Coupling:
-
50mm AU.EU standard coupling, 1 7/8 NZ standard coupling
Quick Details
-
Max Payload:
-
750kgs
-
Brand Name:
-
SWT
-
Place of Origin:
-
Jiangsu, China
-
Size:
-
3110x1720x800mm
-
Drawbar:
-
70x50 RHS. 1200mm long with 8mm safety chain
-
Chassis:
-
50X50 RHS (Not angle)
-
Floor & Sides:
-
Checker plate (Not cheap Ribbed zinc plate)
-
Axle:
-
50x50x4mm Square tube axle
-
Spring:
-
5leafs spring (not 3leafs or 4leafs cheap and light spring)
-
Wheel:
-
165/70R13 wheel with 13inch white paint rim
-
Jockey wheel:
-
6inch top wind heavy duty jockey wheel. with E-mark and DOT
-
Surface Treatment:
-
Hot dipped galvanized
-
Lights:
-
Led Lights with 7pin plug and 7 core wiring with E-mark and DOT
-
Coupling:
-
50mm AU.EU standard coupling, 1 7/8 NZ standard coupling
|

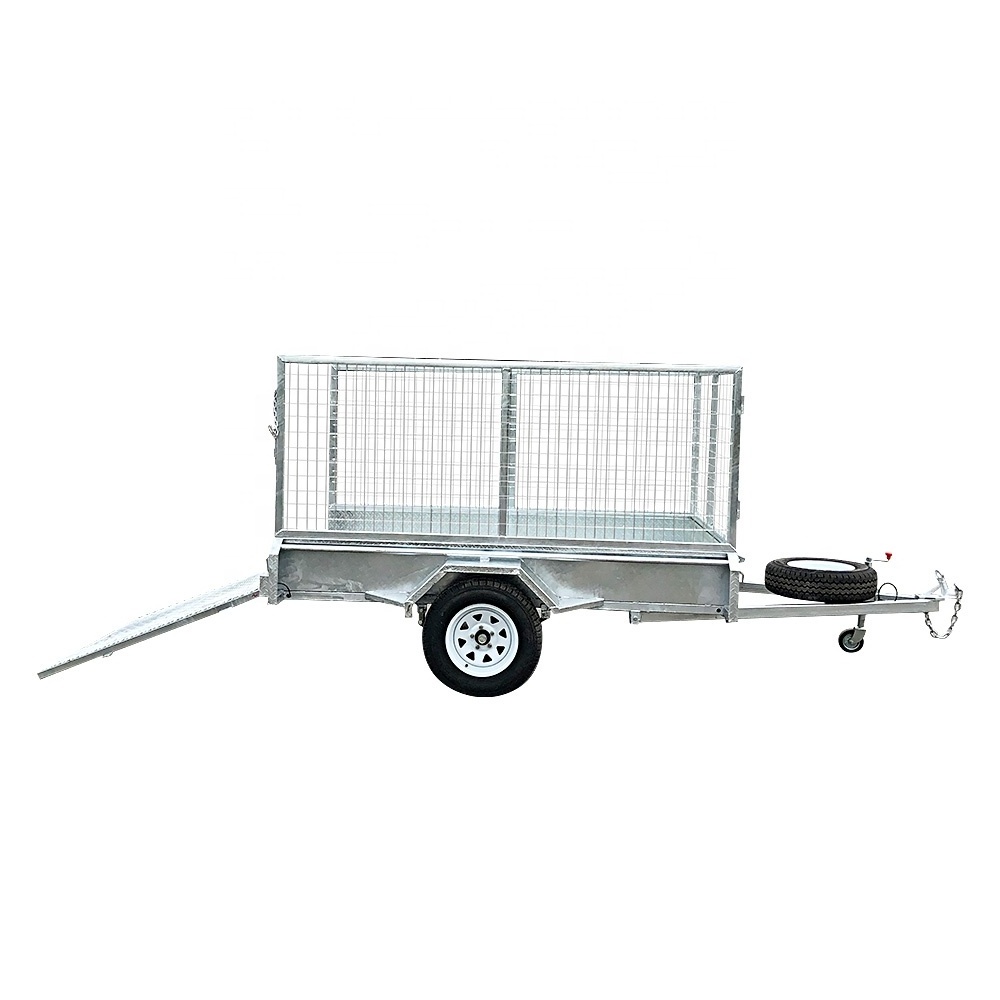

GALVANISED TIPPER BOX TRAILER HEAVY DUTY SINGLE AXLE FULLY WELDED
|
|
|
|
|
|
|
|
|||||||
|
Quality Trustworthy Hot-Dipped Galvanized Single Axle Box Trailer(SWT-BT64-L)
|
|
|
|
|
|
|
|
|||||||
|
SIZE
|
MODEL NO
|
OVERALL SIZE
|
INNER BOX SIZE
|
SPRING
|
WHEEL
|
SURFACE TREATMENT
|
GVW
|
|||||||
|
6x4Ft
|
SWT-BT64-L
|
3110x1720x800mm
|
1800x1200mm
|
5leafs
|
165/70R13
|
Hot Dipped Gal
|
750KGS
|
|||||||
|
7x4Ft
|
SWT-BT74-L
|
3410x1720x800mm
|
2100x1200mm
|
5leafs
|
165/70R13
|
Hot Dipped Gal
|
750KGS
|
|||||||
|
7x5Ft
|
SWT-BT75-L
|
3410x2025x800mm
|
2100x1525mm
|
5leafs
|
165/70R13
|
Hot Dipped Gal
|
750KGS
|
|||||||
|
8x5Ft
|
SWT-BT85-L
|
4740x2025x800mm
|
2440x1525mm
|
5leafs
|
165/70R13
|
Hot Dipped Gal
|
750KGS
|
|||||||
