- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Warehouse
-
Design Style:
-
Traditional
-
Chemical Composition:
-
Aluminum, Customized
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
yongtai
-
Product name:
-
Steel Grating
-
Weight:
-
Customized
-
Pitch of bearing bars:
-
15-30mm, 40mm, 60mm, 80mm, 90mm etc. with 30, 40mm recommended
-
Surface treatment:
-
G- hot dip galvanizing ; P-painting; U-untreated
-
Pitch of cross bars:
-
30, 38, 50, 76, 100mm etc. with 50, 100mm recommended
-
Packing:
-
standard sea-worthy packing
Quick Details
-
Warranty:
-
NONE
-
After-sale Service:
-
Online technical support, NONE
-
Project Solution Capability:
-
Others
-
Application:
-
Warehouse
-
Design Style:
-
Traditional
-
Chemical Composition:
-
Aluminum, Customized
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
yongtai
-
Product name:
-
Steel Grating
-
Weight:
-
Customized
-
Pitch of bearing bars:
-
15-30mm, 40mm, 60mm, 80mm, 90mm etc. with 30, 40mm recommended
-
Surface treatment:
-
G- hot dip galvanizing ; P-painting; U-untreated
-
Pitch of cross bars:
-
30, 38, 50, 76, 100mm etc. with 50, 100mm recommended
-
Packing:
-
standard sea-worthy packing
Product Description
Specification
Any size and specifications
can all be customized,
please
contact us,
our
24-hour online
service.
|

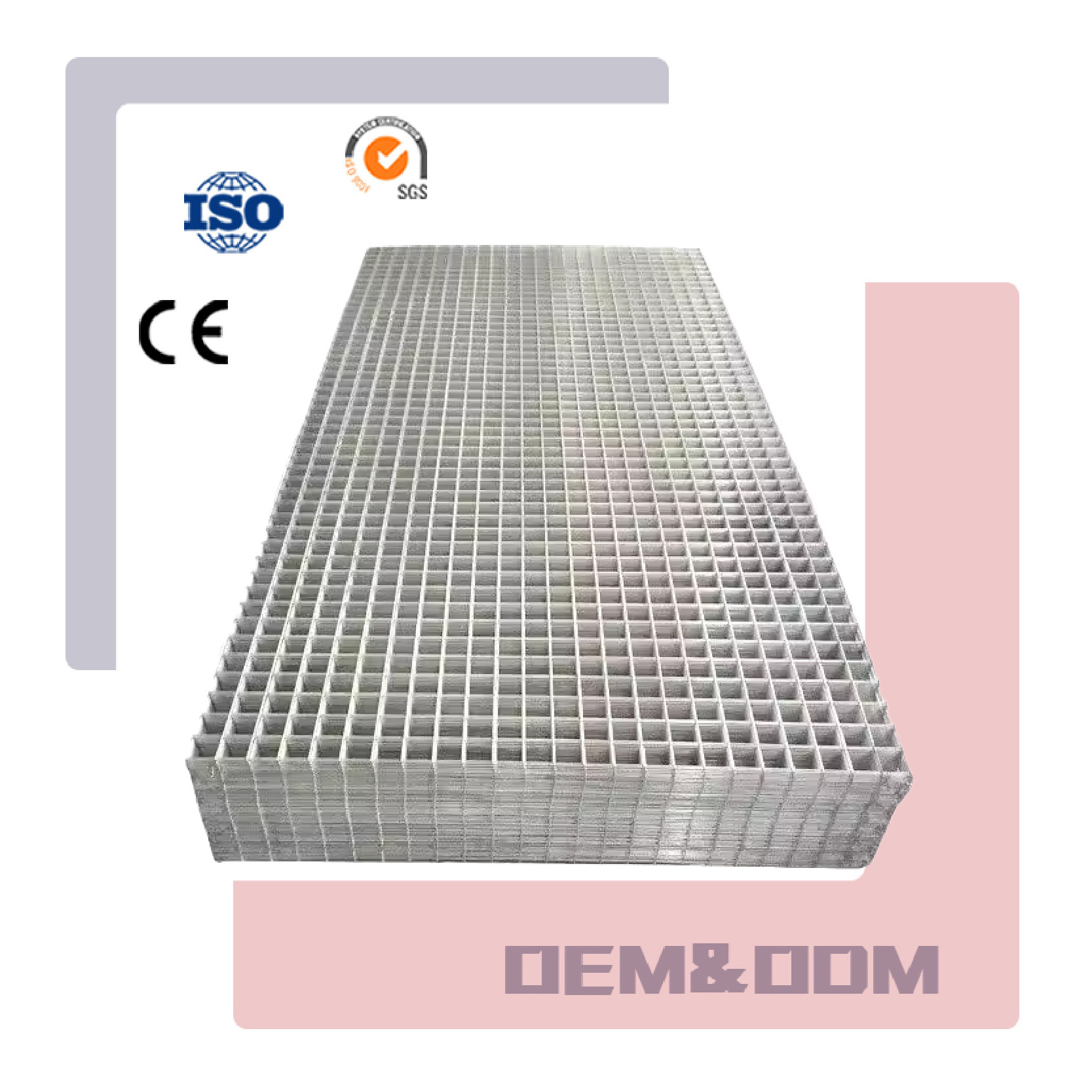

Product Name
|
welded concrete reinforced mesh
|
|
|
|
|||
|
Material
|
Carbon steel rebar.
|
|
|
|
|||
|
Surface treatment
|
Hot dip galvanized after/before welded,
Electric galvanized after/before welded, |
|
|
|
|||
|
1.GERMAN STANDARD DIN488 (SIZE:2150MMX5000MM)
|
|
|
|
|
|
|
||||||
|
Ref No.
|
Std Unit
|
Longitudinal Wires(mm)
|
Cross Wire(mm)
|
Pitch of Wire(mm)
|
Mass(Kg)
|
Mass(Kg/m2)
|
||||||
|
Q131
|
Sheet
|
5
|
5
|
150@150
|
22.476
|
2.091
|
||||||
|
Q181
|
Sheet
|
6
|
6
|
150@150
|
32.401
|
3.014
|
||||||
|
Q221
|
Sheet
|
6.5/5.0
|
6.5
|
150@150
|
33.707
|
3.316
|
||||||
|
Q295
|
Sheet
|
7.5/5.5
|
7.5
|
150@150
|
44.245
|
4.116
|
||||||
|
Q378
|
Sheet
|
8.5/6
|
8.5
|
150@150
|
66.659
|
5.157
|
||||||
|
2. Australia/New Zealand standard AS/NZS 4671:2001(SIZE:6000X2400mm)
|
|
|
|
|
|
|||||
|
Ref No.
|
Std Unit
|
Longitudinal
Wires(mm)
|
Edge wires
(mm)
|
Cross
Wires(mm）
|
Mass(Kg)
|
|||||
|
SL81(F81)
|
Sheet
|
7.6 @100
|
7.60 @100
|
7.60 @100
|
105
|
|||||
|
SL102(F102)
|
Sheet
|
9.5 @200
|
6.75 @100
|
9.50 @200
|
80
|
|||||
|
SL92(F92)
|
Sheet
|
8.6 @200
|
6 @100
|
8.60 @200
|
66
|
|||||
|
SL82(F82)
|
Sheet
|
7.6 @200
|
5.37 @100
|
7.60 @200
|
52
|
|||||
|
SL72(F72)
|
Sheet
|
6.75 @200
|
4.77 @100
|
6.75 @200
|
41
|
|||||
|
SL62(F62)
|
Sheet
|
6@200
|
4.77 @100
|
6 @200
|
33
|
|||||
|
SL52(F52)
|
Sheet
|
4.77 @200
|
4.77 @100
|
4.77 @200
|
21
|
|||||
|
3.BRITISH STANDARD BS4483
|
|
|
|
|
|
|
||||||
|
Ref No.
|
Std Unit
|
Longitudinal Wires(mm)
|
Cross Wire(mm)
|
Pitch of Wire(mm)
|
No. of sheet per ton
|
Mass(Kg/m2)
|
||||||
|
A393
|
Sheet
|
10
|
10
|
200@200
|
15
|
6.16
|
||||||
|
A252
|
Sheet
|
8
|
8
|
200@200
|
22
|
3.95
|
||||||
|
A193
|
Sheet
|
7
|
7
|
200@200
|
29
|
3.02
|
||||||
|
A142
|
Sheet
|
6
|
6
|
200@200
|
40
|
2.22
|
||||||
|
A98
|
Sheet
|
5
|
5
|
200@200
|
57
|
1.54
|
||||||
Product advantages
：
1.To advance the quality of engineering;
2. Improve the function of concrete anti-seismic and crack resistance;
3.Reduce the amount of steel usage;
4.High operating efficiency.
2. Improve the function of concrete anti-seismic and crack resistance;
3.Reduce the amount of steel usage;
4.High operating efficiency.
5.
The company can customize various sizes and specifications of the product,according to the drawing design and production.
The products sold in our store have their
own factories
in Hebei, Tianjin, Liaocheng and other places in China.
We are
always welcome
and will take care of
your airport pick-up, hotel and catering
if needed.
Welcome to
contact us
or leave your contact information to
get free samples
and
discounted prices.
We are always at your service.
