chinese 2 ton electric forklift battery operated forklift for sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $10710

≥2 Sets

US $10530

Free Inquiry

Customized Request

Quick Details

chinese 2 ton electric forklift battery operated forklift for sale

Product Description

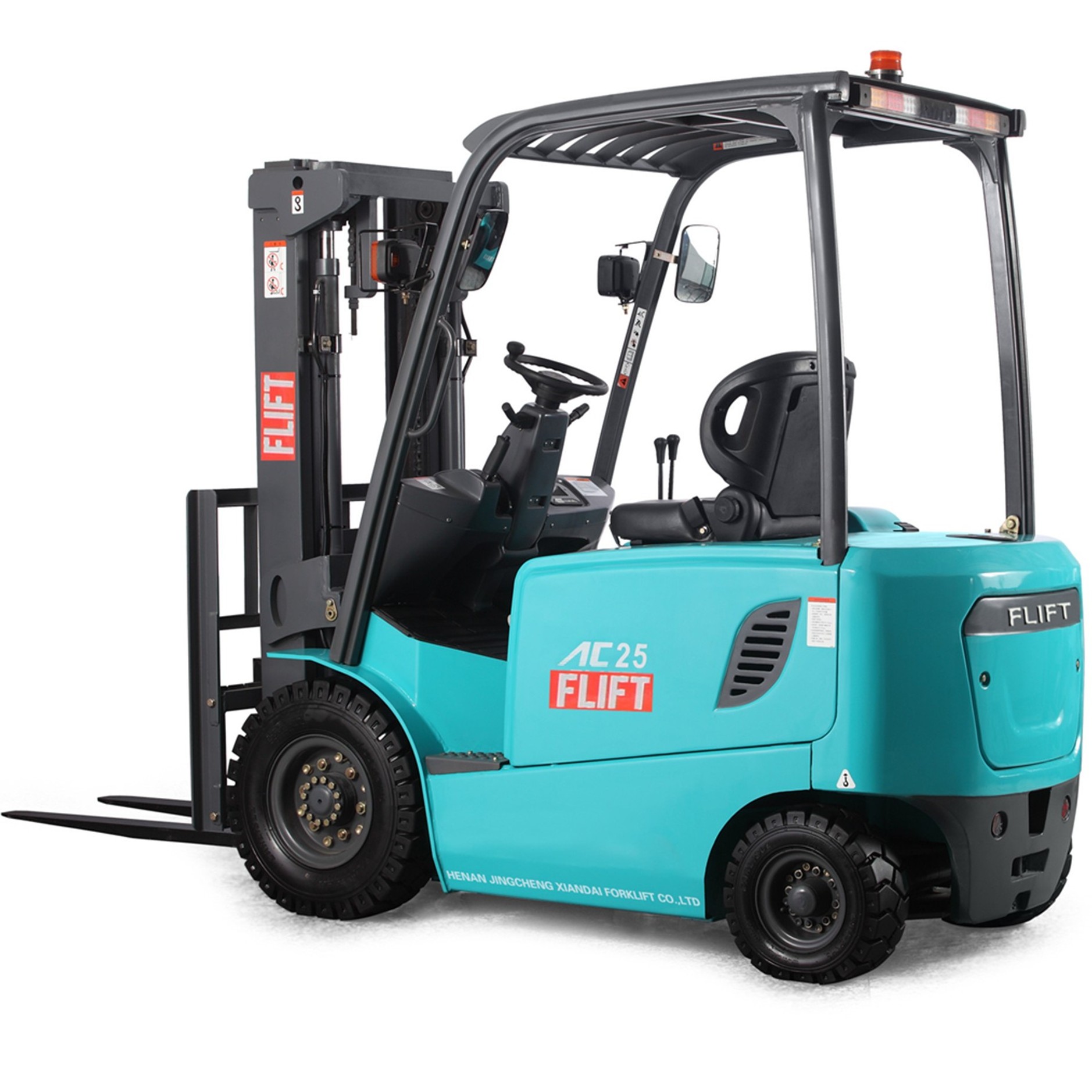

FLIFT BRAND 2.0-2.5 TON 4-WHEEL ELECTRIC FORKLIFT
FLIFT BRAND 2.0-2.5 TON 4-WHEEL ELECTRIC FORKLIFT
General	1	Model			FB20	FB25
	2	Power Type			Electric	Electric
	3	Rated Capacity		kg	2000	2500
	4	Load Centre		mm	500	500
Characteristic & Dimension	5	Lift Height		mm	3000	3000
	6	Fork Size	L×W×T	mm	107012040	107012040
	7	Mast Tilt Angle	F/R	Deg	6°/12°	6°/12°
	8	Front Overhang (Wheel Center to fork face)		mm	465	465
	9	Tread	F/R	mm	960/950	960/950
	10	Ground Clearance (Bottom of mast)		mm	110	110
	11	Fork Spread	Min./Max.		240/1020	240/1020
	12	Overall Dimension	Length to face of fork(Without fork)	mm	2360	2360
	13		Overall Width	mm	1160	1160
	14		Mast Lowered Height	mm	2070	2070
	15		Mast Extended Height(With backrest)	mm	4020	4020
	16		Overall Guard Height	mm	2240	2240
	17	Turning Radius(outside)		mm	2075	2075
	18	Min. insecting aisle		mm	2250	2250
Performance	19	Speed	Travel(Empty load)	km/h	15	15
	20	Speed	Lifting(Full load)	mm/s	300	300
	21	Max. Gradeability		%	15	15
Chassis	22	Tire	Front		7.00-12-12PR	7.00-12-12PR
	23	Tire	Rear		18*7-8-14PR	18*7-8-14PR
	24	Wheel Base		mm	1510	1510
	25	Service Weight		kg	4170	4410
Power & Transmission	26	Motor	Drive Motor	kw	11	11
	27	Motor	Lift Motor	kw	8.6	8.6
	28	Battery	Voltage/Capacity	V/Ah	48/560	48/630
	29	Controller	Manufacturer		CURTIS	CURTIS
	30	Controller	Type		AC	AC
	31	Operating Pressure for Attachment		Mpa	17.5	17.5
