Quick Details
-
Filling Accuracy:
-
±1ML
-
Voltage:
-
50HZ/AC220V(380V)
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CBW
-
Dimension(L*W*H):
-
1685*1300*2005mm
-
Weight:
-
450 KG, 1g-500g
-
After Warranty Service:
-
1 Year/12 Months
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Product name:
-

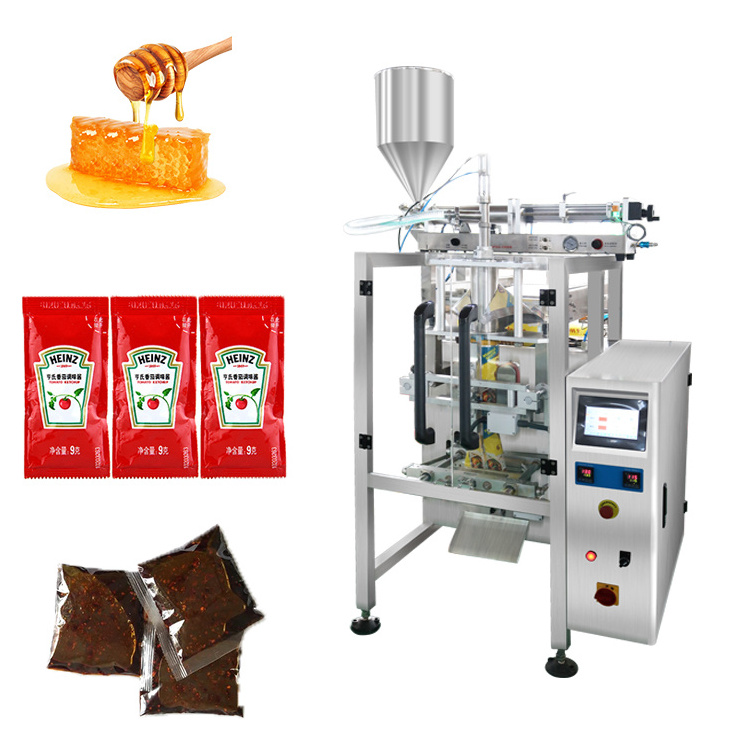

Multifunctional Small Vertica Packaging Machine
-
Keywords:
-
full automatic
-
Usage:
-
Sauce Liquid Filling Packaging
-
Main Function:
-
Weighing Packaging Filling Sealing
-
Bag type:
-
Sealing pocket Self-standing bag Plastic bag fold pocket
-
Certification:
-
CE
-
Packing speed:
-
30-60Bags/min
Quick Details
-
Machinery Capacity:
-
400BPH, 500BPH, 2000BPH, 1000BPH, 100BPH, 200BPH, Other
-
Packaging Material:
-
Plastic, Paper, Other
-
Filling Material:
-
Beer, Milk, Water, Oil, Juice
-
Filling Accuracy:
-
±1ML
-
Voltage:
-
50HZ/AC220V(380V)
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CBW
-
Dimension(L*W*H):
-
1685*1300*2005mm
-
Weight:
-
450 KG, 1g-500g
-
After Warranty Service:
-
1 Year/12 Months
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Product name:
-
Multifunctional Small Vertica Packaging Machine
-
Keywords:
-
full automatic
-
Usage:
-
Sauce Liquid Filling Packaging
-
Main Function:
-
Weighing Packaging Filling Sealing
-
Bag type:
-
Sealing pocket Self-standing bag Plastic bag fold pocket
-
Certification:
-
CE
-
Packing speed:
-
30-60Bags/min
1. Function
Automatically measuring, making bags, filling, sealing, cutting, printing the lot number and finished product conveying. Applicable for the liquid product, such as medicinal liquid, ice lolly, milk, water, ketchup, oil.etc.
2. Features
· Servo motors for film drawing down system;
· Famous brand PLC. Pneumatic system for vertical and horizontal sealing;
· It can complete measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with finished product conveyor.
· It can make stick bag.
3. Specification
|
Model |
CBW560BY-4 |
|
Item |
Ketchup and mayonese |
|
Capacity |
Max. 35 bags/min/lane*4lanes |
|
Bag size |
Length: 50--180mm Width: 17--50mm Back sealing: 10mm / 5mm |
|
Film width |
Max.560mm,0.05-0.1mm |
|
Sealing type |
Back sealing/stick bag |
|
Cutting type |
Zig zag or flat, please noted before order |
|
Measuring range |
1-40ml/lane |
|
Air consumption |
0.8Mpa 0.6m3/min |
|
Power source |
1N+PE/50HZ/AC220V(380V)/5.2kw |
|
Dimension |
1685*1300*2005mm |
|
Weight |
450kg |
4. Machine size
5. Bag samples
