Quick Details
-
Dimension(L*W*H):
-
1940*1150*1900
-
Weight:
-
200 KG
-
Marketing Type:
-
New Product 2023
-
Mobility:
-
yes
-
Product name:
-
Water Drilling Machine
-
Model:
-
LY200
-
Application:
-
Water Wells Rock Drill Rig
-
Name:
-
Borehole Dth Drilling Rig
-
Feature:
-
Hydraulic Controlling
-
Keyword:
-
Water Drilliing Rig
-
After-sales Service Provided:
-
7x24h
-
Drilling method:
-
Top Drive Hydraulic Rotary Drilling
-
Engine:
-
Disel Engine
-
Drill pipe diameter:
-
50mm 42mm 60mm
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
liyo
-
Voltage:
-
diesel engine
-
Dimension(L*W*H):
-
1940*1150*1900
-
Weight:
-
200 KG
-
Marketing Type:
-
New Product 2023
-
Mobility:
-
yes
-
Product name:
-
Water Drilling Machine
-
Model:
-
LY200
-
Application:
-
Water Wells Rock Drill Rig
-
Name:
-
Borehole Dth Drilling Rig
-
Feature:
-
Hydraulic Controlling
-
Keyword:
-
Water Drilliing Rig
-
After-sales Service Provided:
-
7x24h
-
Drilling method:
-
Top Drive Hydraulic Rotary Drilling
-
Engine:
-
Disel Engine
-
Drill pipe diameter:
-
50mm 42mm 60mm

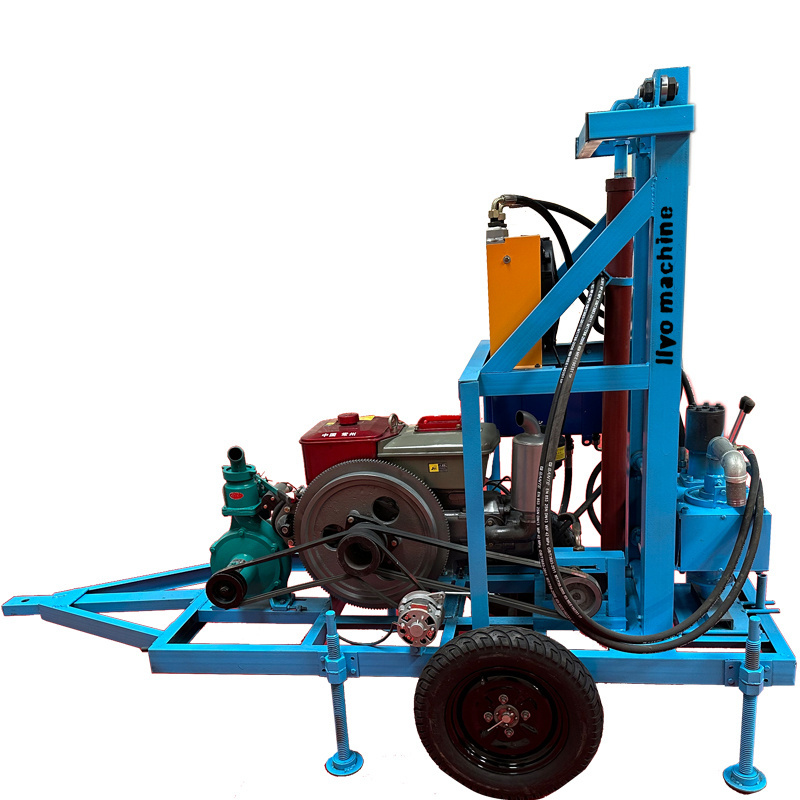

150M Underground Water Rig Drilling Machine
This machine Is a wide range of uses of portable drill. Suitable for railway, water conservancy, bridge, dam foundation and other buildings of well drilling, geological survey, geological core drilling, small grouting hole, blasting hole, according to the different formation of the selection of diamond, composite pieces and alloy drill.This drilling rig can drill
40m,50m,60m,70m,80m,100m,120m,150m
1 This small drilling machine occupies a small area ( 1square meters), a height of 2.5 meters stand, the job can be installed in less than ten minutes.can be used at indoor and outdoor site.
2 The well pipe is fully enclosed, shallow layer has no leakage, can ensure the health and safety of drinking water.
3 Research and Develop by ourself,it breaks difficult problem that easy to drill and hard to disassemble.
4 All the lifting, loading and unloading drill pipe is mechanized, time-saving, labor-saving and easy to operate.
Advantages :
1.One man can operate, auto water flow control function.
2. Double lift chains, with hydraulic oil radiator.
3. Drilling process is stable, no jamming or shaking.
4 .Electric start, it can charge the battery automatically.
5. Thicked and strong water swivel, inlet water pipe can change direction, with the screw to fix the inlet water pipe to ensure there is no water leak.
6. hydraulic oil radiator installed at the top near the hydraulic tank, it can cool the hydraulic oil well, also can prevent accidental collision (if installed below, it is easily crushed during transportation)
Product Description
EASYTO MOVE
The tire of Drilling Machines / Well DrillingMachines / Nail DrillMachine / Water Drilling Machine
HIGH POWER WATER PUMP
3" cast iron water pump, engine driven, no separate mud pump required
HIGH-QUALITY ENGINE
The single-cylinder diesel engine is simple and reliable, very fuel-efficient, and the horsepower can be customized from 22HP-35HP
Note: 35 hp diesel engine will be difficult to start in cold regions
VARIOUS DRILL BITS CAN BE USED
Alloy drill bits and PDC drill bits can be used,
Alloy drill bits are mainly used for soil, gravel, gravel, etc.
PDC bit is used for hard stone and some rock etc.
Note: Mining speed will slow down when encountering rocks, this is normal
Specification
|
TYPE
|
LY-150
|
Drill pipe diameter
|
50mm
|
|
Size
|
1940*1150*1900 mm
|
Drill pipe length
|
1.5 m
|
|
Weight
|
550 kg
|
Drill pipe replacement method
|
thread
|
|
Diesel engine power
|
22HP
|
Max depth
|
220m
|
|
Fuel tank capacity
|
3L
|
Drilling depth
|
150 m
|
|
Pump power
|
3 inch centrifugal pump
|
Drilling diameter
|
50-300mm
|
|
Lift height
|
2.8 m
|
Lifting force
|
3000 kg
|
