- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
OEM
-
Fiber count:
-
12 core
-
Strength member:
-
Two parallel steel wire
-
Self-support wire:
-
1.2 mm steel wire
-
Allowable tensile resistance(short term):
-
600N
-
Allowable tensile resistance(long term):
-
300N
-
Allowable Crush Resistance(short term):
-
2200(N/1000mm)
-
Allowable Crush Resistance(long term):
-
1000(N/1000mm)
Quick Details
-
Type:
-
Fiber Optic Cable
-
Model Number:
-
GJYXCH-LS
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
OEM
-
Fiber count:
-
12 core
-
Strength member:
-
Two parallel steel wire
-
Self-support wire:
-
1.2 mm steel wire
-
Allowable tensile resistance(short term):
-
600N
-
Allowable tensile resistance(long term):
-
300N
-
Allowable Crush Resistance(short term):
-
2200(N/1000mm)
-
Allowable Crush Resistance(long term):
-
1000(N/1000mm)
Product Description
Fiber drop cable GJYXCH-FS
with two parallel steel wire and 1.2/1.0 mm self-supporting wire , g657a1, LSZH

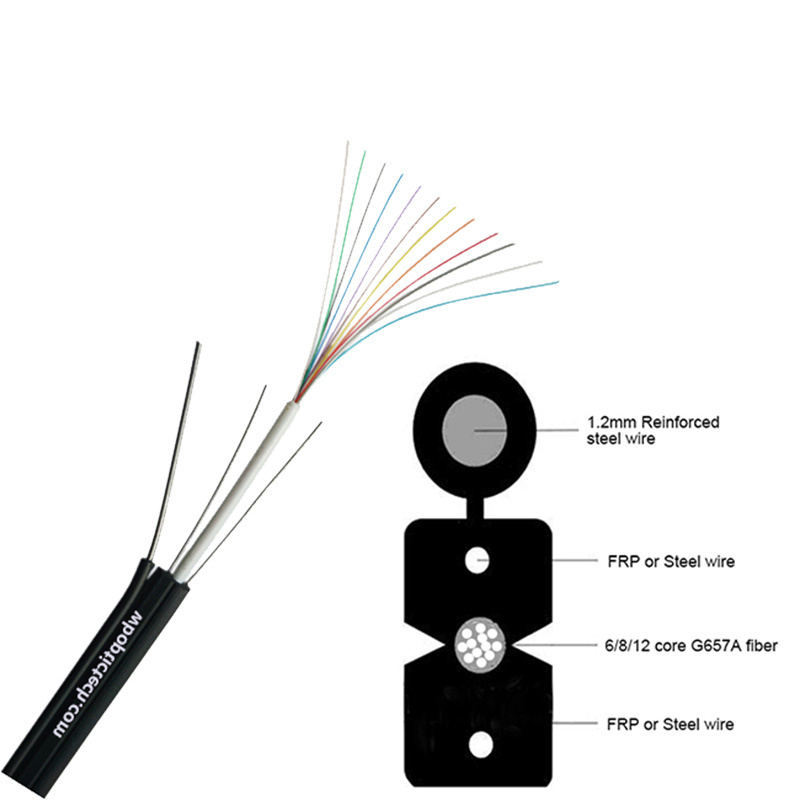

FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in the fiber optic network. The fibers is position between two parallel FRP / steel wire. Then it is self-supported by diameter 1.2mm steel wire. Last this cable is completed with black or white LSZH sheath.
Feature
1, High tensile of the diameter1.2mm steel wire meet the requirement of self-supporting and reducing the installation cost.
2, Two parallel FRP/ steel wire strength members ensure good performance of crush resistance to protect the fiber
3, Novel flute design, easily strip and splice, simplify the installation and maintenance
4, Low smoke zero halogen and flame retardant sheath
5, Single mode
6, (4.0±0.2)x(6.0±0.2)mm
7, Compliant with Telcordia GR-326-CORE specification
2, Two parallel FRP/ steel wire strength members ensure good performance of crush resistance to protect the fiber
3, Novel flute design, easily strip and splice, simplify the installation and maintenance
4, Low smoke zero halogen and flame retardant sheath
5, Single mode
6, (4.0±0.2)x(6.0±0.2)mm
7, Compliant with Telcordia GR-326-CORE specification
Application
1.Fiber to the home (FTTH)
2.Wide Area Networks (WANs)
3.Industrial, medical & military
4.CATV
5.Video
6.Active Device Termination
7.Premise Installations
8.Telecommunication Networks
2.Wide Area Networks (WANs)
3.Industrial, medical & military
4.CATV
5.Video
6.Active Device Termination
7.Premise Installations
8.Telecommunication Networks
Technical Data
|
Part Number
|
Self-supportiing Drop Cable GJYXCH
|
|
|
|
Fiber Count
|
12 core
|
|
|
|
Strength Member
|
One self-supporting 1.2mm steel wire and Two parallel 0.45mm steel wire
|
|
|
|
Cable Dimension (WxH approx.)
|
(4.0±0.2)x(6.0±0.2)mm
|
|
|
|
Out Jacket
|
LSZH
|
|
|
|
Out Jacket color
|
black or white
|
|
|
|
Application
|
FTTH cable (Fiber to the home), used indoor, Access network
|
|
|
|
Items
|
|
Unit
|
G.657A1 Specification
|
|
|
Mode Field Diameter
|
1310nm
|
μm
|
9.0±0.4
|
|
|
|
1550nm
|
μm
|
10.1±0.5
|
|
|
Cladding Diameter
|
|
μm
|
124.8±0.7
|
|
|
Cladding Non-Circularity
|
|
%
|
≤0.7
|
|
|
Core-Cladding Concentricity Error
|
|
μm
|
≤0.5
|
|
|
Coating Diameter
|
|
μm
|
245±5
|
|
|
Coating Non-Circularity
|
|
%
|
≤6.0
|
|
|
Cladding-Coating Concentricity Error
|
|
μm
|
≤12.0
|
|
|
Cable Cutoff Wavelength
|
|
nm
|
λcc≤1260
|
|
|
Attenuation (max.)
|
1310nm
|
dB/km
|
≤0.35
|
|
|
|
1550nm
|
dB/km
|
≤0.21
|
|
|
Macro-Bending Loss
|
1turn×10mm radius@1550nm
|
dB
|
≤0.75
|
|
|
|
1turn×10mm radius@1550nm
|
dB
|
≤1.5
|
|
|
NO.
|
Item
|
|
Requirement
|
|
|
1
|
Allowable Tensile Strength
|
Short Term
|
600N
|
|
|
|
|
Long Term
|
300N
|
|
|
2
|
Allowable Crush Resistance
|
Long Term
|
2200 (N/100mm)
|
|
|
|
|
Long Term
|
1000 (N/100mm)
|
|
|
3
|
Minimum Static Bend Radius
|
|
10 times
|
|
|
4
|
Minimum Dynamic Bend Radius
|
|
20 times
|
|
|
5
|
Operation Temperature
|
|
40℃~+70℃
|
|
|
6
|
Nominal Cable
|
Diameter
|
(4.0±0.2)x(6.0±0.2)mm
|
|
|
|
|
Weight
|
21.5kg/km
|
|
|
7
|
Fiber Color Code
|
01- Blue, 02- Orange, 03- Green, 04- Brown, 05- Grey, 06- White, 07- Red, 08- Black,
|
|
|
Packing
Related Products
Our Company
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to Pay the order ?
A: You can pay by TT,Western Union,Paypal or others.
Q6: Do you offer guarantee for the products?
A: 30 Years' Guarantee for fiber optic cable.
