Quick Details
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
2700K-6000K
-
Color Rendering Index(Ra):
-
Ra90, Ra95, Ra97 optional
-
Support Dimmer:
-
On - off/Triac/0-10V/DALI optional
-
Application:
-
Wall Washer, Hotel lobby, convention center, Clothing store, shoe stores, Furniture stores
-
Input Voltage(V):
-
AC100-277V
-
Lamp Luminous Flux(lm):
-
1080
-
Model Number:
-
T9570TD008-12W
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM/ODM
-
Product name:
-
Recessed Square Ceiling Light, LED Spot Light Square
-
LED Light Source:
-
COB Chip
-
Beam angle:
-
10°*50°
-
Installation:
-
Recesssed LED Downlight
-
Dimmable:
-
Triac/0-10V/Dali
-
Type:
-
Led Commercial Recessed Downlight
-
Color:
-
White
-
Keyword 1:
-
Illumination Accent Lighting Artwork Polarized downlight
-
Keywords 2:
-
LED Down Light Square, Square LED Spotlight
-
Keywords 3:
-
Square Frame Spot Light, Downlight Ceiling Square
-
Working Lifetime(Hour):
-
50000
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
100
-
Lamp Body Material:
-
Aluminum Alloy
-
Install Style:
-
Embeded/Recessed
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
2700K-6000K
-
Color Rendering Index(Ra):
-
Ra90, Ra95, Ra97 optional
-
Support Dimmer:
-
On - off/Triac/0-10V/DALI optional
-
Application:
-
Wall Washer, Hotel lobby, convention center, Clothing store, shoe stores, Furniture stores
-
Input Voltage(V):
-
AC100-277V
-
Lamp Luminous Flux(lm):
-
1080
-
Model Number:
-
T9570TD008-12W
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM/ODM
-
Product name:
-
Recessed Square Ceiling Light, LED Spot Light Square
-
LED Light Source:
-
COB Chip
-
Beam angle:
-
10°*50°
-
Installation:
-
Recesssed LED Downlight
-
Dimmable:
-
Triac/0-10V/Dali
-
Type:
-
Led Commercial Recessed Downlight
-
Color:
-
White
-
Keyword 1:
-
Illumination Accent Lighting Artwork Polarized downlight
-
Keywords 2:
-
LED Down Light Square, Square LED Spotlight
-
Keywords 3:
-
Square Frame Spot Light, Downlight Ceiling Square
-
Working Lifetime(Hour):
-
50000
Who we are and what we do?
We are a
lighting company
with
research on optics
and
mainly serve for lighting designers and architects
. Considering that the quality of the lens system has a huge impact on the characteristics, performance, and efficiency of an LED luminaire, we see a focus of its development work on optical systems. In order to guarantee the product's
5-year warranty
, the
materials we used mainly come from well-known international and domestic brands.
Products Description

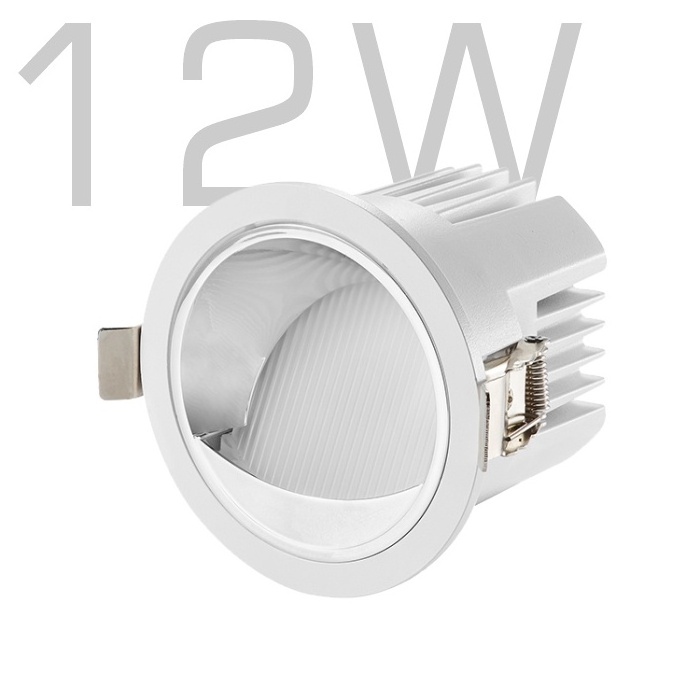

Wall Washer COB LED Downlight for Hotels and stores:
12W/ 20W/ 30W Wall Washer spot lighting data:
Details Images
Cuthole: 75-80mm
Cuthole: 95-100mm
Cuthole: 125-130mm
What Effect LED down spot lighting quality?
Famous brand COB chips, LED junction temperature 125ºC , long lifespan, CRI>90, 95/97 optional .
2. LED Driver:
Famous brand driver, reliable quality , long lifespan, flicker free driver .
Famous brand driver, reliable quality , long lifespan, flicker free driver .
3. High quality lens:
clear spot, no dark area.
10º * 50 º beam angle wall washer
10º * 50 º beam angle wall washer
Dialux Suggestion
A:The distance between fitting center and wall edge;
B: The distance between two fittings;
H: height between ceiling and floor
In order to illuminate walls uniformly,
A is equal to 1/3 H
, or slightly less.
As to experience,
A<B<1.2A
will get the best performance.
A shorter distance to the wall reduces the risk of glare and improves lighting efficiency, but also decreases uniformly.
To achieve uniform illumination of a wall by overlapping several light distribution area is necessary, at least three wall washers are required.
Application
|
LED wall washer light Application:
|
|
|
|
|
||||
|
Hotel lobby, clubhouse hall, automobile 4S shop, convention center and other high-floor place etc;
|
|
|
|
|
||||
|
Retail store: Cloth stores, shoe stores, Furniture stores, Jewelry stores etc;
|
|
|
|
|
||||
|
Showroom: Car showroom, product showroom, Jewelry showroom etc;
|
|
|
|
|
||||
|
Supermarket, shopping mall and some commercial places etc.
|
|
|
|
|
||||
Installation Instructions
Our Service
Looking forward to cooperating with you, please contact us and give us the opportunity to serve you.
We provide OEM/ODM customized private labels, customized formulas and packaging, support sample services, factory direct sales prices, low MOQ, mass production, on-time delivery and provide perfect after-sales service.
We provide OEM/ODM customized private labels, customized formulas and packaging, support sample services, factory direct sales prices, low MOQ, mass production, on-time delivery and provide perfect after-sales service.
WHY CHOOSE US :
1. We are
factory suppliers
, not trading companies.10+ Years OEM and ODM Experiences.
2.
5 years warranty
high quality optics products make your project perfectly.
3.
Professional
sales engineer
7*24 hours
services.
4. Fast delivery :
3-7
sample days ;
15-20
days order delivery.
5.
Free
Lighting Simulation
service.
If you
like our products, you can contact us
get 2020 full catalogue and price list.
If you like our store, please add our store to your favorite store and follow us, you can
check case sharing images and video.
