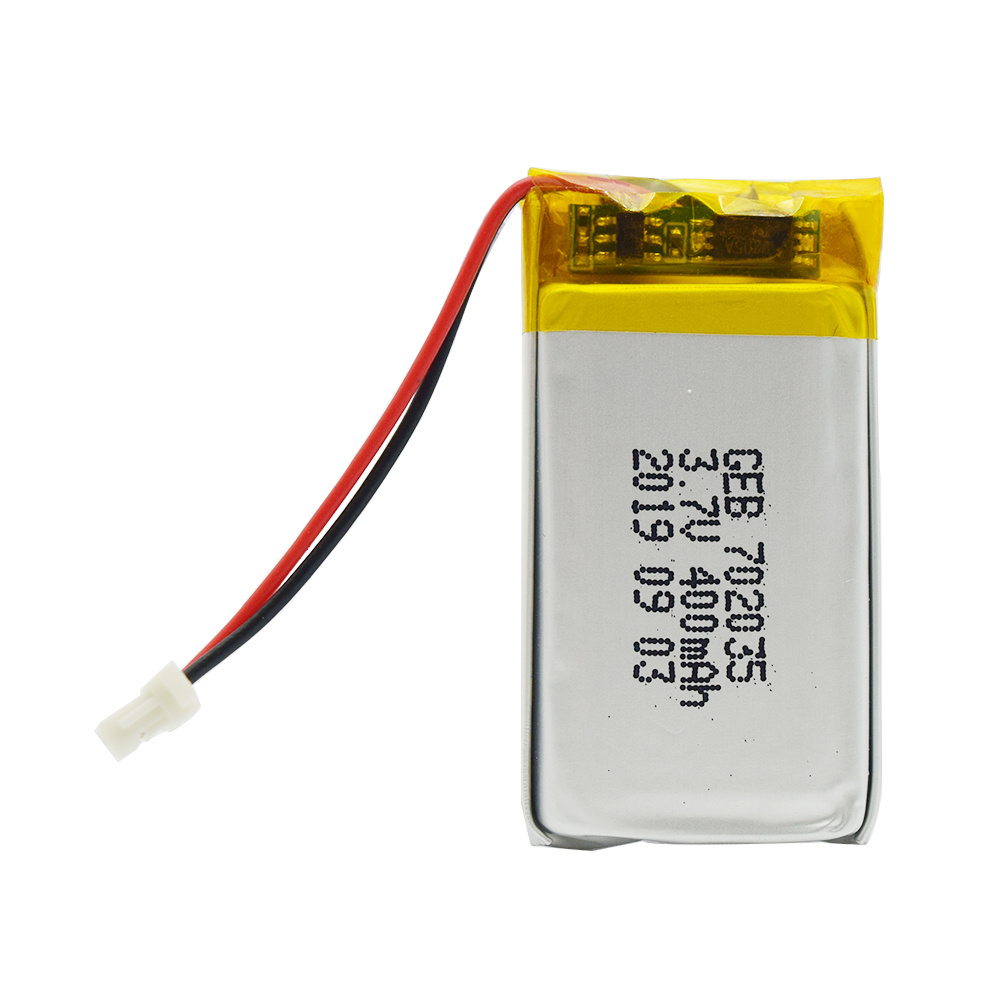

Quick Details
-
Brand Name:
-
GEB
-
Model Number:
-
702035
-
Battery Size:
-
702035 3.7V 400mah
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
15g, 15g
-
The charging ratio:
-
1c
-
The discharge rate:
-
1c
-
Type:
-
Li-polymer
-
Size:
-
7.0*20*35mm
-
cycle life:
-
around 300-500times
-
OEM:
-
Accept
-
warranty:
-
12 month
-
Voltage:
-
3.7V
-
Capacity:
-
400mAh
-
Material:
-
Li(NiCoMn)O2
-
Warranty:
-
1 year
Quick Details
-
Storage Type:
-
home
-
Anode Material:
-
LCO
-
Application:
-
Toys, Consumer Electronics, SUBMARINES
-
Brand Name:
-
GEB
-
Model Number:
-
702035
-
Battery Size:
-
702035 3.7V 400mah
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
15g, 15g
-
The charging ratio:
-
1c
-
The discharge rate:
-
1c
-
Type:
-
Li-polymer
-
Size:
-
7.0*20*35mm
-
cycle life:
-
around 300-500times
-
OEM:
-
Accept
-
warranty:
-
12 month
-
Voltage:
-
3.7V
-
Capacity:
-
400mAh
-
Material:
-
Li(NiCoMn)O2
-
Warranty:
-
1 year
|
Item
|
|
Specification
|
|
|
Nominal Voltage
|
|
3.7V
|
|
|
Nominal Capacity
|
|
400mAh(0.2C discharge)
|
|
|
Size
|
|
7.0*20*35mm OR as customer request
|
|
|
Weight
|
|
15g
|
|
|
Composed Type
|
|
1S
|
|
|
Max Charge Protetion Voltage
|
|
4.2V
|
|
|
Cut-off Discharge Voltage
|
|
3V
|
|
|
Charging Current
|
|
0.2C
|
|
|
Charging Time
|
|
2H
|
|
|
Charge Method
|
|
CC-CV
(constant current and contant voltage ) |
|
|
Max Discharge Current
|
|
2C
|
|
|
Recharge Cycle Life
|
|
500times
|
|
|
Working Temperature
|
Charge
|
0~45°C,45~85%RH
|
|
|
|
Dis-charge
|
-20~60°C,45~85%RH
|
|
|
StorageTemperature
|
One month
|
-20~60°C,45~85%RH
|
|
|
and Humidity
|
Three months
|
-20~45°C,45~85%RH
|
|
|
|
One year
|
-20~25°C,45~85%RH
|
|
|
Protection Fuctions
|
|
Over charge, Over discharge,
Over load, Short Circuit |
|
|
Warranty
|
|
12months
|
|
Title goes here.
Title goes here.
Title goes here.
|
Model
|
Capacity
|
Normal
voltage |
Dimension max(mm)
|
|
|
||
|
|
mAh
|
V
|
Thickness
|
Width
|
Length
|
||
|
GEB201212
|
10
|
3.7V
|
2.0±0.2
|
12±0.5
|
12±0.5
|
||
|
GEB501215
|
50
|
3.7V
|
5.0
|
12.0
|
16.5
|
||
|
GEB401120
|
60
|
3.7V
|
4.0
|
11.0
|
22.0
|
||
|
GEB085046
|
80
|
3.7V
|
0.8
|
50.0
|
46.0
|
||
|
GEB302025
|
100
|
3.7V
|
3.0
|
20.0
|
25.0
|
||
|
GEB402020
|
100
|
3.7V
|
4.0
|
20.0
|
22.0
|
||
|
GEB401230
|
110
|
3.7V
|
4.0
|
12.2
|
31.2
|
||
|
GEB401430
|
120
|
3.7V
|
4.0
|
17.0
|
24.0
|
||
|
GEB551525
|
140
|
3.7V
|
5.5
|
15.0
|
25.0
|
||
|
GEB352030
|
150
|
3.7V
|
3.8
|
21.0
|
32.0
|
||
|
GEB402025
|
150
|
3.7V
|
4.0
|
20.0
|
27.0
|
||
|
GEB014461
|
180
|
3.7V
|
1.0±0.2
|
44±0.5
|
61±0.8
|
||
|
GEB402030
|
200
|
3.7V
|
4.0
|
20.0
|
30.0
|
||
|
GEB502030
|
250
|
3.7V
|
5.0
|
20.0
|
31.2
|
||
|
GEB303040
|
300
|
3.7V
|
3.0
|
30.0
|
42.0
|
||
|
GEB602030
|
300
|
3.7V
|
6.0
|
20.0
|
31.2
|
||
|
GEB652530
|
400
|
3.7V
|
6.5
|
25.5
|
30.5
|
||
|
GEB802525
|
400
|
3.7V
|
7.7
|
25.2
|
25.8
|
||
|
GEB502248
|
450
|
3.7V
|
5.0
|
22.5
|
48.5
|
||
|
GEB652040
|
450
|
3.7V
|
6.5
|
20.5
|
40.5
|
||
|
GEB303450
|
500
|
3.7V
|
3.5
|
35.0
|
52.0
|
||
|
GEB502540
|
500
|
3.7V
|
5.2
|
25.2
|
42.0
|
||
|
GEB503035
|
500
|
3.7V
|
5.0
|
30.0
|
37.0
|
||
|
GEB602535
|
500
|
3.7V
|
6.2
|
25.5
|
37.0
|
||
|
GEB102525
|
550
|
3.7V
|
10.15
|
25.3
|
25.8
|
||
|
GEB503040
|
600
|
3.7V
|
5.0
|
30.0
|
42.0
|
||
|
GEB602540
|
600
|
3.7V
|
6.2
|
25.5
|
42.0
|
||
|
GEB742045
|
630
|
3.7V
|
7.4
|
20.0
|
47.0
|
||
|
GEB603040
|
650
|
3.7V
|
6.0
|
30.0
|
41.5
|
||
|
GEB473450
|
700
|
3.7V
|
4.7
|
34.5
|
45.5
|
||
|
GEB653040
|
750
|
3.7V
|
6.5
|
30.5
|
40.5
|
||
|
GEB603048
|
850
|
3.7V
|
6.2
|
30.5
|
62.0
|
||
|
Model
|
Capacity
|
Normal
voltage |
Dimension max(mm)
|
|
|
||
|
|
mAh
|
V
|
Thickness
|
Width
|
Length
|
||
|
GEB603450
|
1000
|
3.7V
|
6.0
|
34.3
|
50.0
|
||
|
GEB703048
|
1000
|
3.7V
|
7.0
|
30.5
|
48.5
|
||
|
GEB903040
|
1000
|
3.7V
|
9.0
|
30.5
|
40.8
|
||
|
GEB902745
|
1100
|
3.7V
|
9.0
|
27.0
|
46.0
|
||
|
GEB802260
|
1150
|
3.7V
|
8.0
|
22.5
|
60.0
|
||
|
GEB503759
|
1200
|
3.7V
|
5.1
|
37.5
|
59.5
|
||
|
GEB703448
|
1200
|
3.7V
|
6.95
|
34.3
|
48.5
|
||
|
GEB853048
|
1200
|
3.7V
|
8.5
|
30.3
|
48.5
|
||
|
GEB703450
|
1300
|
3.7V
|
7.0
|
34.5
|
50.5
|
||
|
GEB703943
|
1300
|
3.7V
|
7.0
|
39.5
|
43.0
|
||
|
GEB943045
|
1350
|
3.7V
|
9.4
|
30.5
|
46.0
|
||
|
GEB593562
|
1400
|
3.7V
|
5.9
|
35.3
|
62.8
|
||
|
GEB653560
|
1400
|
3.7V
|
6.5
|
35.5
|
60.5
|
||
|
GEB454261
|
1500
|
3.7V
|
4.6
|
42.5
|
60.8
|
||
|
GEB473686
|
1550
|
3.7V
|
4.5
|
36.5
|
86.5
|
||
|
GEB504654
|
1500
|
3.7V
|
5.2
|
46.5
|
54.5
|
||
|
GEB704050
|
1600
|
3.7V
|
7.1
|
40.3
|
50.3
|
||
|
GEB883650
|
1650
|
3.7V
|
8.7
|
36.3
|
50.0
|
||
|
GEB524561
|
1700
|
3.7V
|
5.2
|
45.2
|
61.8
|
||
|
GEB703860
|
1800
|
3.7V
|
7.0
|
38.5
|
60.5
|
||
|
GEB103254
|
1900
|
3.7V
|
10.0
|
32.0
|
54.0
|
||
|
GEB555462
|
2000
|
3.7V
|
5.5
|
54.0
|
62.5
|
||
|
GEB803465
|
2000
|
3.7V
|
8.15
|
34.5
|
65.5
|
||
|
GEB455085
|
2100
|
3.7V
|
4.70
|
50.5
|
85.5
|
||
|
GEB953759
|
2200
|
3.7V
|
9.70
|
37.5
|
59.5
|
||
|
GEB923460
|
2300
|
3.7V
|
9.20
|
34.0
|
60.0
|
||
|
GEB605068
|
2400
|
3.7V
|
6.00
|
50.5
|
68.5
|
||
|
GEB546162
|
2500
|
3.7V
|
5.45
|
61.0
|
62.0
|
||
|
Model
|
Capacity
|
Normal
voltage |
Dimension max(mm)
|
|
|
||
|
|
mAh
|
V
|
Thickness
|
Width
|
Length
|
||
|
GEB605085
|
3000
|
3.7V
|
6.60
|
50.5
|
85.5
|
||
|
GEB855085
|
4000
|
3.7V
|
8.50
|
50.3
|
85.0
|
||
|
GEB726090
|
5000
|
3.7V
|
7.20
|
60.0
|
91.5
|
||
|
GEB105085
|
5000
|
3.7V
|
10.00
|
50.5
|
85.5
|
||
|
GEB825292
|
5100
|
3.7
|
8.2
|
52
|
92
|
||
|
GEB113993
|
5200
|
3.7
|
11
|
39.3
|
92.5
|
||
|
GEB3789127
|
5200
|
3.7
|
3.7
|
89
|
127
|
||
|
GEB8045131
|
5300
|
3.7
|
8
|
45.5
|
131.5
|
||
|
GEB3670185
|
5400
|
3.7
|
3.6
|
70
|
185
|
||
|
GEB5757107
|
5500
|
3.7
|
5.6
|
57.4
|
107.5
|
||
|
GEB7247142
|
5800
|
3.7
|
7.2
|
47
|
142
|
||
|
GEB8043125
|
6000
|
3.7
|
8.2
|
43.5
|
125.5
|
||
|
GEB7949116
|
6050
|
3.7
|
8
|
49.5
|
116
|
||
|
GEB786387
|
6300
|
3.7
|
7.8
|
63.5
|
87.5
|
||
|
GEB39100152
|
6600
|
3.7
|
3.9
|
100
|
152
|
||
|
GEB835895
|
6800
|
3.7
|
8.3
|
58
|
95
|
||
|
GEB7865100
|
6950
|
3.7
|
7.7
|
65
|
100
|
||
|
GEB1237132
|
7000
|
3.7
|
11.9
|
37
|
132
|
||
|
GEB106090
|
7300
|
3.7
|
10.8
|
60
|
90
|
||
|
GEB688196
|
7500
|
3.7
|
6.9
|
81
|
96
|
||
|
GEB125685
|
7700
|
3.7
|
11.5
|
56
|
85
|
||
|
GEB43104138
|
7900
|
3.7
|
4.3
|
104
|
138
|
||
|
GEB1060120
|
8000
|
3.7
|
10
|
60
|
120
|
||
|
GEB7865120
|
8050
|
3.7
|
7.7
|
65
|
118
|
||
|
GEB4561300
|
8500
|
3.7
|
4.6
|
61.5
|
300
|
||
|
GEB8053130
|
8700
|
3.7
|
8
|
53
|
130
|
||
|
GEB47100148
|
8800
|
3.7
|
4.7
|
100
|
148
|
||
|
GEB7972121
|
9000
|
3.7
|
7.9
|
72
|
121
|
||
|
GEB1442130
|
10000
|
3.7
|
13.9
|
42
|
130
|
||
|
GEB7580150
|
12000
|
3.7
|
7.5
|
80
|
150
|
||
|
Shipping options
|
|
Recommend
|
Delivery time
|
|
|
Express
|
DHL
|
widely recommend
|
3-7 business days
|
|
|
|
UPS
|
widely recommend
|
3-7 business days
|
|
|
|
FEDEX
|
recommend
|
5-7 business days
|
|
|
|
TNT
|
recommend
|
5-7 business days
|
|
|
|
EMS
|
widely recommend
|
5-10 business days
|
|
|
Post mail
|
|
for sample order
|
7-60 business days
|
|
|
Airfreight
|
|
for sample order
|
5-7 business days
|
|
|
By sea
|
|
for sample order
|
7-35 business days
|
|
1,Q: What's the main product in GEB?
A: Rechargeable battery. Li-ion, Lipo battery and power battery pack.
2,Q: What is overcharge?
A: After charge, tested the batteries' initial state and capacity. Charge to 10.0V at 3C current, then charge to 0.01C at CV mode. Observe changes in battery appearance.
3,Q: What is over discharge?
A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in battery appearance
4. Q: Can I have a sample order?
A: Yes, we accept sample order to test and check quality. Batteries can be made as require.
5. Q: Do you have MOQ limit?
A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.
6. Q: How about the lead time?
A: Samples will takes 5-7 business days. Mass production will takes 25-30 days. It depends on quantity.
7. Q: How about shipping and delivery time?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service, delivery time is 11-15 business days. Airline and sea shipping also available.
8 . Q: What about after-sale service?
A: We will offer you 1 year guarantee. If there are any problems, please inform us, we will offer you positive solutions.
