manual rewinding machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $805

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Sunase

Model Number:: VS-600

Weight:: 40kg

Dimension(L*W*H):: 1900*600*1100mm

After-sales Service Provided:: Engineers available to service machinery overseas

Product name:: Manual rewinding machine

Material:: Carbon Steel

Function:: Rewinding/Cutting film

Meter counter:: Machanical

Max unwind:: 600m

Max rewind:: 100m

Certification:: ISO

Quick Details

Voltage:: 0 kw

Power:: 0 kw

Place of Origin:: Jiangsu, China

Brand Name:: Sunase

Model Number:: VS-600

Weight:: 40kg

Dimension(L*W*H):: 1900*600*1100mm

After-sales Service Provided:: Engineers available to service machinery overseas

Product name:: Manual rewinding machine

Material:: Carbon Steel

Function:: Rewinding/Cutting film

Meter counter:: Machanical

Max unwind:: 600m

Max rewind:: 100m

Certification:: ISO

Product Description

SPECIFICATIONS FOR manual rewinding and cutting window film machine
Dynamic type	Manual
Max unwind	600mm diameter
Max rewind	100mm diameter
Meter counter type	Mechanical (wheel drived by rewinder)
Cutting type	Cutting blade
Accessary	One set of knife rest
Weight	40kg
Size	1900×600×1100mm

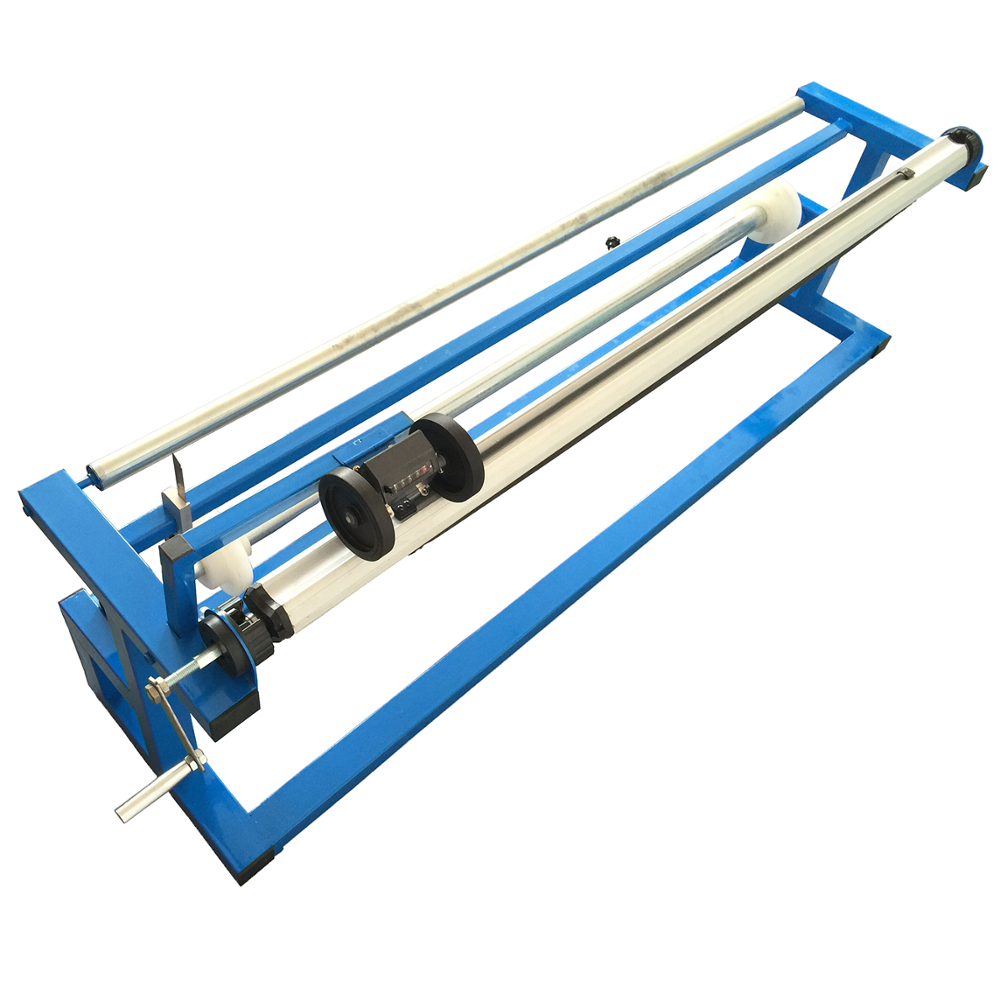

This machine is a manual rewinding machine,and it is specially for rewinding master rolls below 600 meters.

The meter counter wheel will rotate after rolling,and it starts to count meter according its wheel perimeter.

The aluminum roller is suitable for rolls any width below 152cm,it does not require air inflation,it control tight the rolls when it is rolling,and makes it impossible to slide.

Roll by the handle left

Put this blade on the seat frame to cut film width while rolling

Moreover

If you have other requirements,please let us know,we will launch customization,to make it is suitable for you.

Related Products

Item No.:	VS-200
Max load:	200 meters of 2mil film
Max rewind:	100 meters of 2mil film
Applied Width:	Any width below 152cm or 183cm
Meter counter type:	Driven by roller
Weight:	18kg (max 152cm width) 20kg (max 183cm width)
Size:	1800400400mm (max 152cm width) 2110400400mm (max 183cm width)

Item No.:	VSD-600 (Motor)
Max load:	600 meters of 2mil film
Max rewind:	200 meters of 2mil film
Applied Width:	fixed 152cm or fixed 183cm
Meter counter type:	Driven by roller
Voltage:	Standard 220V or cutomized
Speed:	Max 25m/min
Weight:	48kg(152cm) or 52kg(183cm)
Size:	1900×600×1100mm(152cm) 2210×600×1100mm(183cm)

Item No.:	VSDI-600 (Motor)
Max load:	600 meters of 2mil film
Max rewind:	200 meters of 2mil film
Applied Width:	any width below 152cm
Meter counter type:	Sensor reaction
Voltage:	Standard 220V or cutomized
Speed:	Max 25m/min
Weight:	80kg
Size:	1840×600×1200mm

Item No.:	VSQ-3000FS (Motor)
Max load:	3000 meters of 2mil film
Max rewind:	600 meters of 2mil film
Applied Width:	any width below 152cm OR 183cm
Meter counter type:	Driven by roller
Voltage:	Standard 220V or cutomized
Speed:	Max 40m/min
Weight:	600kg(152cm) or 650kg(183cm)
Size:	1900×1700×1100mm (152cm) 2210×1700×1100mm (183cm)

Item No.:	CT-101 (Motor)
Applied tube inner diameter:	3inch (76.2mm)
Max load roll width:	Anywidth below 152cm or 183cm
Voltage:	Standard 220V or cutomized
Weight:	180kg(152cm) or 210kg(183cm)
Size:	2100×420×900mm (152cm) 2410×420×900mm (183cm)

Item No.:	TM-1900J
Applied glass width:	300-1840mm
Applied glass thickness:	1.3-30mm
Speed:	1-6m/min
Voltage:	220v or customized
Weight:	420kg
Size:	2800×2100×1300mm
