Quick Details
-
Model Number:
-

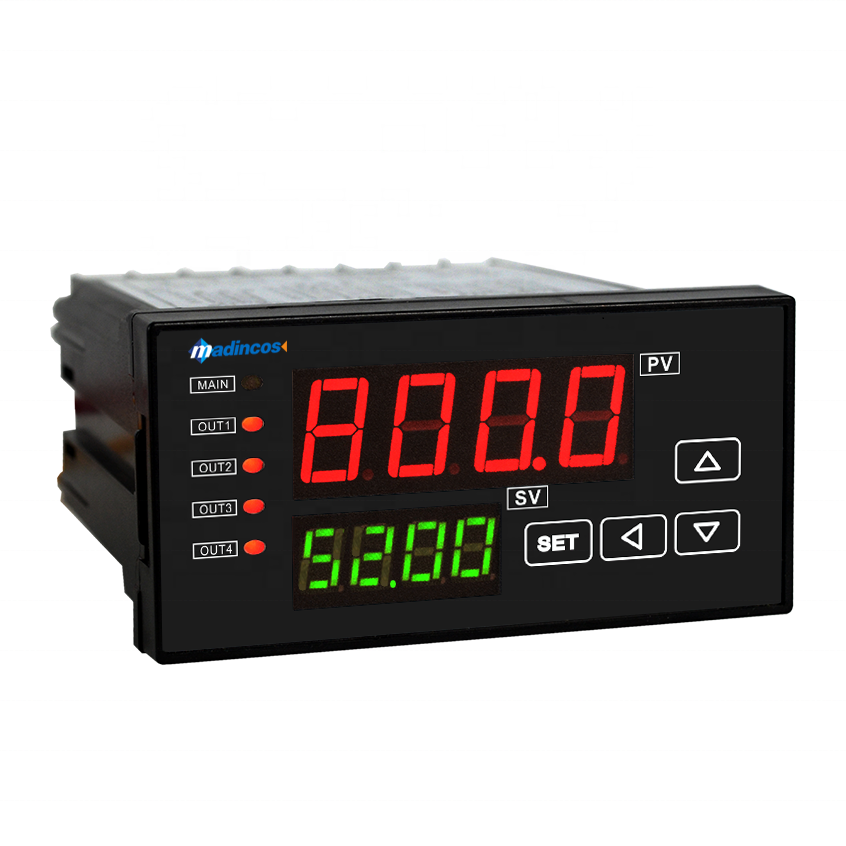

MCR490
-
Product name:
-
universal digital process controller
-
Accuracy:
-
+-(0.2%FS+1) digit
-
LED Display:
-
7 segment 4 digit LED Display
-
Size:
-
96x48x100mm
-
Programmabel universal Input:
-
thermocouple, RTD, pt100, 4-20ma, 0-10ma, 0-5vdc, 1-5vdc, 0-10vdc,mv
-
Control type:
-
auto. pid self-tuning, on-off, manual pid control, optional
-
Control Output:
-
SSR, Relay,4-20ma,optional
-
Auxliary Output:
-
Relay, 4-20ma ,5VDC, 12VDC, 24VDC built-in, optional
-
Communiation 1:
-
RS485,RS232 standard MODBUS-RTU protocol
-
Power Supply:
-
100-240VAC; 24VDC
Quick Details
-
Warranty:
-
1 YEAR
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Madincos
-
Model Number:
-
MCR490
-
Product name:
-
universal digital process controller
-
Accuracy:
-
+-(0.2%FS+1) digit
-
LED Display:
-
7 segment 4 digit LED Display
-
Size:
-
96x48x100mm
-
Programmabel universal Input:
-
thermocouple, RTD, pt100, 4-20ma, 0-10ma, 0-5vdc, 1-5vdc, 0-10vdc,mv
-
Control type:
-
auto. pid self-tuning, on-off, manual pid control, optional
-
Control Output:
-
SSR, Relay,4-20ma,optional
-
Auxliary Output:
-
Relay, 4-20ma ,5VDC, 12VDC, 24VDC built-in, optional
-
Communiation 1:
-
RS485,RS232 standard MODBUS-RTU protocol
-
Power Supply:
-
100-240VAC; 24VDC
|
Specification
Model No.: MCR490
|
|
|
|
|||
|
Accuaracy
|
Accuracy
|
±(0.2%FS +1) digital
|
|
|||
|
Power Supply
|
|
100-240VAC;24VDC
|
|
|||
|
Size/Installation Size
|
|
96x48x100mm
|
|
|||
|
Dispplay
|
|
4 digit, 7 segement LED display
|
|
|||
|
Response time
|
|
＜0.5second when fliter=0
|
|
|||
|
Control Accuracy
|
|
±1 °C when temperature
|
|
|||
|
Input Specification
|
|
|
|
|||
|
Input Type
|
Tempeature: Themocouple, RTD,
Analog: 4-20ma, 0-10ma, 0-5VDC, 0-10VDC,
input type and range etc can be programmble fexibly by key
|
|
|
|||
|
compensation
|
Built- in auto. thermocouple cold junction compensation when thermocouple input
|
|
|
|||
|
Filter
|
0-99, programmable
|
|
|
|||
|
Offset
|
0-2000, programmable
|
|
|
|||
|
Hysteresis
|
0-2000, programmable
|
|
|
|||
|
Control Time
|
1-240 second
|
|
|
|||
|
Heat ,Cold
|
Heat default, programmable
|
|
|
|||
|
Input Type
|
|
Range
|
Input Type
|
|
Range
|
||
|
RTD
|
PT100
|
-200 to 600℃
|
Thermocouple
|
K
|
-50 to 1300℃
|
||
|
|
CU50, CU100
|
-50 to150℃
|
|
J
|
0 to 1000℃
|
||
|
|
4-20mA
|
-20000 to 20000
|
|
T
|
-200 to 350℃
|
||
|
|
0-10mA
|
-20000 to 20000
|
|
E
|
0 to 800℃
|
||
|
|
0-5VDC
|
-20000 to 20000
|
|
R
|
-50 to 1700℃
|
||
|
|
1-5VDC
|
-20000 to 20000
|
|
S
|
-50 to 1700℃
|
||
|
|
|
|
|
B
|
300 to 1800℃
|
||
|
|
|
|
|
N
|
0 to 1300℃
|
||
|
Modular Output Specification: Control Output, Aux. output:OUT1:OUT2,OUT3
|
|
|
|
|
||||
|
Control Type
|
Auto. PID self-tuning, on-off,manual PID control, optional
|
|
|
|
||||
|
Control Output
|
Relay, SSR, 4-20ma Control Output
|
|
|
|
||||
|
Axiliary output
|
OUT1, OUT2 OUT3:
relay, 4-20ma retranmision, rs485, rs232 modbus communicaiton,printing output,optional
|
|
|
|
||||
|
Relay
|
NO, NC, NO+NC, 0.8A, 3A
|
|
|
|
||||
|
Communication
|
isolated RS485 ,RS232 standard Modbus-rtu protocol,
|
|
|
|
||||
|
Retransmission
|
isolated 4-20ma 2 wire retranmission output
|
|
|
|
||||
|
Print
|
printing output for data in digital and curve
|
|
|
|
||||
|
Feed
|
isolated 5VDC, 12VDC, 24VDC built in as auxiliary power supply for transmitter and sensor
|
|
|
|
||||
|
PC software (Communication)
|
Powerful software function: to display and real time minitor in PC for data in digital curve, Print Data and export the data to
excel for further analysi; while memory the data automatically in PC |
|
|
|
||||
Powerful Universal Input, Input Type c
an be Programmable by key,
working with various sensor &transmitter in a controller, user freindly
*RS485,RS232 Serial Communication for Real Time Reading and Monitoring in PC remotely(Optional）
*Standard MODBUS-RTU protocol, can be configurable flexibly with SCADA, DCS, PLC, HMI, OPC server for real time reading and monitoring in control room remotely
|
Packaging
|
|
|
|
Size
|
96(L) * 48 (W) * 100(D)mm
|
|
|
Weight
|
0.4kg per pc
|
|
|
Packaging &Delivery
|
Package:
The normal package is paper box.
PC+Bubble box +paper box with prection further to garantee the delivery the goods to you great.
Delivery: by DHL, TNT, UPS, FEDEX;
by air, by sea
|
|
