Quick Details
-
Voltage:
-
380V.50HZ.3Phase
-
Power:
-
3 -4KW
-
Dimension(L*W*H):
-
10000*1200*1500
-
Weight:
-
About 5.6 T
-
Warranty:
-
1 year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Roll material:
-
45# high grade steel
-
Color:
-
as for your respect
-
Control system:
-
totally automatic PLC control system
-
Roll stations:
-
15 rows
-
Shaft material:
-
45# high grade steel
-
Cutting system:
-
automatic Fly-Saw Cutting and hydraulic cutting
-
Frame material:
-
300 H-high grade steel
-
Cutting blade material:
-
Cr12 mould steel with quenched treatment
-
Certification:
-
CE & ISO9001
Quick Details
-
Production Capacity:
-
8-10m/min
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
TIANYU roll forming machine
-
Voltage:
-
380V.50HZ.3Phase
-
Power:
-
3 -4KW
-
Dimension(L*W*H):
-
10000*1200*1500
-
Weight:
-
About 5.6 T
-
Warranty:
-
1 year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Roll material:
-
45# high grade steel
-
Color:
-
as for your respect
-
Control system:
-
totally automatic PLC control system
-
Roll stations:
-
15 rows
-
Shaft material:
-
45# high grade steel
-
Cutting system:
-
automatic Fly-Saw Cutting and hydraulic cutting
-
Frame material:
-
300 H-high grade steel
-
Cutting blade material:
-
Cr12 mould steel with quenched treatment
-
Certification:
-
CE & ISO9001
Product Description

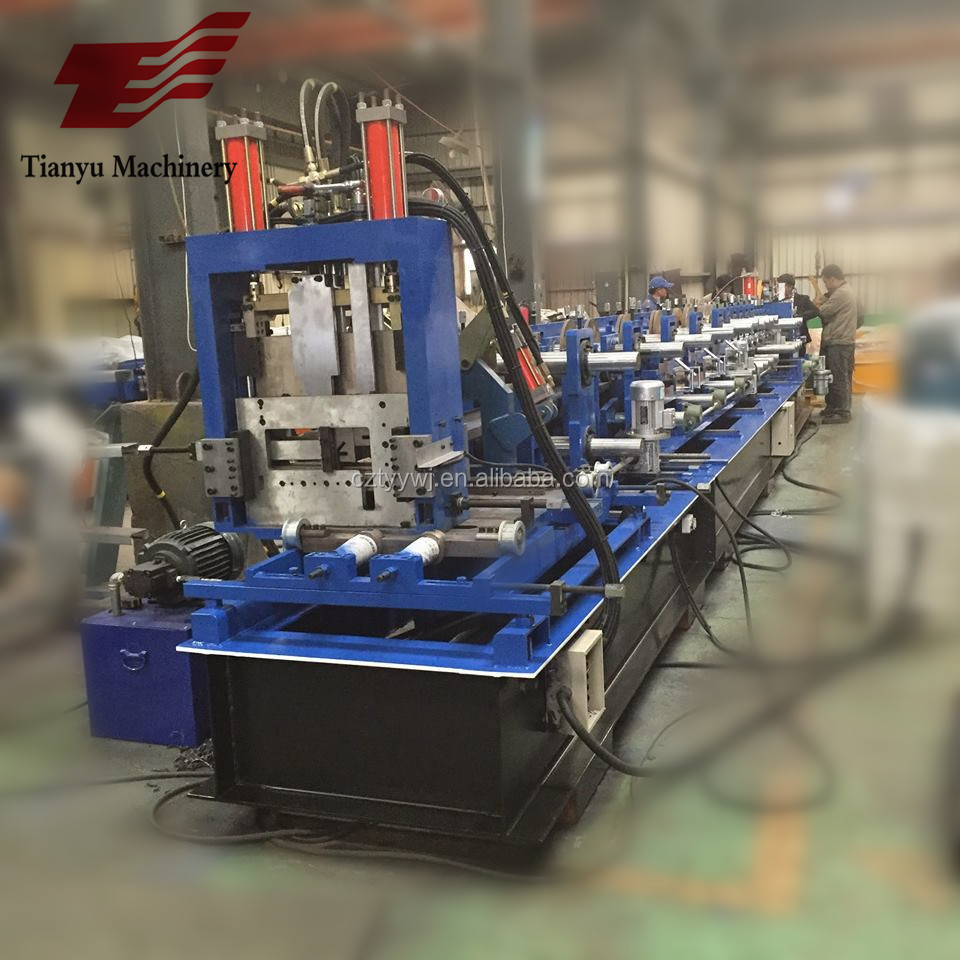

| C/Z Purlin Door Roll Forming Machine | ||
| 1.Raw material | Thickness | 1.5-3mm |
| 2.Decoiler | Operation | automatic |
| Weight apacity | 5-9t | |
| 3.Main body | Roller station | 12-15 rows |
| Diameter of shaft | 80-120mm | |
| Material of rollers | cr12/gcr15 | |
| Material of shaft | cr12/gcr15 | |
| Frame | 25-30mm | |
| Chain | 1.97-13.28inch | |
| 4.Cutter | Operate | auto |
| Blade Material | cr12mov | |
| 5. Power | Voltage | customized |
| Power | 22kw | |
| 6. Control system | Electric Box | customized/Delta |
| Language | english chinese/customzied | |
| 7. Forming Speed | Forming Speed | 15-20m/min |
